Fuel Off-Road Havoc FC897 Wheels - Matte Black with Gloss Black Lip
Checkout securley with
- Description
- 🛡️ Fitment Advice

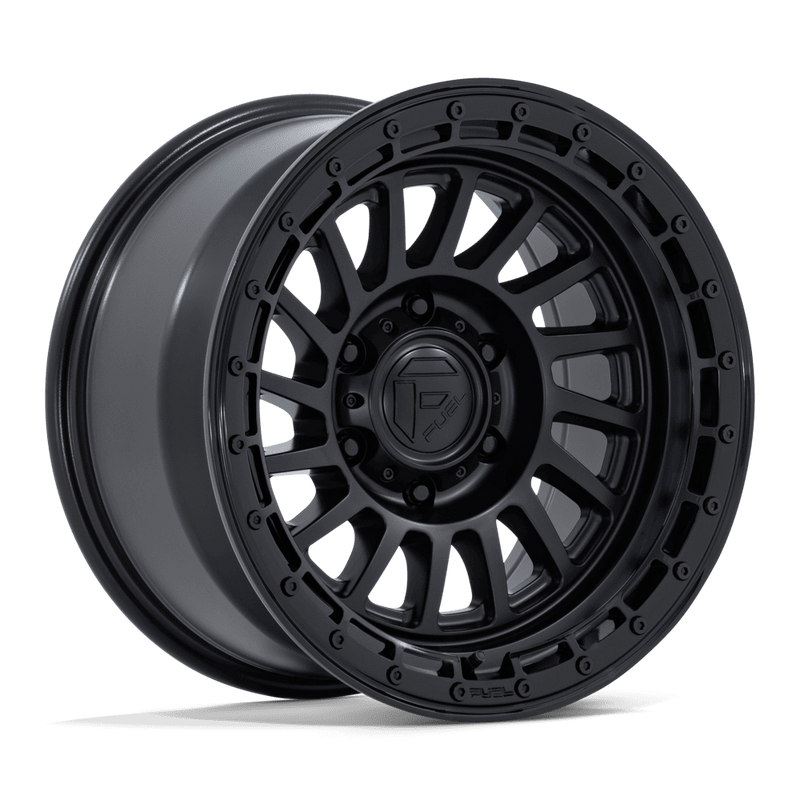

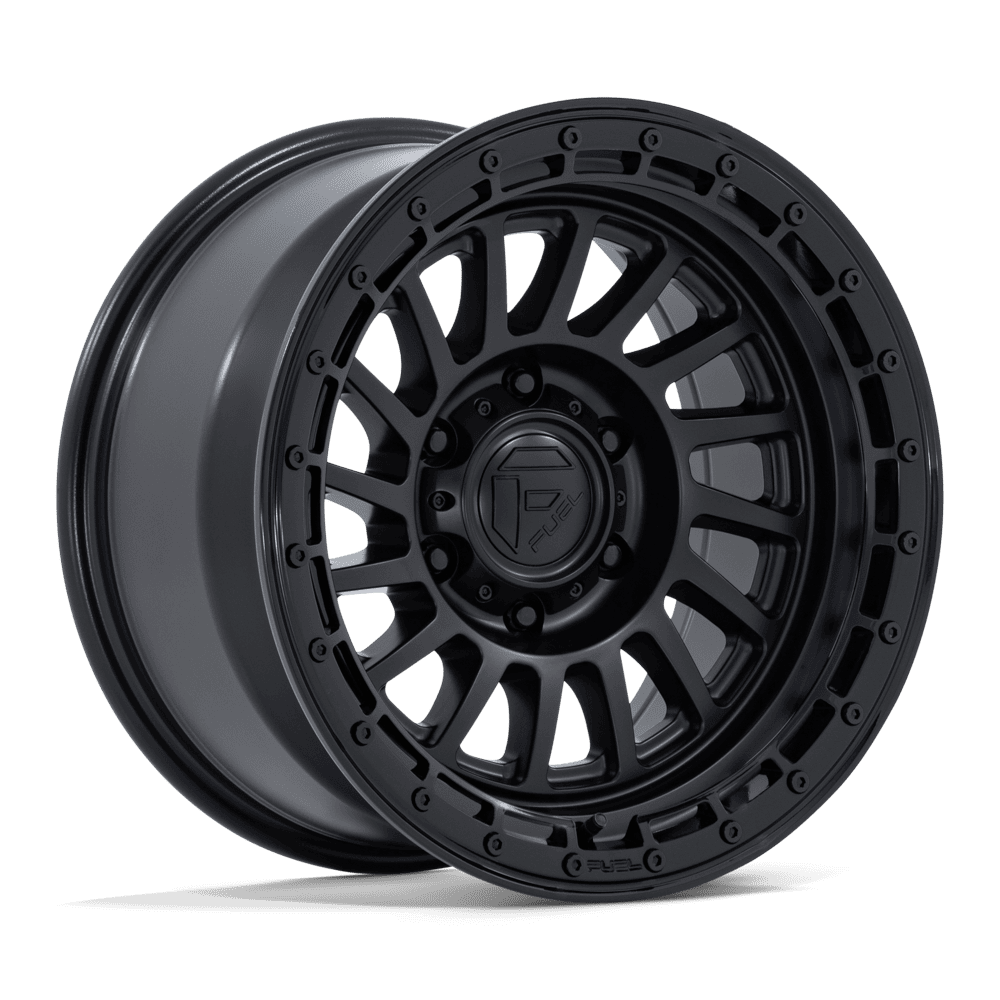

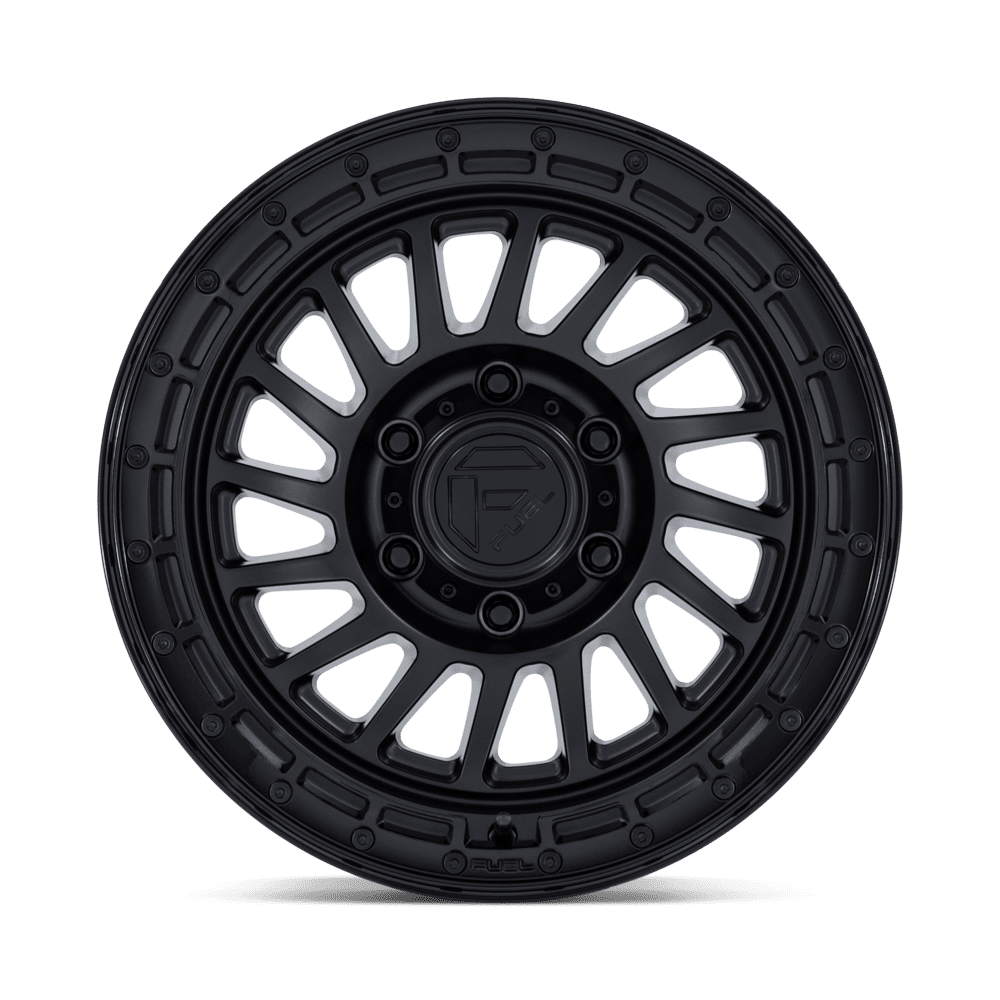

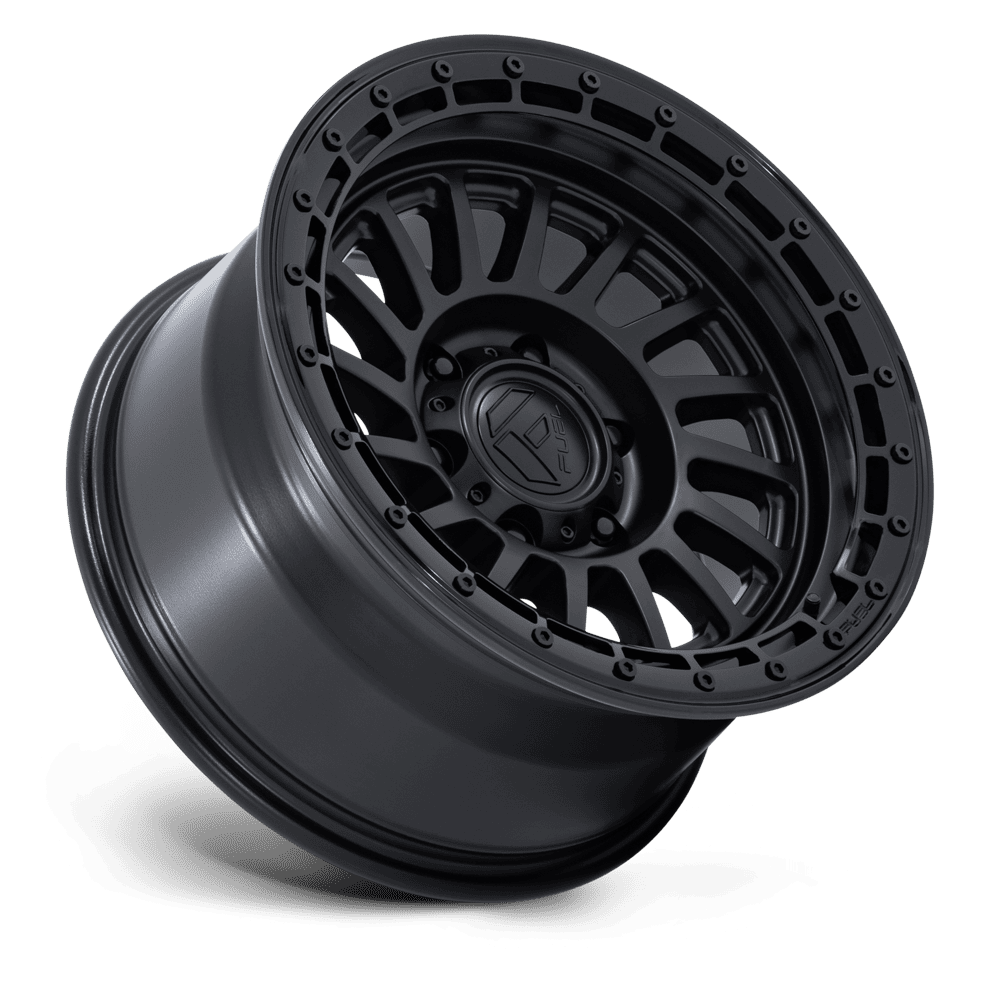

The Fuel Off-Road Havoc FC897 in Matte Black with Gloss Black Lip is a wheel that stands apart from the crowd. Where most aftermarket designs go for symmetry, the Havoc leans into motion — its fresh directional spoke layout looks like it’s already moving, even when you’re parked at camp. A high-spoke count keeps the face lean and purposeful, while the unique lip ring, scupper windows, and exposed hardware give it a raw, purpose-built edge that’s hard to replicate. The matte black face paired with a contrasting gloss black lip adds a refined two-tone finish that’s dark and commanding without being flat. Built for overland adventurers and off-road enthusiasts who want something genuinely different.
One of the most versatile wheels in the Fuel Off-Road range, the Havoc FC897 Matte Black with Gloss Black Lip is available in 17", 18", and 20" diameters across 5, 6, and 8-lug bolt patterns — covering everything from compact 4x4s and SUVs to full-size utes and heavy-duty platforms. Platforms include Hilux, Prado, Landcruiser, Patrol, Ranger, Triton, and heavy-duty 8-lug setups. With offsets ranging from -19mm for a wide, aggressive stance to +20mm for tighter clearance builds, there’s a fitment to suit a broad range of setups.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X9 | 5X127 | 4.53 | -12mm | 71.5 | 31.46 lbs | 2650 |
| 17X9 | 6X135 | 5.04 | 1mm | 87.1 | 30.80 lbs | 2650 |
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 30.14 lbs | 2650 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 30.80 lbs | 2650 |
| 18X9 | 5X127 | 5.04 | 1mm | 71.5 | 33.44 lbs | 2650 |
| 18X9 | 6X135 | 5.04 | 1mm | 87.1 | 33.44 lbs | 2650 |
| 18X9 | 6X135 | 5.47 | 12mm | 87.1 | 32.78 lbs | 2650 |
| 18X9 | 6X139.7 | 5.47 | 12mm | 106.1 | 32.12 lbs | 2650 |
| 18X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 32.78 lbs | 2650 |
| 20X9 | 5X127 | 5.04 | 1mm | 71.5 | 38.50 lbs | 2650 |
| 20X9 | 6X135 | 5.79 | 20mm | 87.1 | 38.06 lbs | 2650 |
| 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 38.28 lbs | 2650 |
| 20X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 37.40 lbs | 2650 |
| 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 37.62 lbs | 2650 |
Key Features
- Matte Black with Gloss Black Lip finish — a matte black face paired with a contrasting gloss black lip delivers a refined two-tone look that’s dark and commanding without being flat
- Directional multi-spoke design with lip ring, scupper windows, and exposed hardware — a genuinely distinctive aesthetic that sets the Havoc FC897 apart from standard aftermarket designs
- Cast aluminium alloy construction — tough and reliable, built to handle real off-road conditions without compromising street presence
- 17", 18" and 20" across 5, 6, and 8-lug fitments — one of the widest fitment ranges in the Fuel Off-Road lineup, covering compact 4x4s through to heavy-duty 8-lug platforms
- Offset range -19mm to +20mm — wide enough to suit builds from aggressive wide stances to tighter clearance configurations
Need Help Choosing? Our Team Is Online Now.
Not sure which size, bolt pattern, or offset suits your build? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping straight to your door. We also offer flexible payment options including Afterpay, Zip, and all major credit cards — so you can get the right wheels on your rig without the wait.
