Fuel Off-Road FOXHOUND FC910 Wheels - Gloss Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice

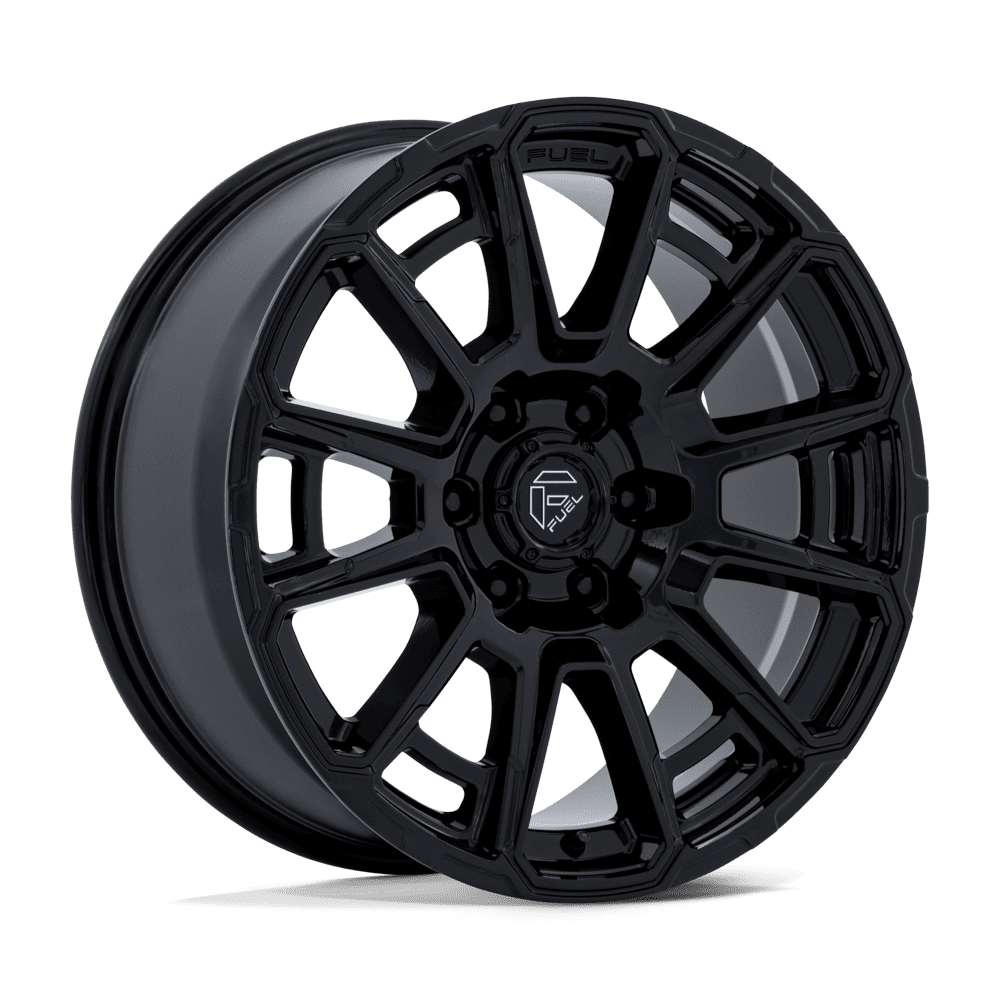

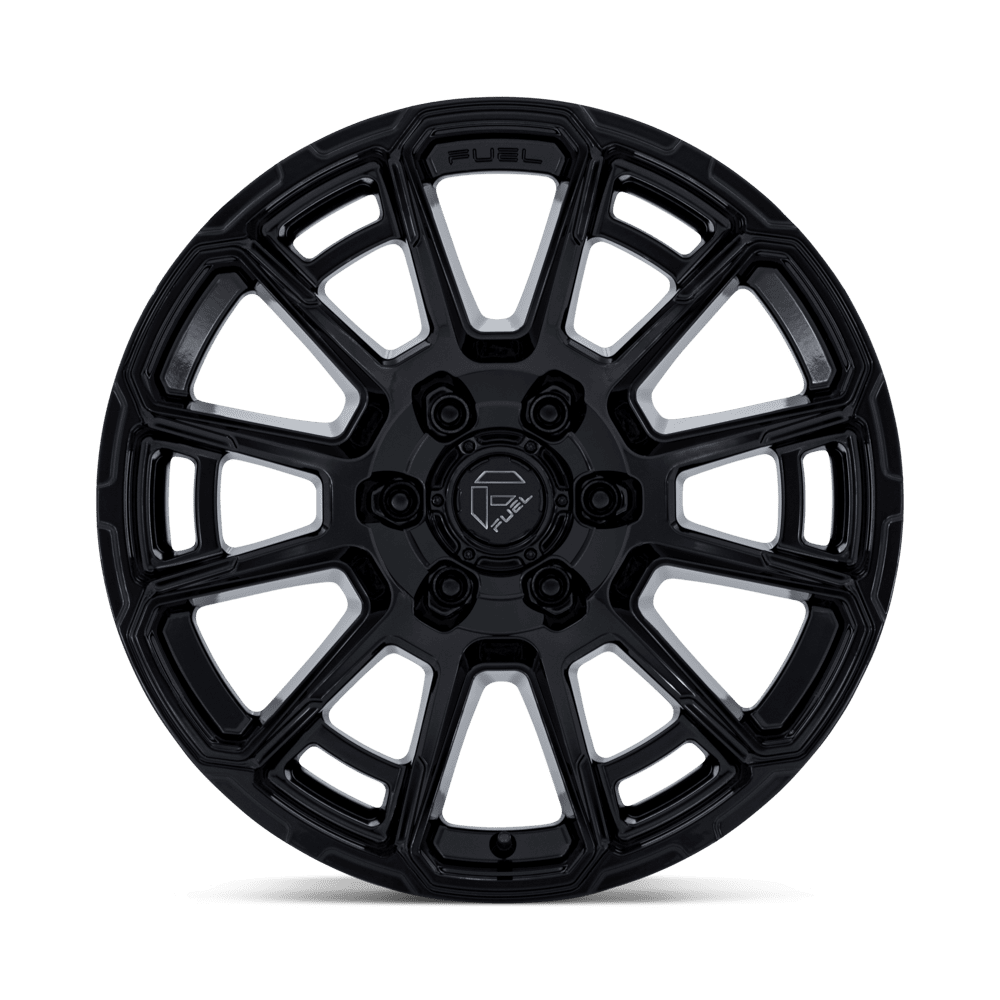

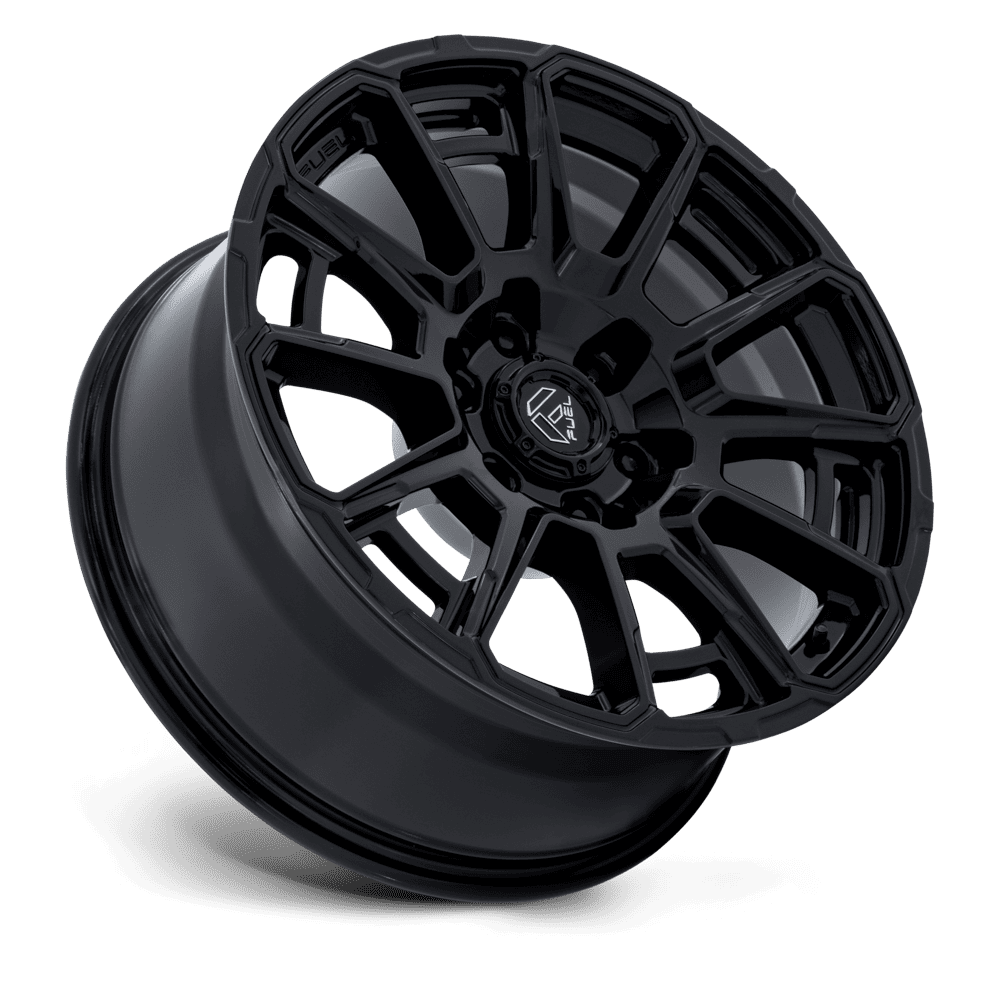

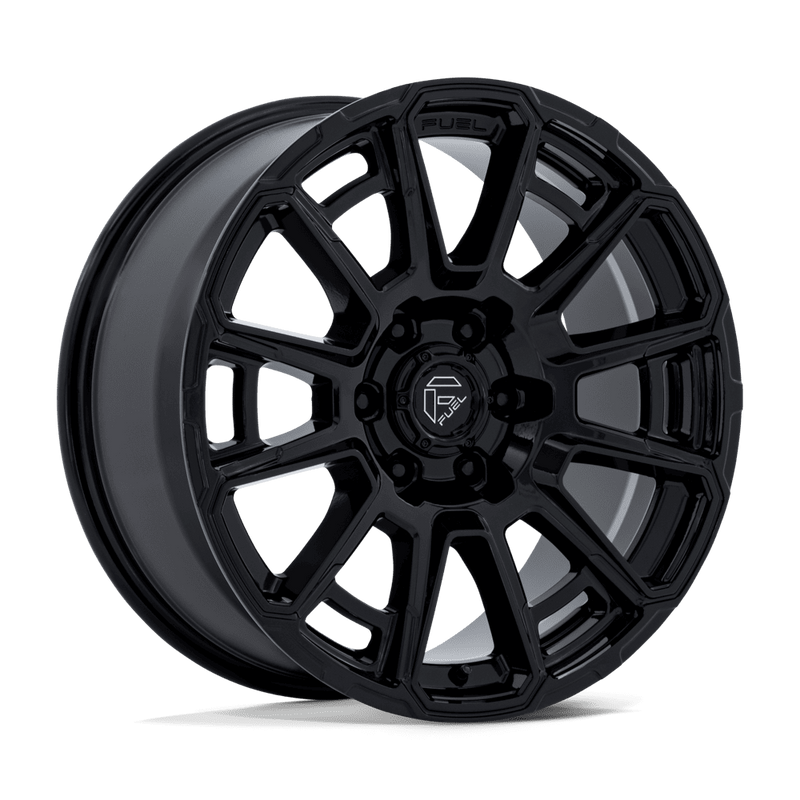

The Fuel Off-Road Foxhound FC910 in Gloss Black is a bold, aggressive wheel built for 4x4s and utes that mean business. The Foxhound’s deep concave profile and distinctive coffin-style spoke windows give it a look that’s immediately recognisable — sharp, purposeful, and ready for the trail or the street. The gloss black finish keeps things clean and commanding, complementing lifted builds without competing with them. Cast aluminium construction means it’s tough enough to handle real off-road use and easy to clean up after.
Available in 17", 18", 20", and 22" diameters across 6 and 8-lug bolt patterns, the Foxhound FC910 Gloss Black suits a wide range of Australian 4x4 platforms including Hilux, Prado, Landcruiser, Patrol, and heavy-duty 8-lug setups. The offset range is one of the widest in the range — from -44mm on the 22x12 for an ultra-wide, slammed stance to +1mm for tighter clearance builds — making it a genuine option for everything from a mild street build to a serious lifted rig.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X9 | 6X135 | 4.53 | -12mm | 87.1 | 31.70 lbs | 2500 |
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 31.70 lbs | 2500 |
| 18X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 33.50 lbs | 2500 |
| 18X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 33.50 lbs | 2500 |
| 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 37.50 lbs | 2500 |
| 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 37.50 lbs | 2500 |
| 20X9 | 8X165.1 | 5.79 | 20mm | 125.1 | 42.50 lbs | 3700 |
| 20X9 | 8X165.1 | 5.04 | 1mm | 125.1 | 43.20 lbs | 3700 |
| 20X9 | 8X170 | 5.79 | 20mm | 125.1 | 42.50 lbs | 3700 |
| 20X9 | 8X170 | 5.04 | 1mm | 125.1 | 43.20 lbs | 3700 |
| 20X9 | 8X180 | 5.79 | 20mm | 124.2 | 42.50 lbs | 3700 |
| 20X9 | 8X180 | 5.04 | 1mm | 124.2 | 43.20 lbs | 3700 |
| 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 39.20 lbs | 2500 |
| 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 39.20 lbs | 2500 |
| 20X10 | 8X165.1 | 4.79 | -18mm | 125.1 | 45.42 lbs | 3700 |
| 20X10 | 8X170 | 4.79 | -18mm | 125.1 | 45.42 lbs | 3700 |
| 20X10 | 8X180 | 4.79 | -18mm | 124.2 | 45.42 lbs | 3700 |
| 22X10 | 6X135 | 4.79 | -18mm | 87.1 | 43.20 lbs | 2500 |
| 22X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 43.20 lbs | 2500 |
| 22X12 | 6X135 | 4.77 | -44mm | 87.1 | 46.30 lbs | 2500 |
| 22X12 | 6X139.7 | 4.77 | -44mm | 106.1 | 46.30 lbs | 2500 |
| 22X12 | 8X165.1 | 4.77 | -44mm | 125.1 | 51.40 lbs | 3700 |
| 22X12 | 8X170 | 4.77 | -44mm | 125.1 | 51.40 lbs | 3700 |
| 22X12 | 8X180 | 4.77 | -44mm | 124.2 | 51.40 lbs | 3700 |
Key Features
- Gloss Black finish — a sharp, commanding coating that complements lifted 4WDs, heavy-duty utes, and serious off-road rigs without competing with the build
- Deep concave profile with coffin-style spoke windows — a distinctive, aggressive design that’s immediately recognisable and looks right at home on a lifted rig
- Cast aluminium construction — tough enough for real off-road use and easy to clean up after a day on the tracks
- 17", 18", 20" and 22" across 6 and 8-lug fitments — suits Hilux, Prado, Landcruiser, Patrol, and heavy-duty 8-lug platforms
- Exceptional offset range — from -44mm on the 22x12 for an ultra-wide stance to +1mm for tighter clearance builds, covering everything from mild street builds to serious lifted rigs
Need Help Choosing? Our Team Is Online Now.
Not sure which size, bolt pattern, or offset suits your build? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping straight to your door. We also offer flexible payment options including Afterpay, Zip, and all major credit cards — so you can get the right wheels on your rig without the wait.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
