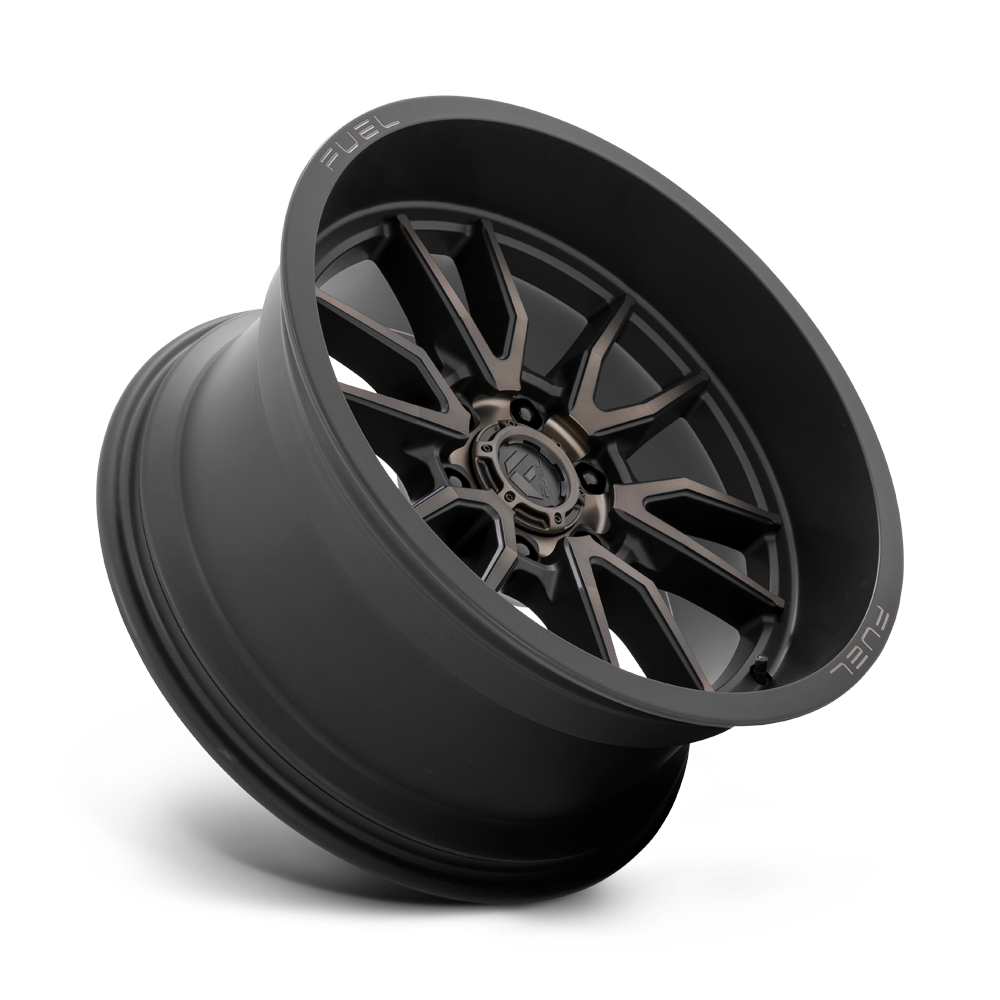

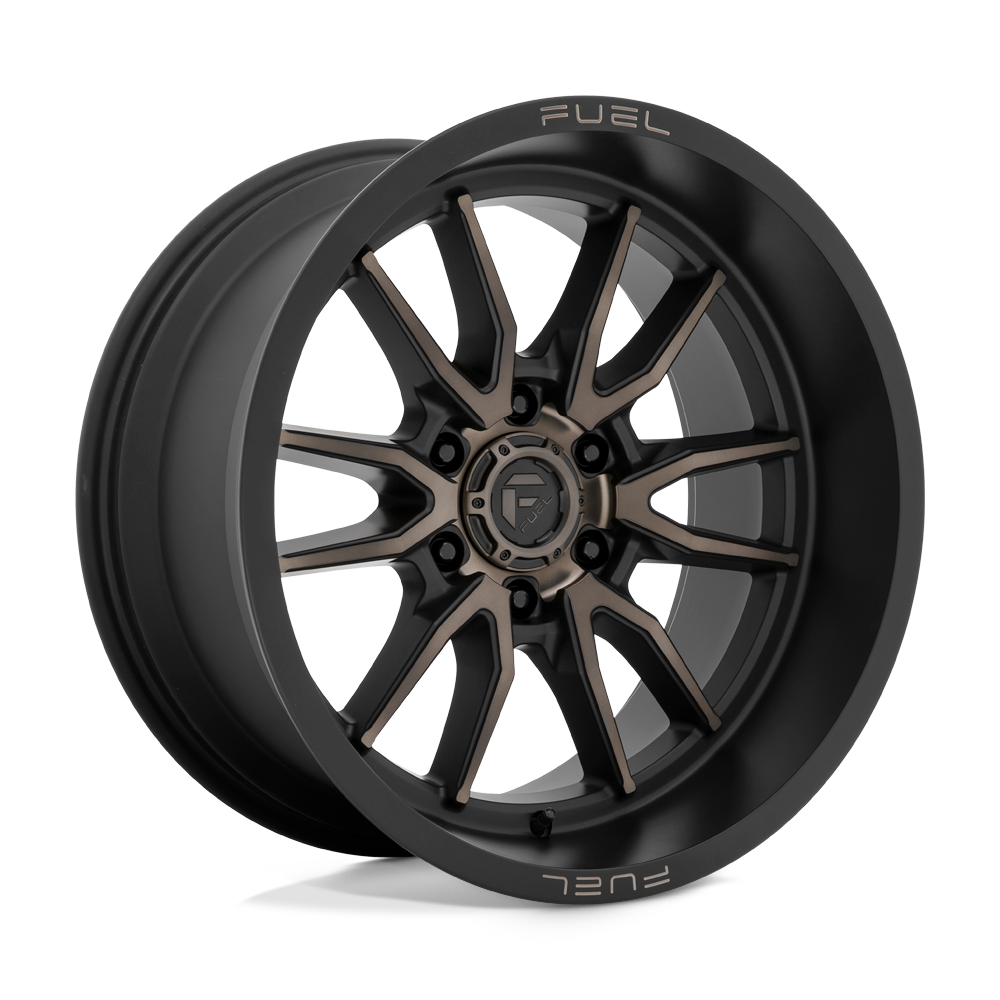

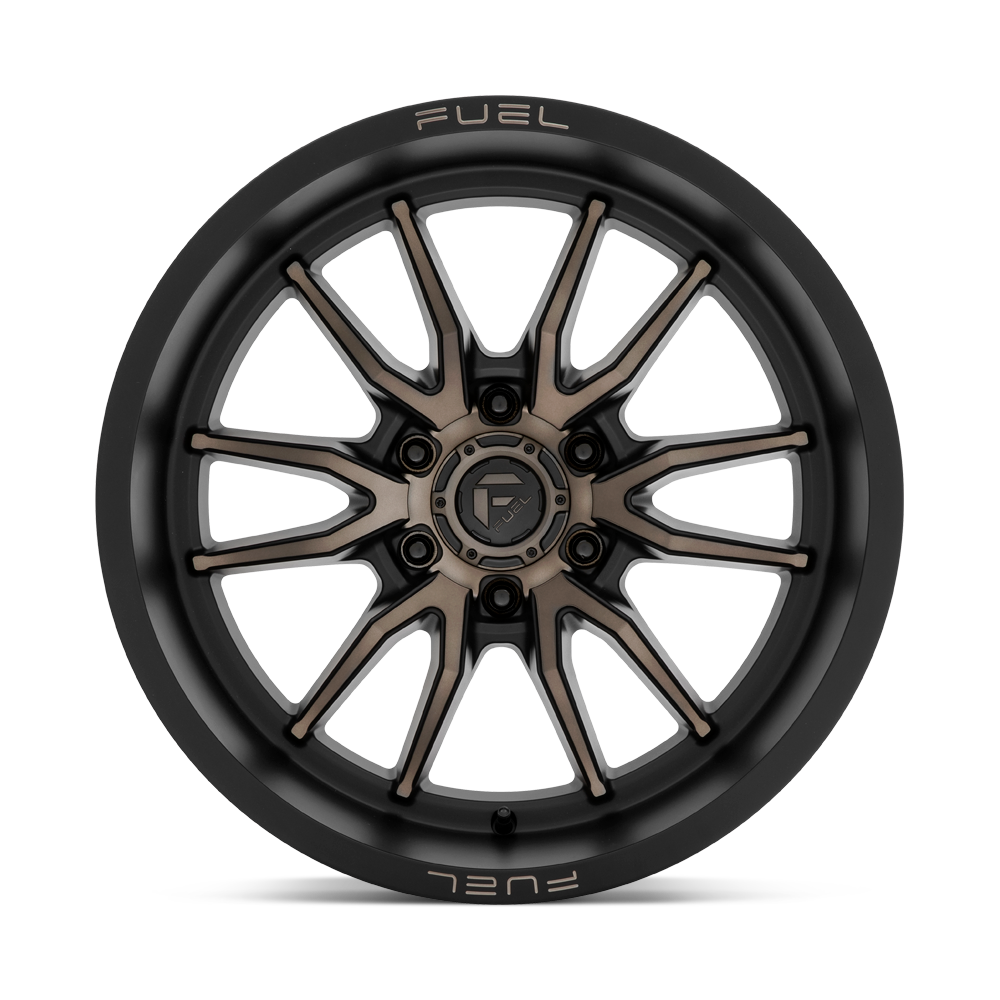

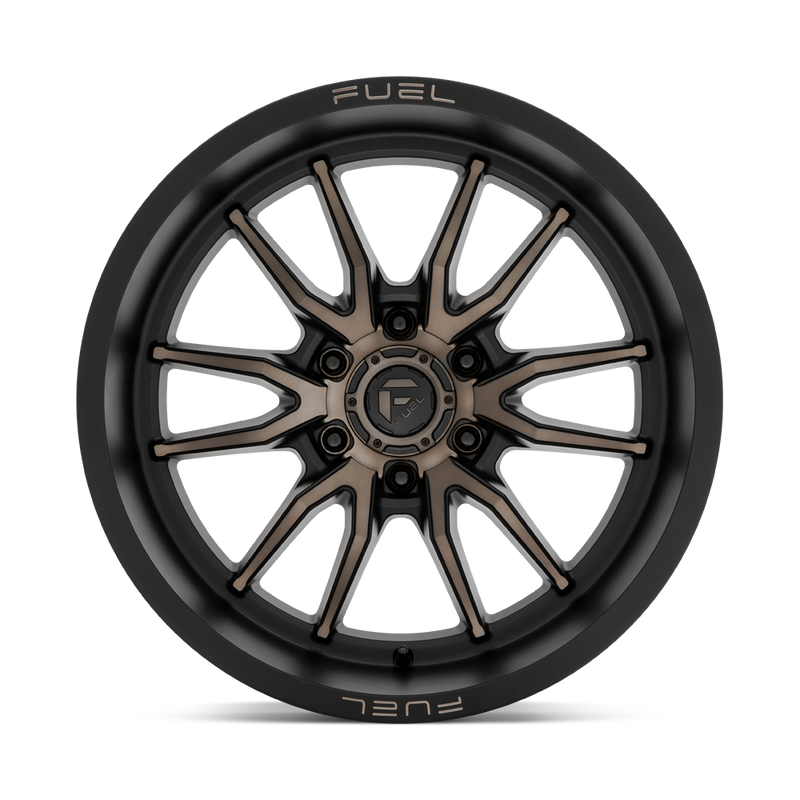

The Fuel Off-Road Clash D762 in Matte Black Double Dark Tint is built for 4x4 owners who want serious attitude without sacrificing fitment flexibility. The signature multi-spoke "tuning fork" face delivers an aggressive, purposeful look, while the deep lip and dark tinted finish give your build a premium edge that stands out on the trail and off it.
Available in 17", 18", 20", and 22" diameters across 5, 6, and 8-lug bolt patterns, the Clash D760 suits a wide range of platforms — from daily-driven Hilux and Prado builds to serious Patrol, Landcruiser, and heavy-duty ute setups. Offset options span from -44mm for a wide, planted stance through to +1mm for tighter clearance configurations, giving you the flexibility to dial in exactly the right fitment for your rig.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 31.70 lbs | 2500 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 31.70 lbs | 2500 |
| 18X9 | 6X120 | 5.04 | 1mm | 67.06 | 33.50 lbs | 2500 |
| 18X9 | 6X135 | 4.53 | -12mm | 87.1 | 33.50 lbs | 2500 |
| 18X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 33.50 lbs | 2500 |
| 18X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 33.50 lbs | 2500 |
| 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 37.50 lbs | 2500 |
| 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 37.50 lbs | 2500 |
| 20X9 | 8X170 | 5.04 | 1mm | 125.1 | 43.20 lbs | 3700 |
| 20X9 | 8X180 | 5.04 | 1mm | 124.2 | 43.20 lbs | 3700 |
| 20X9 | 8X180 | 5.79 | 20mm | 124.2 | 42.50 lbs | 3700 |
| 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 39.20 lbs | 2500 |
| 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 39.20 lbs | 2500 |
| 20X10 | 8X170 | 4.79 | -18mm | 125.1 | 45.42 lbs | 3700 |
| 20X10 | 8X180 | 4.79 | -18mm | 124.2 | 45.42 lbs | 3700 |
| 22X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 43.20 lbs | 2500 |
| 22X12 | 8X170 | 4.77 | -44mm | 125.1 | 51.40 lbs | 3700 |
Key Features
- Matte Black Double Dark Tint finish — a bold, layered dark aesthetic that sets this wheel apart from standard black options
- Signature multi-spoke "tuning fork" face — aggressive, distinctive design engineered to turn heads on the trail and in the car park
- Deep aggressive lip — adds visual depth and a premium, purposeful stance to any lifted build
- Wide fitment range — 17", 18", 20" and 22" diameters across 5, 6, and 8-lug bolt patterns suit Hilux, Prado, Patrol, Landcruiser, and heavy-duty platforms
- Flexible offset options — from -44mm for a wide, planted look to +1mm for tighter clearance builds
Need Help Choosing? Our Team Is Online Now.
Not sure which size, bolt pattern, or offset suits your build? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping straight to your door. We also offer flexible payment options including Afterpay, Zip, and all major credit cards — so you can get the right wheels on your rig without the wait.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
