Fuel Off-Road CIRCUIT Wheels - Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice

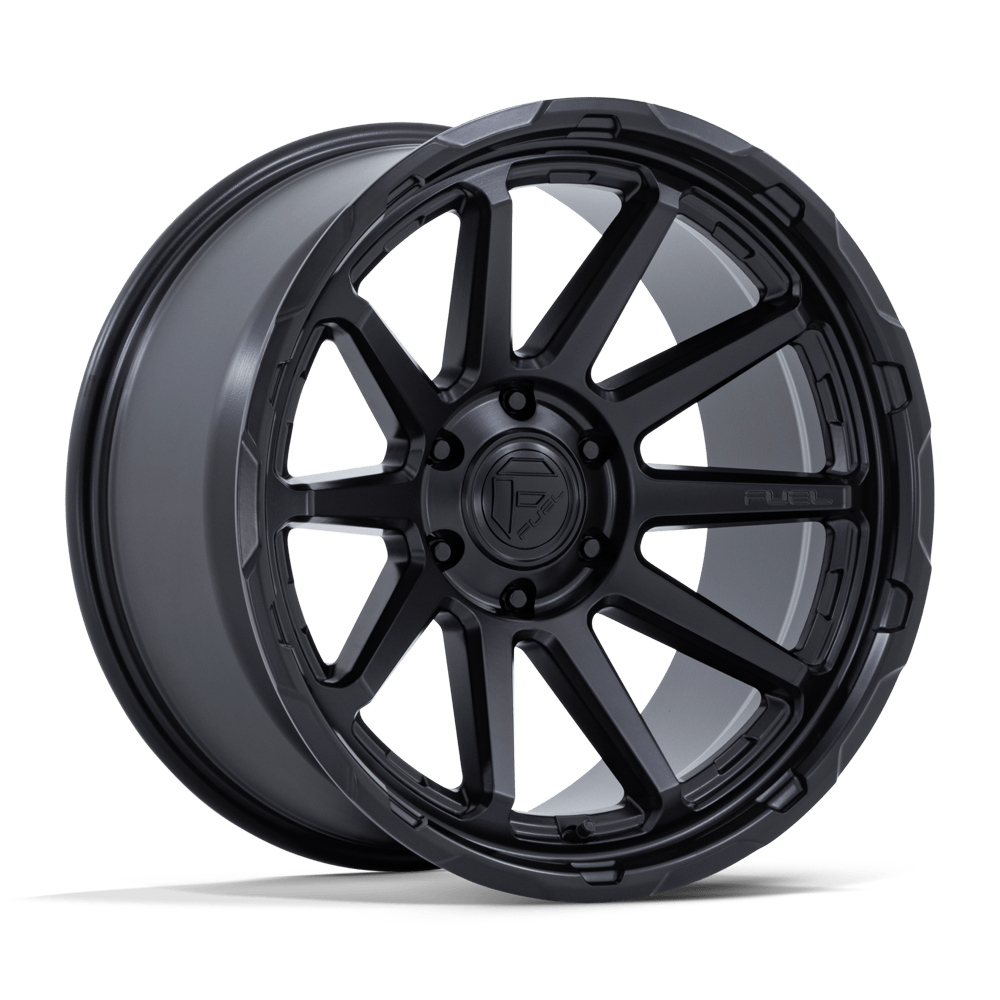

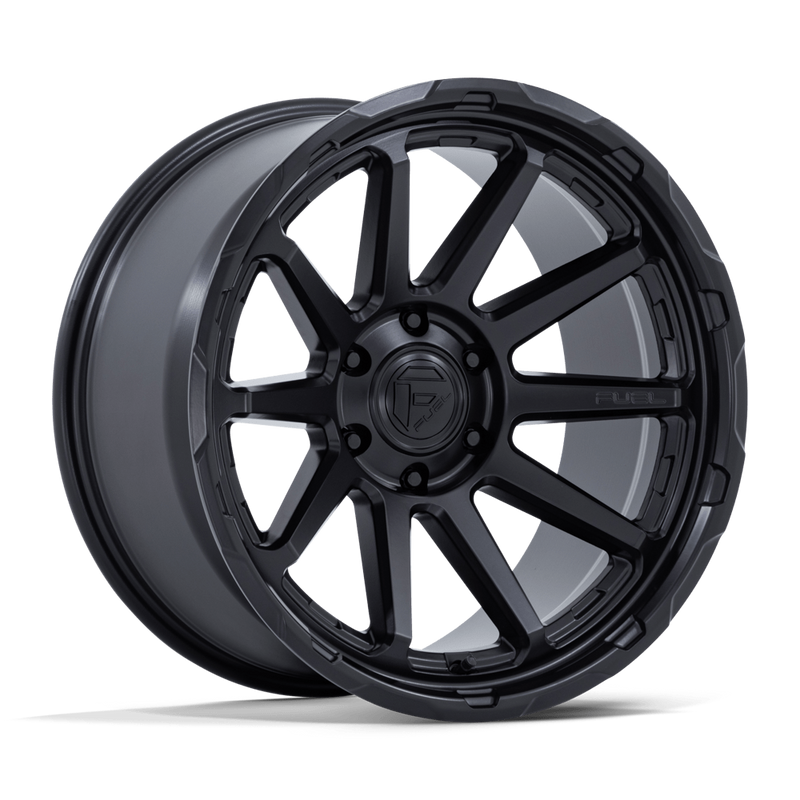

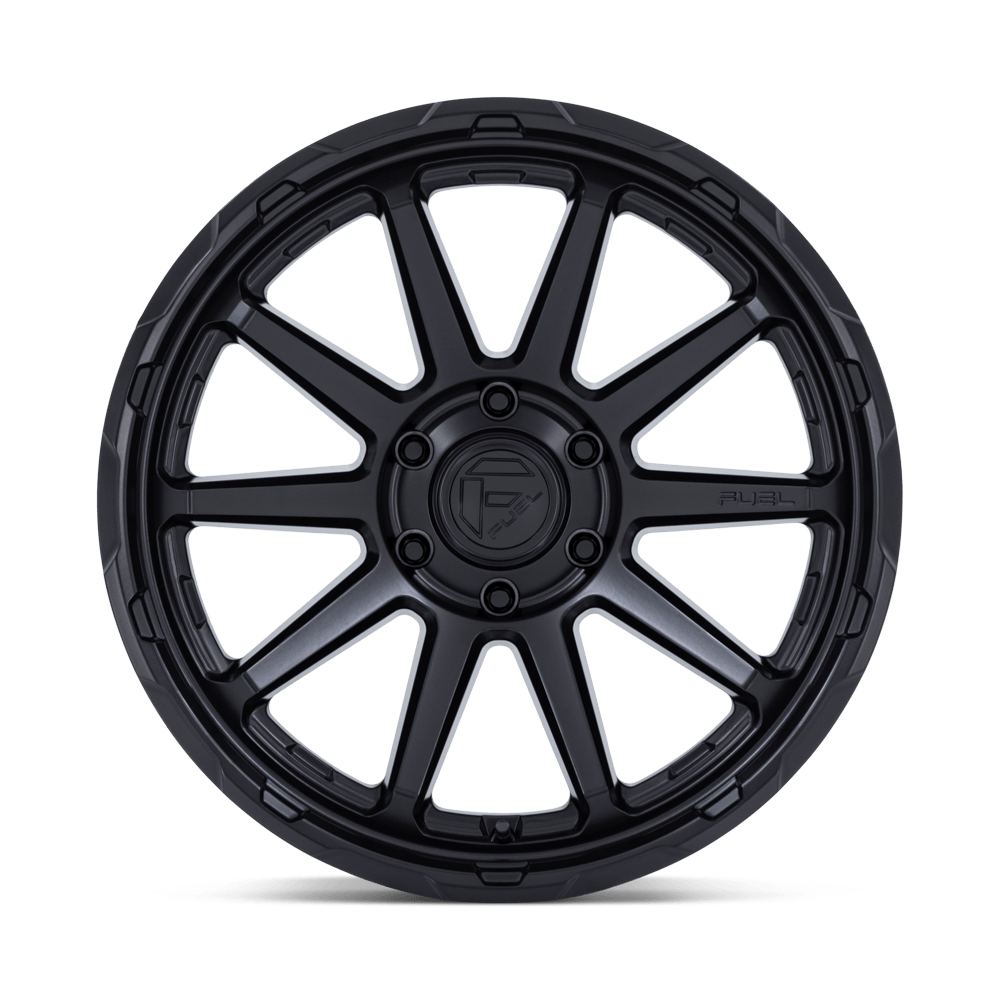

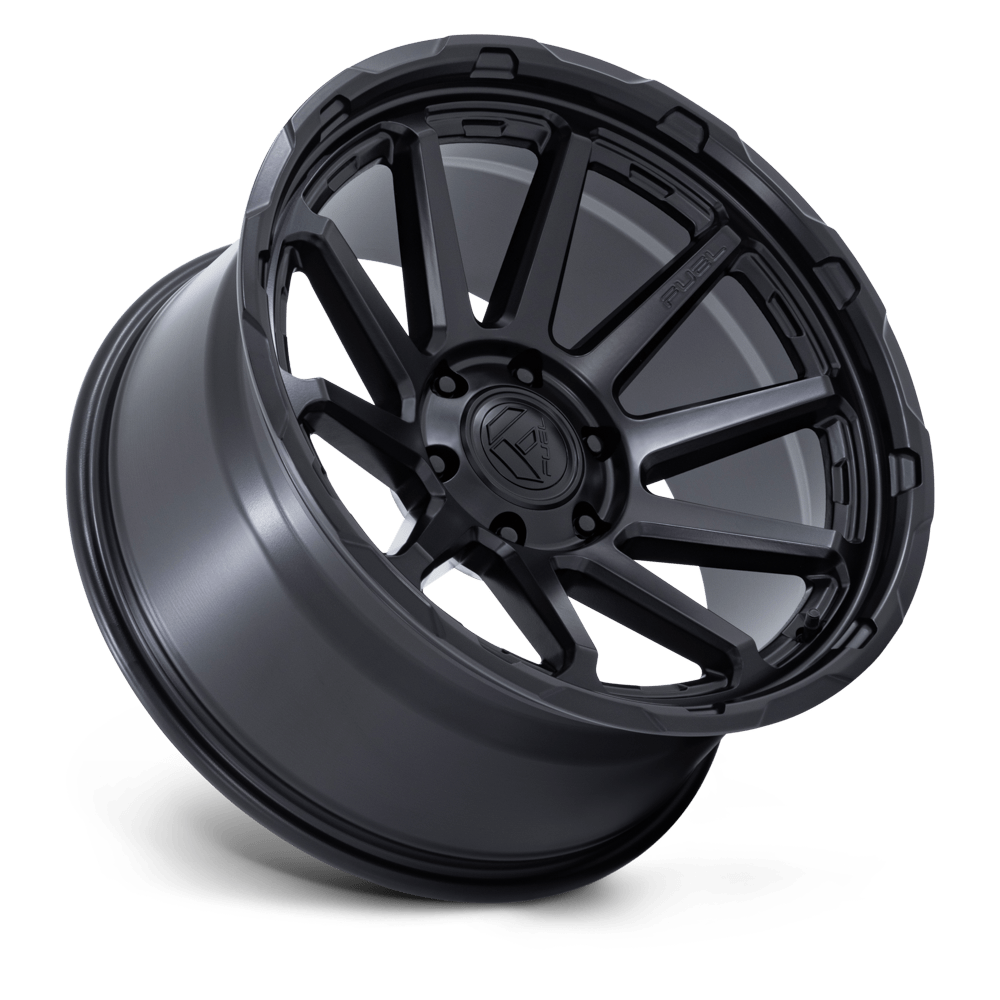

The Fuel Off-Road Circuit in Matte Black is a clean, no-nonsense wheel that delivers bold presence without overcomplicating the design. The Circuit’s 10-spoke layout with wide open windows gives it a strong, purposeful look that works equally well on a lifted 4x4 heading off-road or a ute doing daily duties. The matte black finish keeps things dark and understated — a versatile choice that suits virtually any build colour or style.
Available in 17", 18", 20" and 22" diameters across 5, 6, and 8-lug bolt patterns, the Circuit Matte Black suits a wide range of Australian 4x4 and ute platforms including Hilux, Prado, Landcruiser, Patrol, and heavy-duty 8-lug setups. With offsets from -18mm for a wide, planted stance to +10mm for tighter clearance configurations, there’s a fitment to suit a broad range of builds.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 29.70 lbs | 2650 |
| 17X9 | 5X127 | 5.04 | 1mm | 71.5 | 30.80 lbs | 2650 |
| 17X9 | 5X127 | 4.53 | -12mm | 71.5 | 31.68 lbs | 2650 |
| 17X9 | 6X135 | 5.04 | 1mm | 87.1 | 30.58 lbs | 2650 |
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 30.14 lbs | 2650 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 31.02 lbs | 2650 |
| 18X9 | 5X127 | 5.04 | 1mm | 71.5 | 33.66 lbs | 2650 |
| 18X9 | 5X127 | 5.79 | 20mm | 71.5 | 33.00 lbs | 2650 |
| 18X9 | 6X135 | 5.04 | 1mm | 87.1 | 33.44 lbs | 2650 |
| 18X9 | 6X135 | 5.79 | 20mm | 87.1 | 32.78 lbs | 2650 |
| 18X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 32.56 lbs | 2650 |
| 18X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 33.22 lbs | 2650 |
| 20X9 | 5X127 | 5.04 | 1mm | 71.5 | 36.96 lbs | 2650 |
| 20X9 | 5X127 | 5.79 | 20mm | 71.5 | 36.52 lbs | 2650 |
| 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 37.18 lbs | 2650 |
| 20X9 | 6X135 | 5.79 | 20mm | 87.1 | 36.74 lbs | 2650 |
| 20X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 36.08 lbs | 2650 |
| 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 36.74 lbs | 2650 |
| 20X10 | 5X127 | 4.79 | -18mm | 71.5 | 36.74 lbs | 2650 |
| 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 36.96 lbs | 2650 |
| 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 36.30 lbs | 2650 |
| 22X9 | 5X127 | 5.04 | 1mm | 71.5 | 36.52 lbs | 2650 |
| 22X9 | 6X135 | 5.04 | 1mm | 87.1 | 37.18 lbs | 2650 |
| 22X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 36.96 lbs | 2650 |
Key Features
- Matte Black finish — a dark, flat coating that’s versatile, tough-looking, and pairs with virtually any build colour or style
- Clean 10-spoke design with wide open windows — a bold, purposeful spoke layout that delivers strong visual presence without unnecessary complexity
- Solid construction — built to handle both daily driving and demanding off-road use with confidence
- 17", 18", 20" and 22" across 5, 6, and 8-lug fitments — suits Hilux, Prado, Landcruiser, Patrol, and heavy-duty 8-lug platforms
- Offset range -18mm to +10mm — engineered for builds that want a wide, planted stance or a tighter clearance configuration
Need Help Choosing? Our Team Is Online Now.
Not sure which size, bolt pattern, or offset suits your build? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping straight to your door. We also offer flexible payment options including Afterpay, Zip, and all major credit cards — so you can get the right wheels on your rig without the wait.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
