Direction Plus PreLine-Plus Pre-Filter Kit - Ford Ranger Raptor Everest PX3 2.0L Bi-Turbo 2018-2019

MANN+HUMMEL PreLine 150 Pre-Filter System - Ford PX3 2.0L Bi-Turbo

Protect your Ford Ranger, Raptor, or Everest's sensitive 2.0L Bi-Turbo diesel injection system from contaminated fuel with the Direction-Plus PreLine-Plus PL664DPK pre-filter kit. Engineered specifically for 2018-2019 PX3 models, this advanced filtration system provides superior water separation and particle removal—essential protection for Australian touring conditions and variable fuel quality.

Intelligent Water Alert System

Unlike standard pre-filters, the PreLine-Plus features an intuitive multi-stage water alert that actively monitors your fuel quality. The system notifies you immediately when water is detected, eliminating guesswork and manual checks—giving you confidence whether you're refuelling in remote areas or running biodiesel blends.

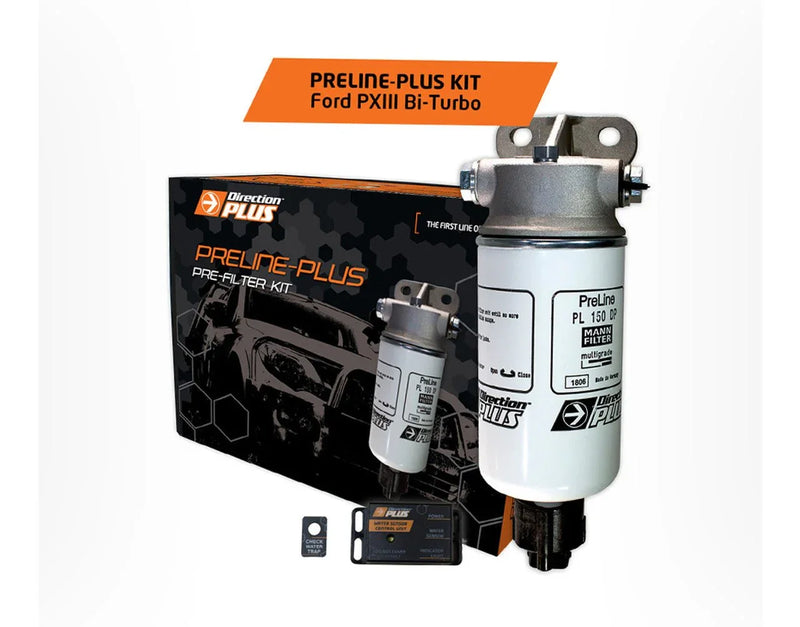

Complete Kit Includes

• MANN+HUMMEL PreLine 150 fuel filtration unit with spin-on filter
• Custom-designed mounting bracket for PX3 chassis
• Premium fuel hoses and straight fittings
• Integrated hand pump (45° position) for priming and water drainage
• Hose clamps, blanking plugs, and thread paste sealant
• Bonus filter removal tool
• Comprehensive installation instructions

Superior Filtration Performance

• 93% water separation efficiency using Multigrade high-performance media
• Reduces contamination upstream of your pre-feed pump in the low-pressure circuit
• Handles flow rates up to 150 litres per hour
• Compatible with diesel fuel (DIN ISO 590), biodiesel blends (5-7% FAME), and kerosene JET-A1
• Integrated water collector with easy-access drain valve
• Robust modular design built for extreme weather and off-road conditions

Technical Specifications

• Head Connection: M16 x 1.5 thread
• Head Dimensions: 163mm length x 76mm diameter
• Filter Dimensions: 98 x 102 x 247mm
• Operating Pressure: 4 bar
• Nominal Flow Rate: 150 L/h
• Kit Weight: 5kg

Fitment: Ford Ranger PX3 2.0L Bi-Turbo (2018-19), Ford Raptor PX3 2.0L Bi-Turbo (2018-19), Ford Everest PX3 2.0L Bi-Turbo (2018-19). Model code: YWNS.

Note: For 2019+ Everest 2.0L TD models, use in conjunction with Provent Kit OS-PROV-36 for complete engine protection.
