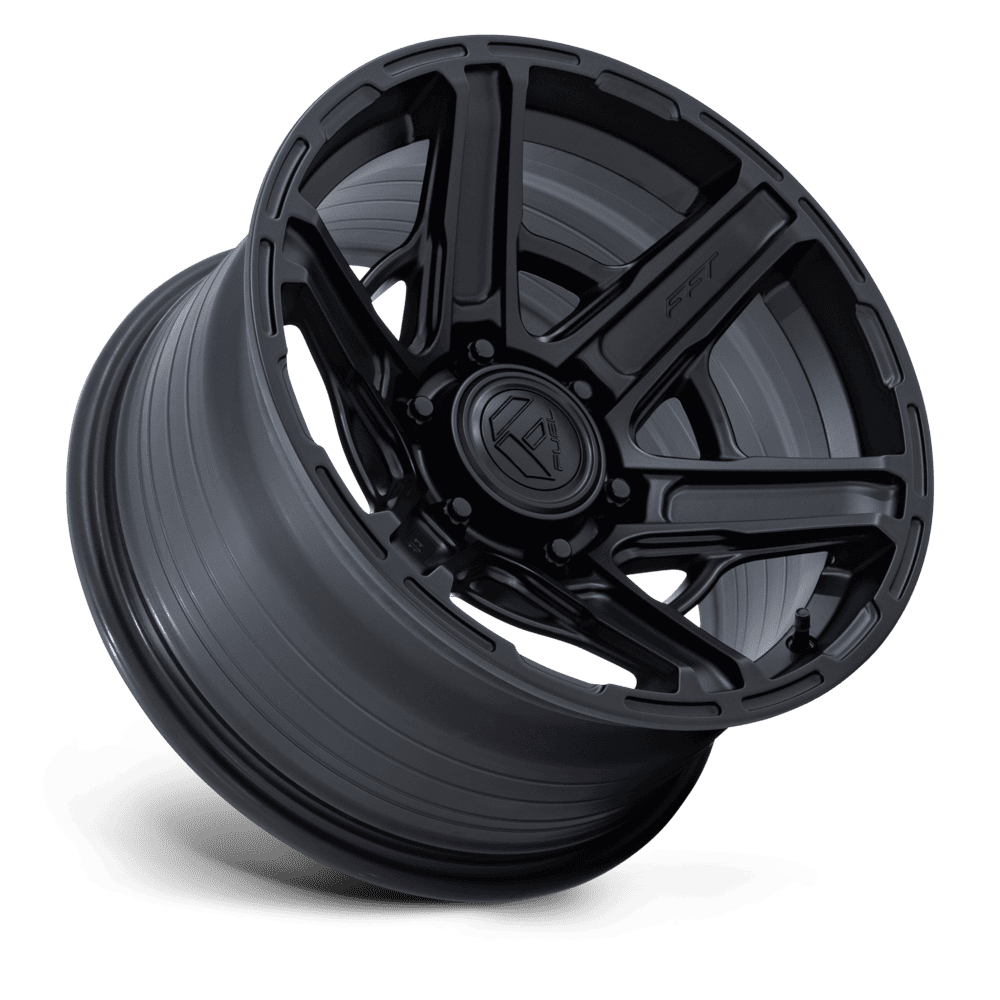

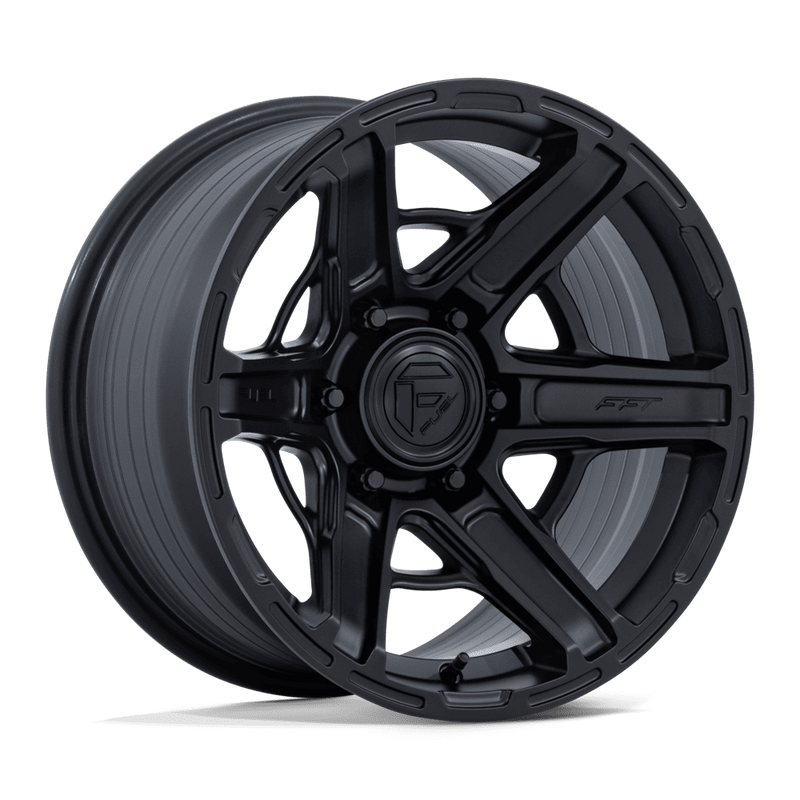

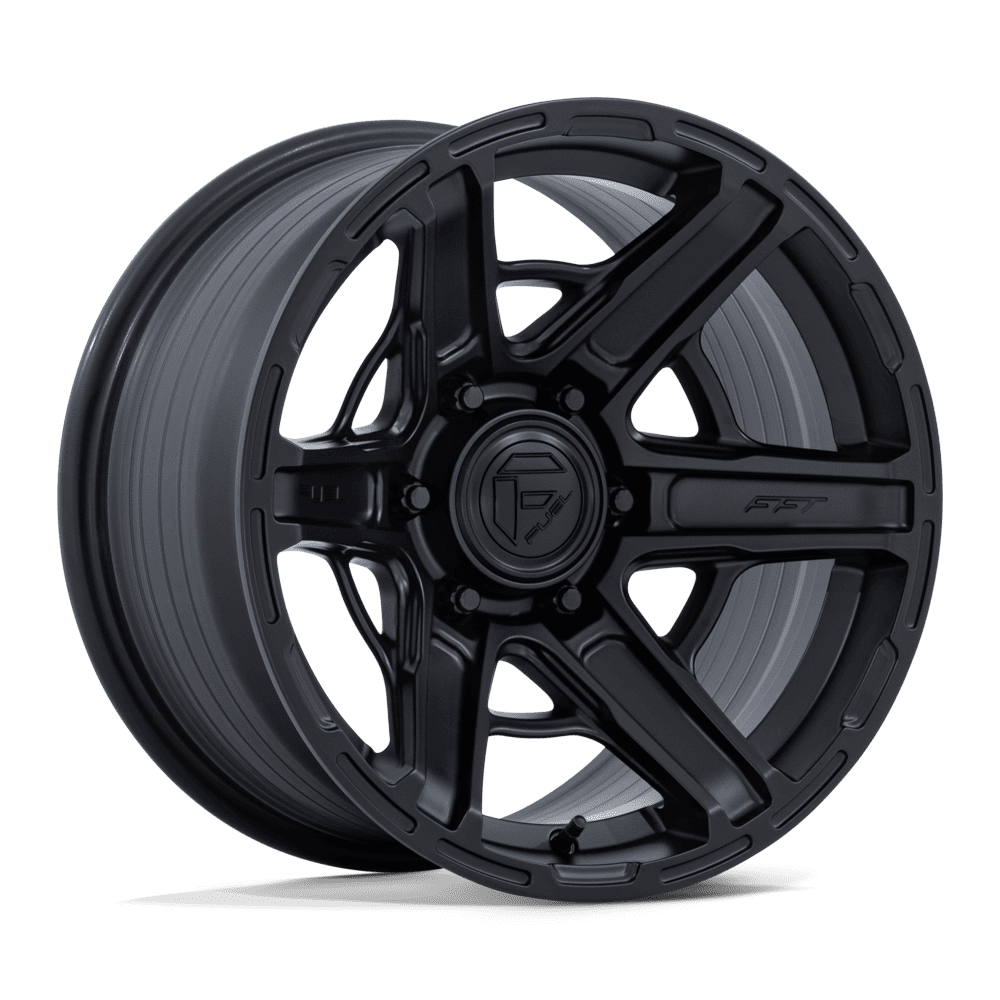

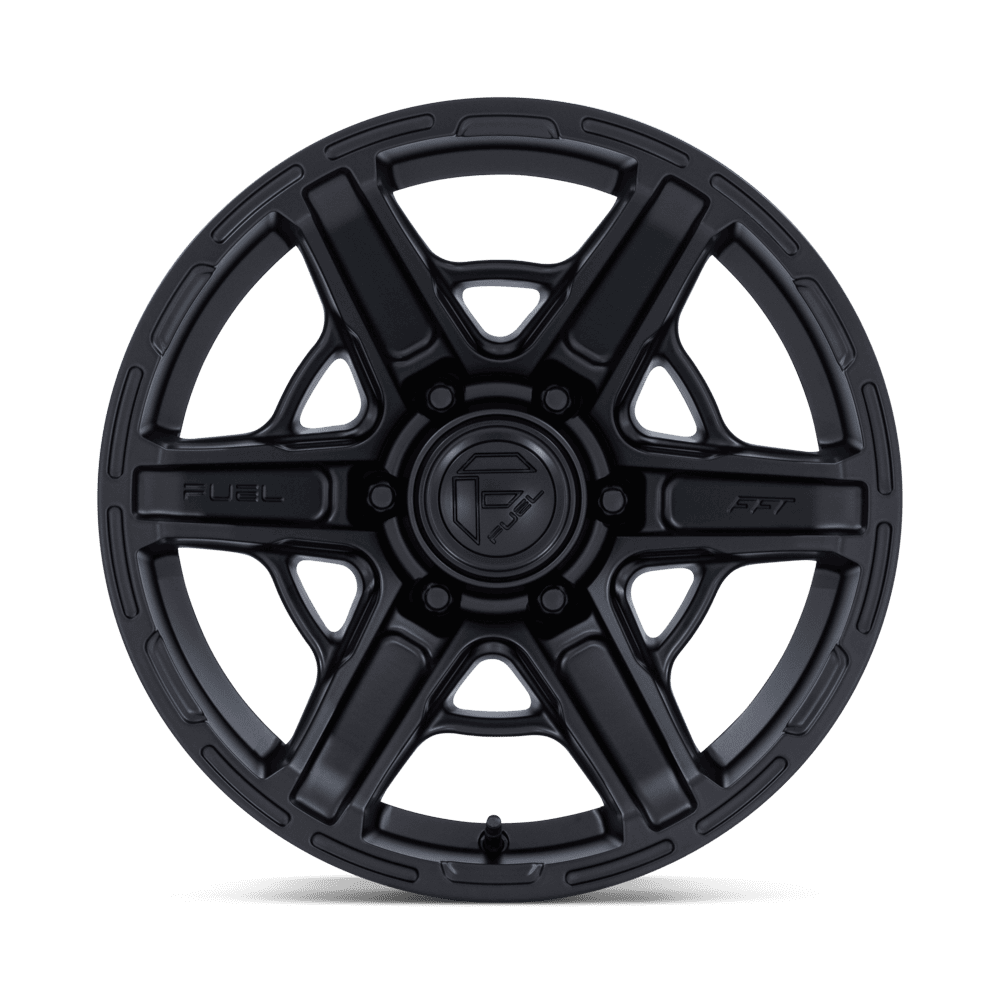

Fuel Off-Road Gambit FC892 Wheels – Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Fuel Off-Road Gambit FC892 is a wheel built for 4WD and truck owners who want serious off-road capability without sacrificing street presence. Constructed using Fuel's Flow Formed Technology, the Gambit is spun under heat and pressure after casting to produce a wheel that's lighter and stronger than a standard cast unit — real-world performance gains without the full forged price tag.
The deep concave multi-spoke design features pocketed and trussed spoke details that give the Gambit a layered, purposeful look — aggressive enough to stand out on the street, tough enough to back it up on the trail. The Matte Black finish keeps it clean and no-nonsense, complementing everything from a lifted Hilux to a Patrol or Prado build. Available in 17" and 20" sizing across 5-lug, 6-lug, and 8-lug bolt patterns.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 6X135 | 4.75 | 0mm | 87.1 | 24.36 lbs | 2650 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 24.36 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 24.65 lbs | 2650 |
| 17X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 25.13 lbs | 2650 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 25.13 lbs | 2650 |
| 20X9 | 6X135 | 5.79 | 20mm | 87.1 | 31.48 lbs | 2650 |
| 20X9 | 6X135 | 5.04 | 1mm | 87.1 | 28.95 lbs | 2650 |
| 20X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 31.48 lbs | 2650 |
| 20X9 | 6X139.7 | 5.04 | 1mm | 106.1 | 28.95 lbs | 2650 |
| 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 31.19 lbs | 2650 |
| 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 31.19 lbs | 2650 |
Key Features
- Flow Formed Technology — heat and pressure forming process delivers a lighter, stronger wheel than standard cast construction
- Deep concave multi-spoke design — pocketed and trussed spoke details for a layered, aggressive look on and off the trail
- Matte Black finish — clean, flat dark look that suits lifted 4WDs, work trucks, and trail rigs alike
- 17" and 20" sizing across 5-lug, 6-lug, and 8-lug bolt patterns — suits popular Australian 4WD platforms including Hilux, Prado, and Patrol
Need Help Choosing? We're Online Now.
Not sure which size or offset suits your build? Our team is available via live online chat to help you get the fitment right the first time. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and all major credit cards — so you can get the right wheels on your rig without the wait.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
