EFS Lift Kit for Volkswagen Amarok 2H (2010 - 2023) (4 Cylinder)
Calculate Your Vehicle Weight
Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.
Lift Kits
Checkout securely with
- Description
- Get A Quote
- ๐ก๏ธ Fitment Advice
The four-cylinder Amarok has been a popular work and touring ute since 2010, and most have spent years carrying tools, gear and trailers. Over time the factory springs settle and the ute loses its stance. This EFS kit lifts the four-cylinder Amarok by around 25mm and brings back firm, level support front and rear.
New front struts and coils are supplied, along with raised rear leaf packs, spring bushes and U-bolts.
Choose Your Shock
Elite
A comfortable all-rounder for daily driving and weekend trips.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Fitted front and rear

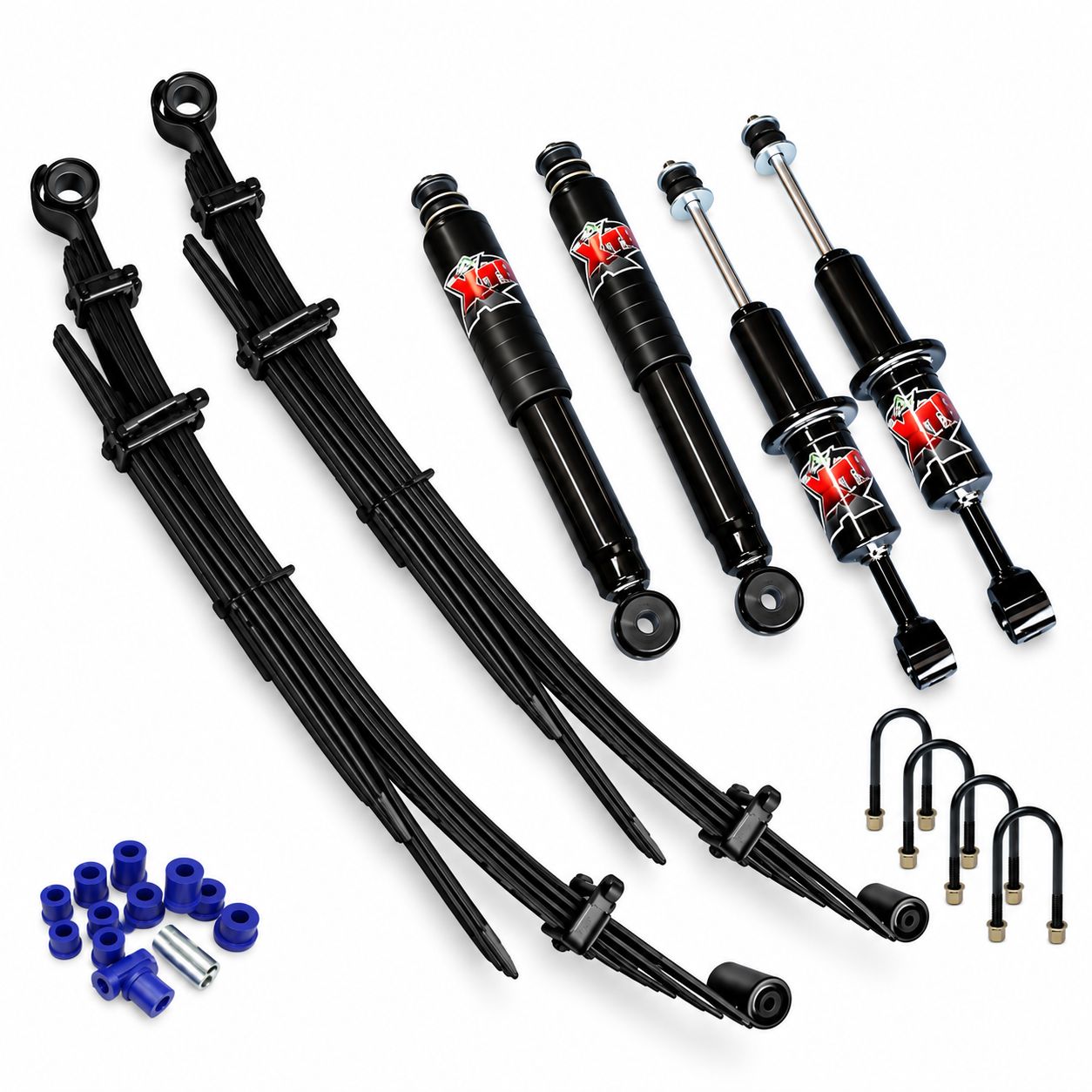

XTR
This option uses Elite front struts with larger XTR rear shocks for extra rear-end control when loaded or towing.
- Elite 35mm front struts
- XTR 40mm twin-tube rear shocks
- More damping capacity at the rear

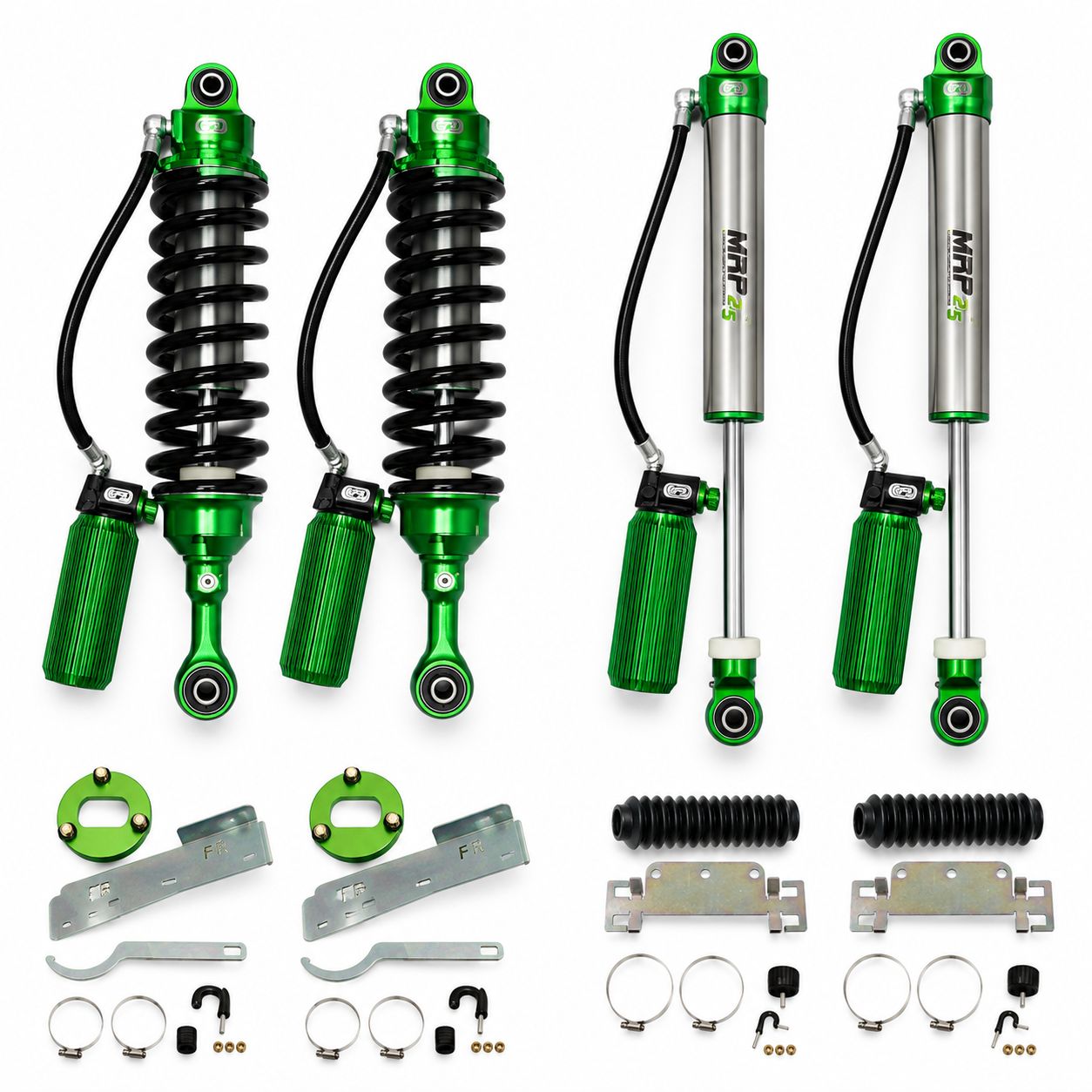

MRP
The adjustable remote-reservoir choice for owners who want to fine-tune their ride.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: factory bumper or light accessories.
- 100-150kgs: a steel bullbar or bar and winch. Rated for a constant 120kg.
Rear Load Options
- 0-150kgs: a comfort-rated rear spring for light everyday use.
- 300kgs: a constant load such as a canopy, toolboxes or touring gear. Rated for a constant 350kg.

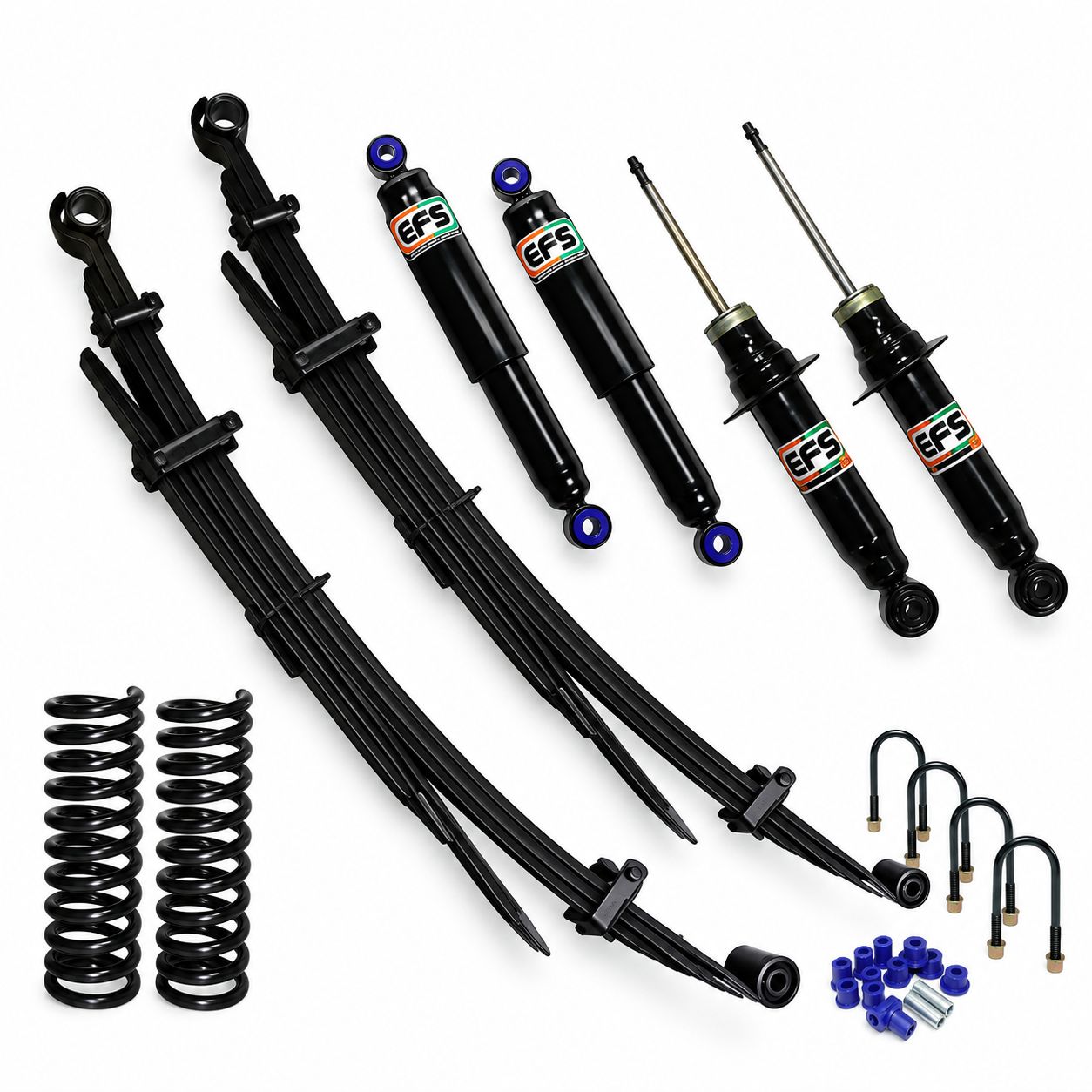

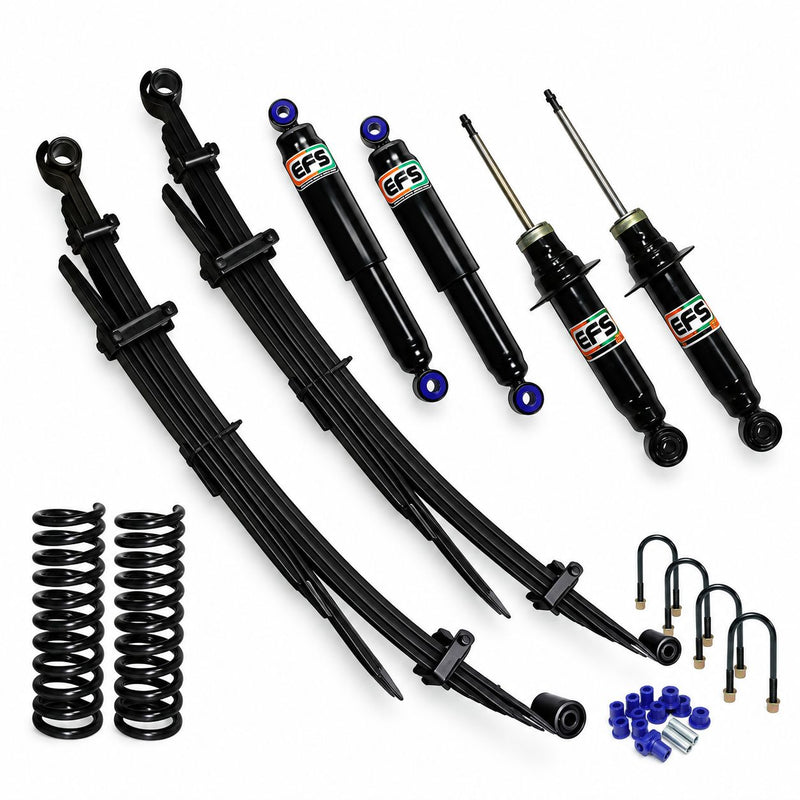

What's Included
- 2 x EFS front struts (Elite or MRP) with coil springs rated to your selected front load
- 2 x EFS rear shock absorbers (Elite, XTR or MRP)
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
Fitment
- Volkswagen Amarok 2H four-cylinder, 2010 to May 2023
- Not suitable for V6 models or the 2023+ Amarok
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
