EFS Lift Kit for Volkswagen Amarok (2023+)
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The 2023-on Amarok shares its platform with the Next Gen Ranger and is a strong, refined dual cab for work and touring. Like most new utes, the factory springs are tuned for comfort and run out of support once a bar, canopy and gear go on. This EFS kit lifts the new Amarok by about 50mm and lets you pick spring rates to suit.
Front struts are supplied pre-assembled, and the rear gets new leaf packs, a bump stop strike plate, bushes, U-bolts and greasable swing shackles and fixed pins.
Choose Your Shock
Elite
A comfortable daily option for an Amarok that commutes and takes weekend trips.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Pre-assembled front struts
XTR
Built for regular touring and towing, with more oil to resist fade on corrugations.
- 40mm bore twin-tube design
- More oil capacity than the Elite
- Pre-assembled front struts
Xtreme
For an Amarok carrying heavy accessories and spending real time off-road.
- 45mm bore twin-tube design
- Largest twin-tube body in the EFS range
- Pre-assembled front struts

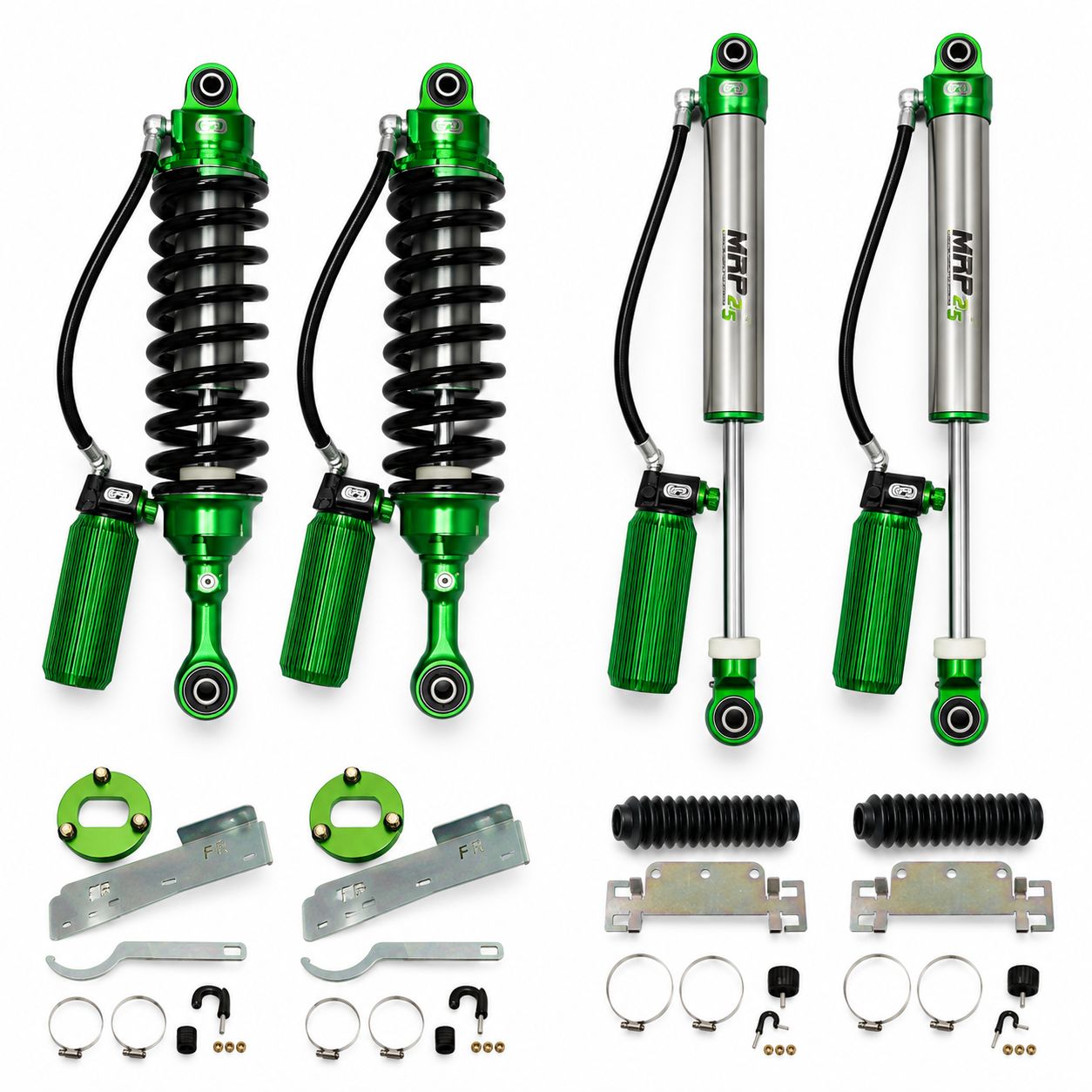

MRP
The adjustable remote-reservoir choice for owners who want to tune ride and control.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: factory bumper or light accessories.
- 50-100kgs: a constant-load front coil for a bullbar, winch or driving lights.
Rear Load Options
- 0-150kgs: a comfort-rated rear spring for light everyday loads.
- 300kgs: regular touring weight such as a canopy, fridge and camping gear. Rated for 0-300kg.
- 500kgs: heavy constant loads like drawers or a service body. Rated for a constant 400kg.
What's Included

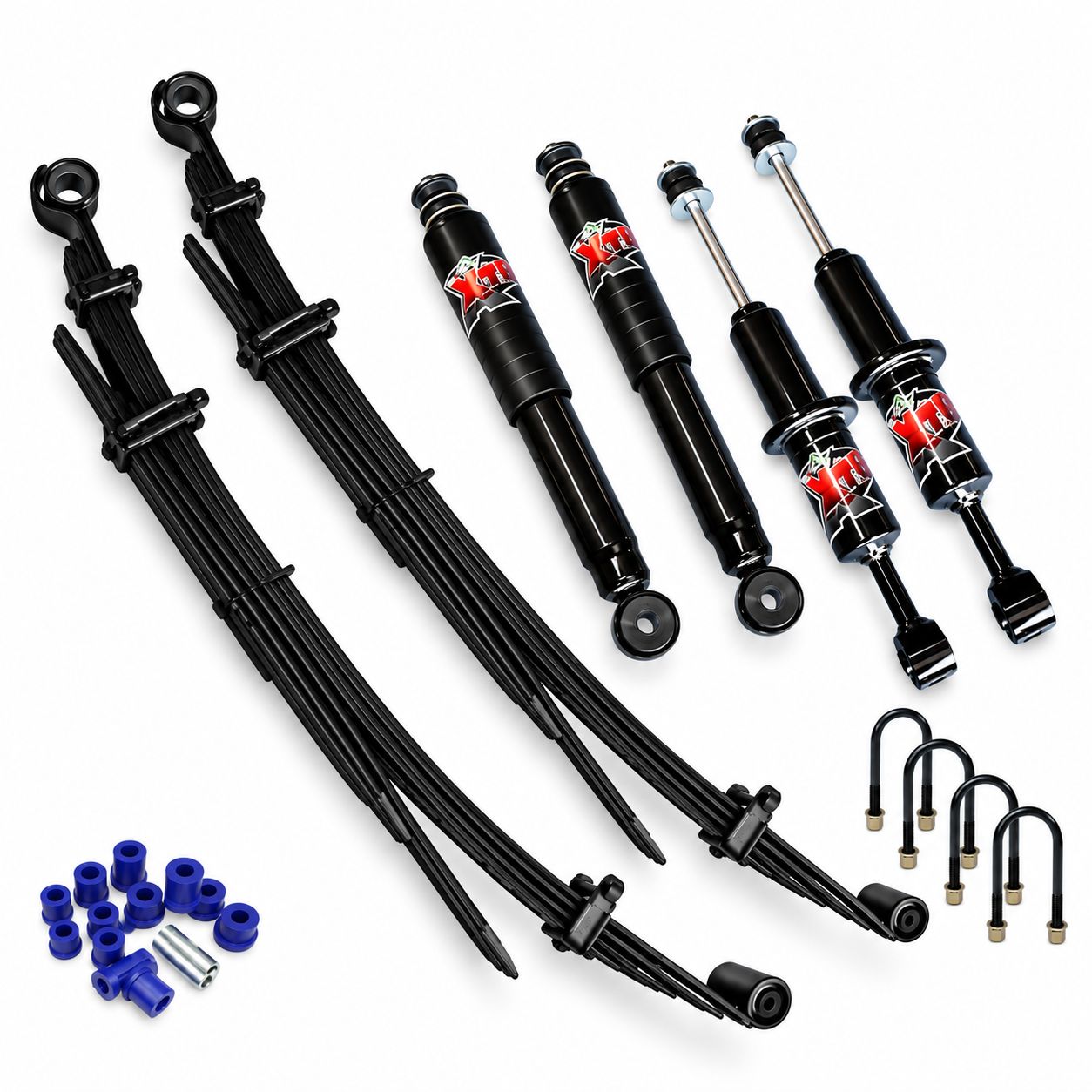

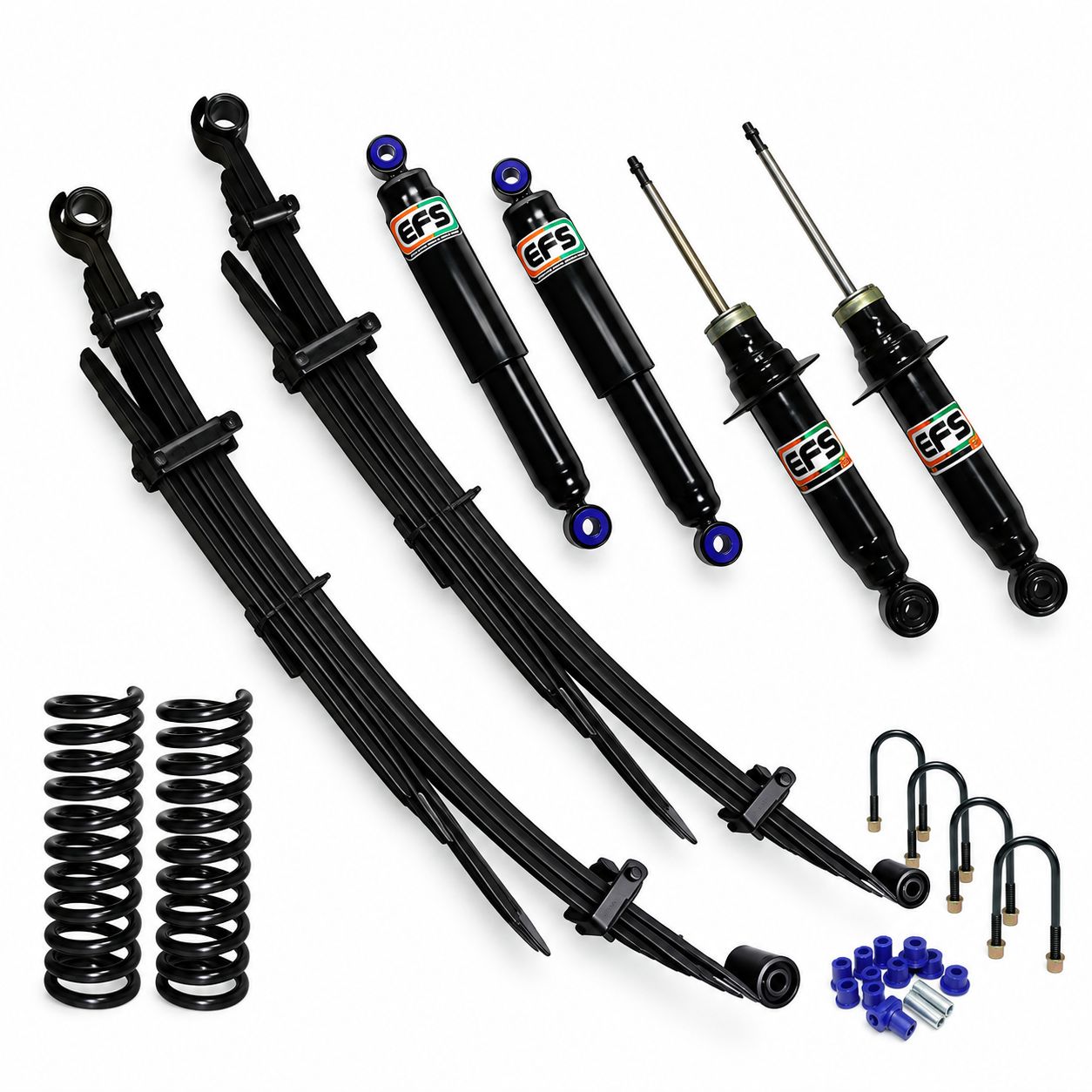

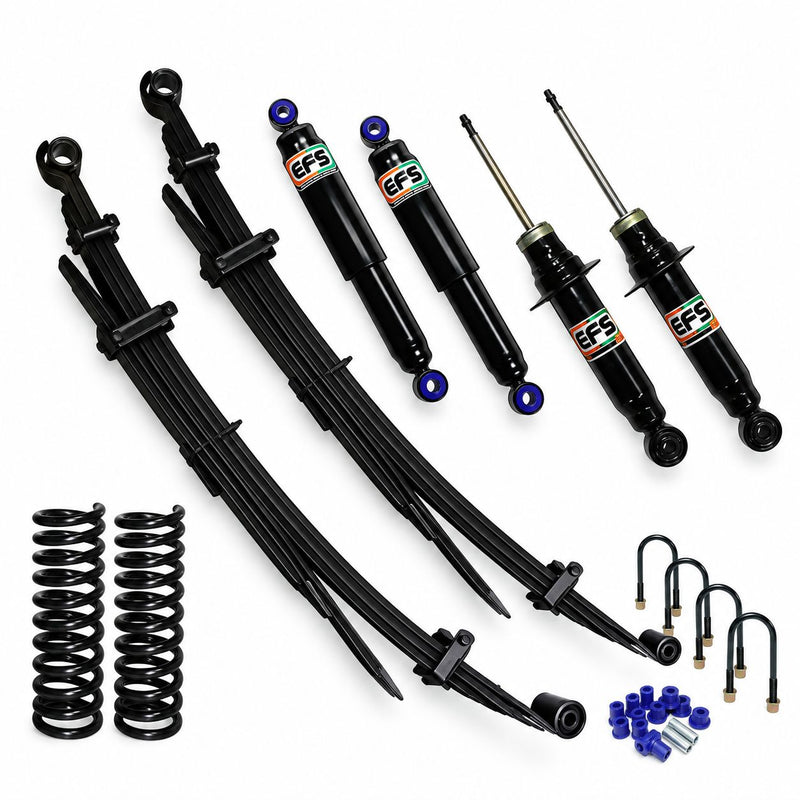

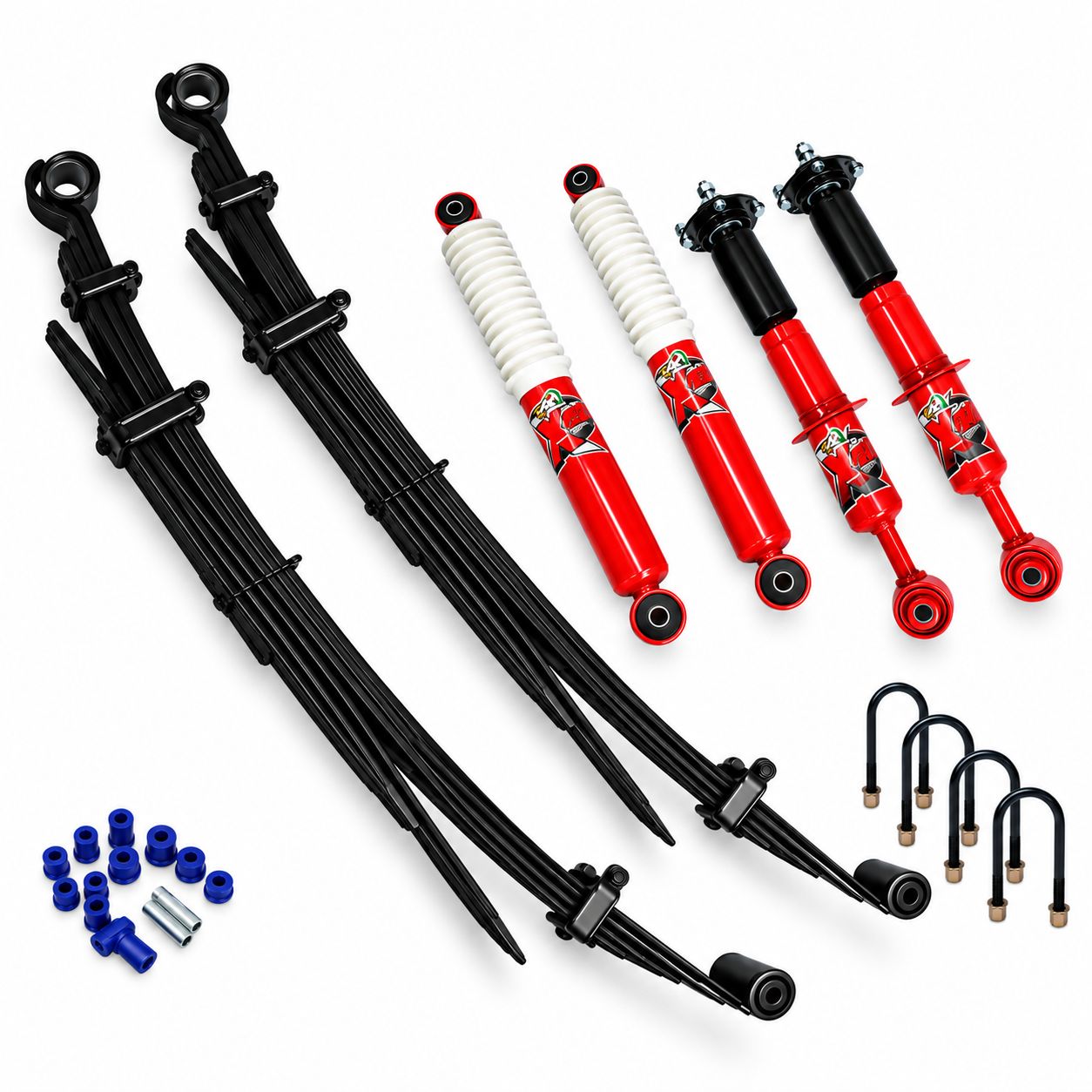

- 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear leaf spring bump stop strike plate
- Rear U-bolts
- Rear greasable swing shackles and fixed pins
Fitment
- Volkswagen Amarok, June 2023 onwards
- Not suitable for the earlier 2H Amarok (2010 to May 2023)
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
