EFS Lift Kit for Toyota Prado 120 (2003 - 2009)

The 120 Series Prado is a comfortable, capable family tourer, but its soft factory springs struggle once a bullbar, roof rack and camping gear go on. The nose dips, the rear sags and the wagon wallows over dips and corrugations. This EFS kit lifts the 120 Prado by roughly 40mm and replaces the struts, coils and rear shocks with a matched set built for touring weight.

Front struts arrive pre-assembled, so there is no need to compress springs during fitting. Pick a shock series and the front and rear spring rates that match how your Prado is set up.

Choose Your Shock

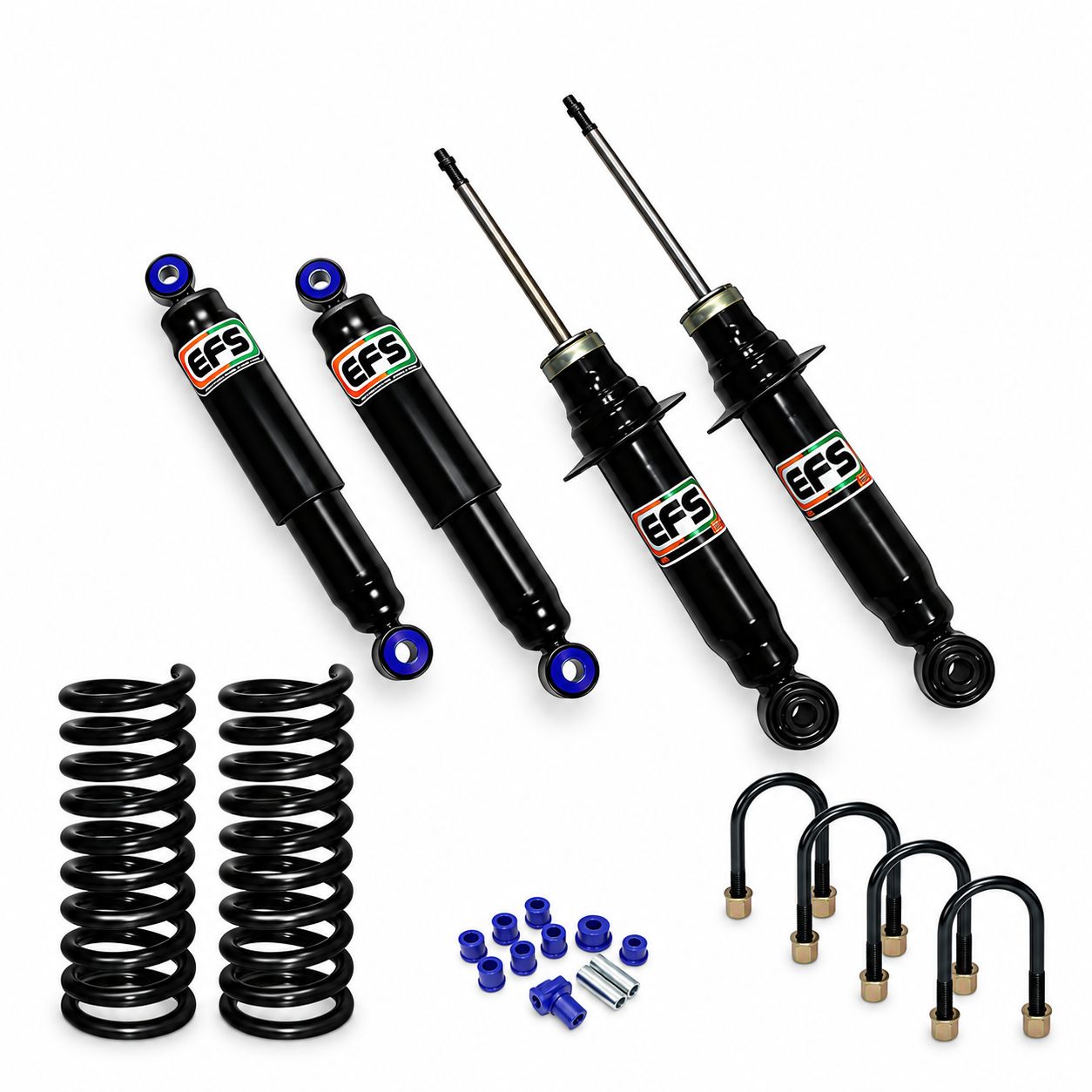

Elite

A smooth, well-controlled option for a Prado that spends most of its life on sealed roads and gravel, with the occasional beach or forest track.

• 35mm bore twin-tube design
• Hardened chrome piston rod
• Pre-assembled front struts

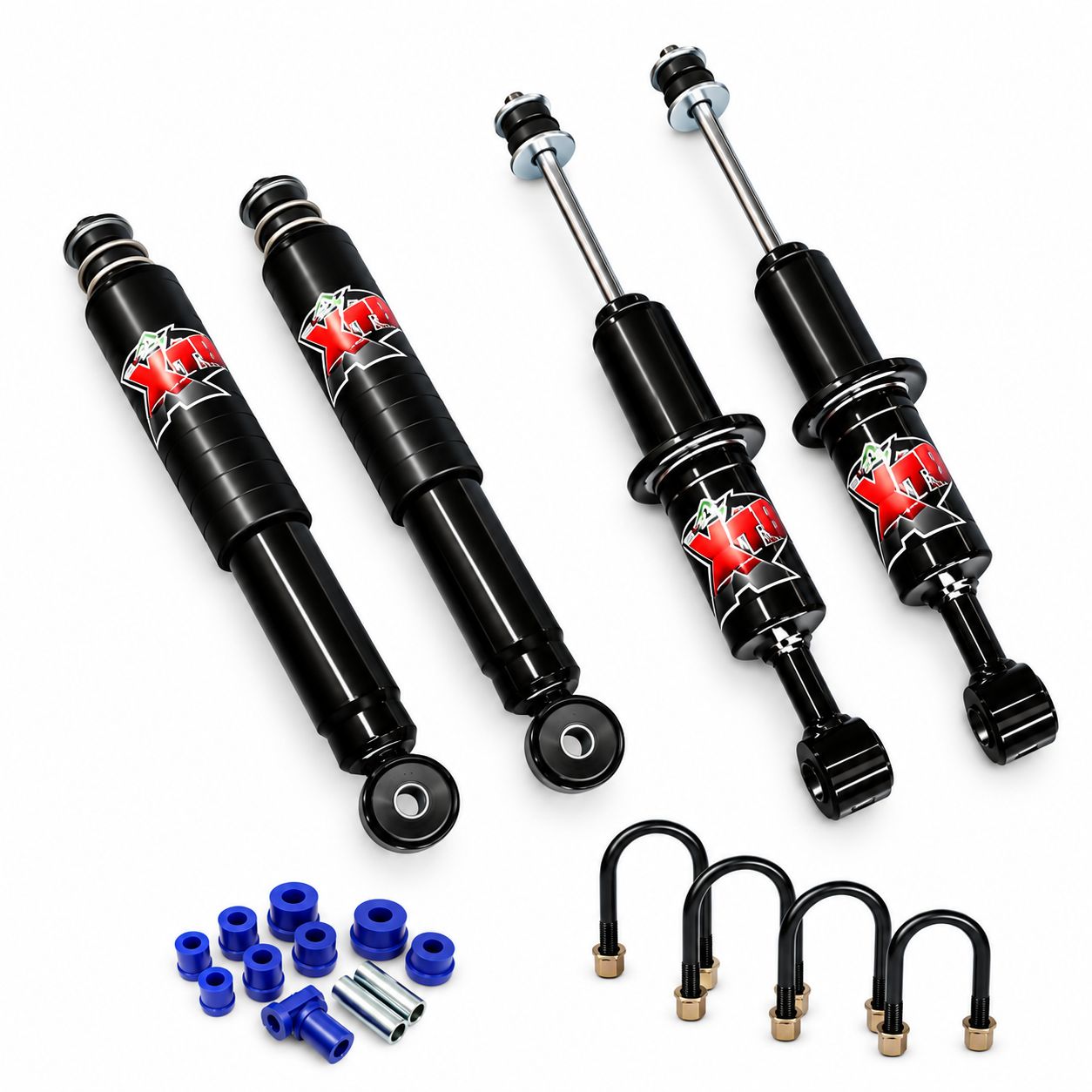

XTR

Made for longer trips and rougher roads. The bigger body holds more oil, so the shocks keep working consistently through hours of corrugations.

• 40mm bore twin-tube design
• More oil capacity than the Elite
• Pre-assembled front struts

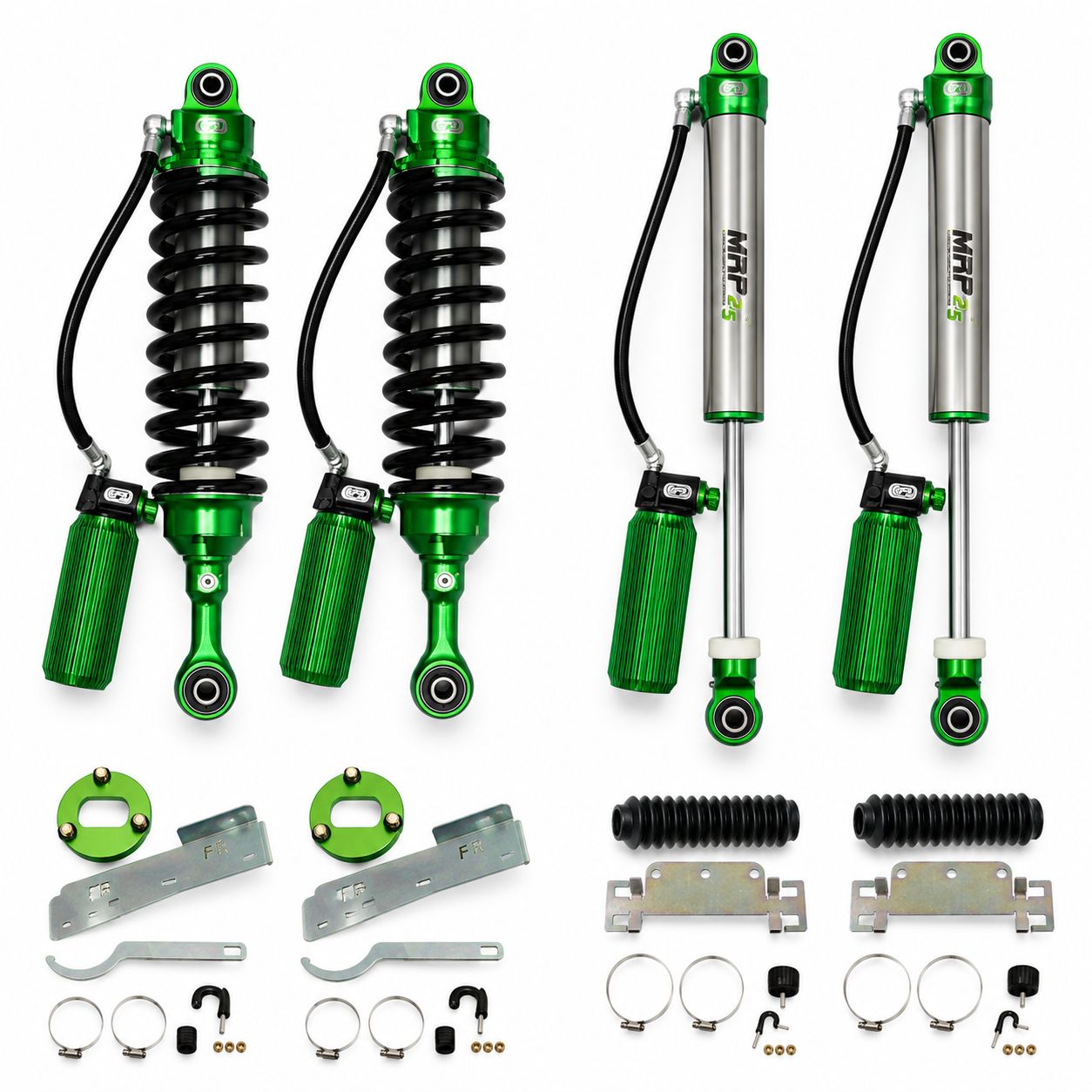

MRP

The adjustable, top-end choice. MRP uses a monotube remote reservoir design so you can tune ride comfort and control for the way you drive.

• 2.5" monotube body with finned remote reservoir
• 24-stage compression adjustment
• Up to 36-stage rebound adjustment
• Front supplied as a complete strut and coil assembly

Front Load Options

• 0-50kgs: factory bumper and a light front end.
• 50-100kgs: an alloy bar, driving lights or a light bar.
• 100-150kgs: a steel bullbar or a bar with a winch fitted.

Rear Load Options

• 0-150kgs: everyday family use with light gear in the back. Rated for up to about 100kg.
• 300kgs: a constant touring load such as a fridge, drawers, water and a rear wheel carrier. Rated for a constant 200kg.

What's Included

• 2 x EFS front struts (Elite, XTR or MRP), pre-assembled with raised coil springs rated to your selected front load
• 2 x EFS rear shock absorbers to match your chosen series
• 2 x raised rear coil springs, rated to your selected rear load

Fitment

• Toyota Prado 120 Series wagon, 2003 to 2009
• RZJ, VZJ, KZJ and KDJ 120, 121 and 125 models
• Coil-sprung rear only

Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
