EFS Lift Kit for Mazda BT50 TF (2020+)

2 sold in last 8 days
EFS
EFS-BT50TF-ELT-F050-R150
$5,005.00 $2,191.00
Shock Type :
Front Load :
Rear Load :
$2,191.00

Calculate Your Vehicle Weight

Not sure what load your vehicle is carrying? Use our Lift Kit Weight Calculator to work out your vehicle load and help determine the right lift kit setup.

Not sure which weight rating you need?

The accessories fitted to the front of your vehicle and the constant load carried in the rear can affect which lift kit setup is best suited to your vehicle.

Our Lift Kit Weight Calculator lets you select your front accessories and rear constant load to estimate your Front & Rear Weight Rating. You can then use this information to help choose the most suitable lift kit option.

Use our Lift Kit Weight Calculator →

*Weights and ranges provided are a rough guide only, as individual vehicle setups can vary.

Lift Kits

Due to the weight of the lift kits they are shipped on a pallet. They require commercial address with forklift for delivery.
Please contact our team via online chat if you require delivery to a residential address or pick up from a freight depot.

Checkout securely with

payment options
Online payments and cash on pick up available.
customers are viewing this product

  • Description
  • Get A Quote
  • 🛡️ Fitment Advice
  • Description

    • The TF BT-50 shares its underpinnings with the D-Max and is a strong, refined ute for work and touring. Like most modern utes, though, the factory springs give way quickly once a bar, canopy and gear are added. This EFS kit lifts the TF BT-50 by about 45mm and lets you pick spring rates that match your setup.

    Front struts are supplied pre-assembled, and the rear gets matched shocks, raised leaf packs and greasable shackles and pins.

    Choose Your Shock

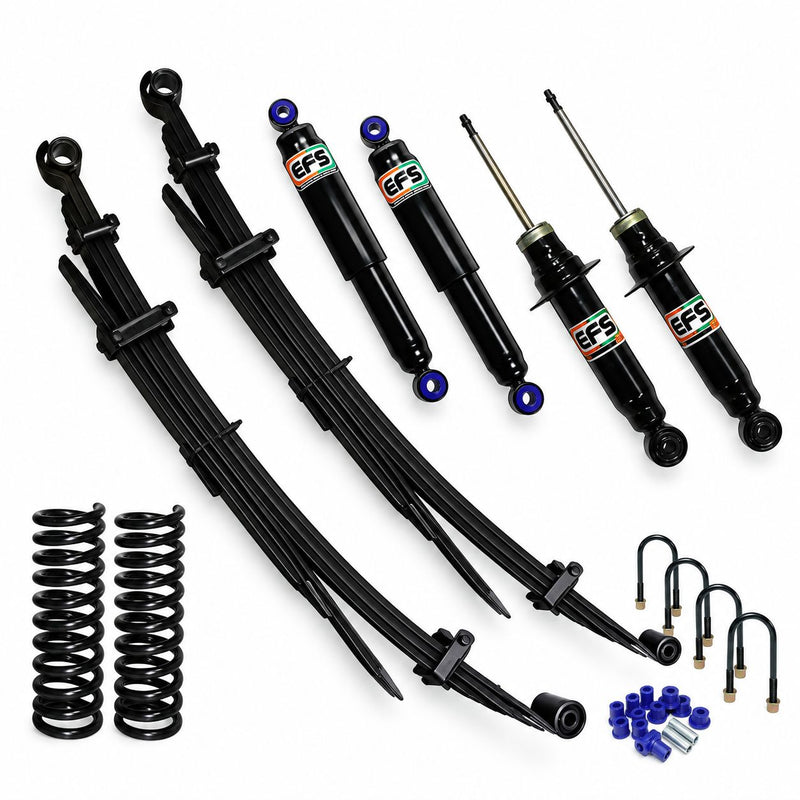

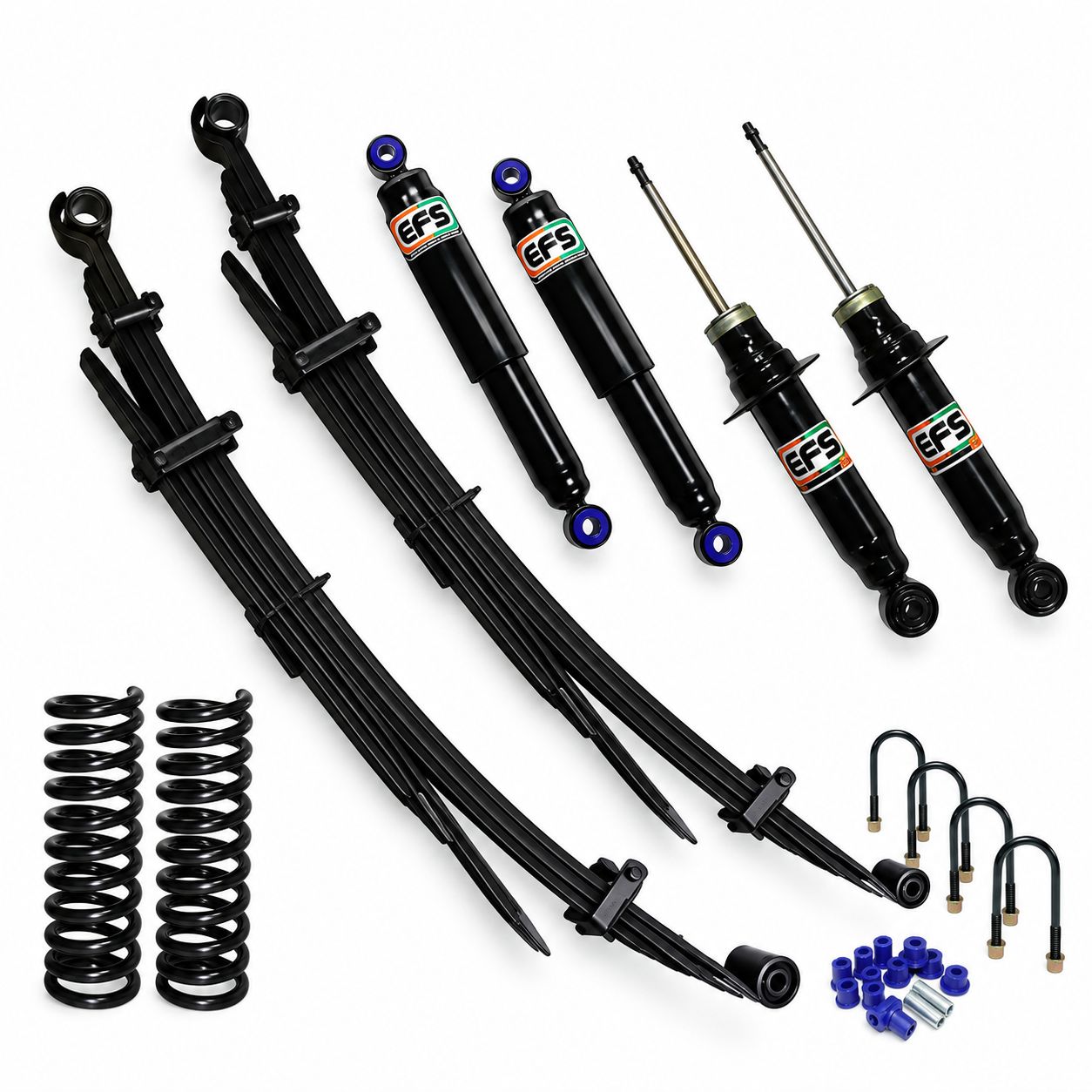

    Elite

    A comfortable all-rounder for daily use and weekend trips.

    • 35mm bore twin-tube design
    • Hardened chrome piston rod
    • Pre-assembled front struts

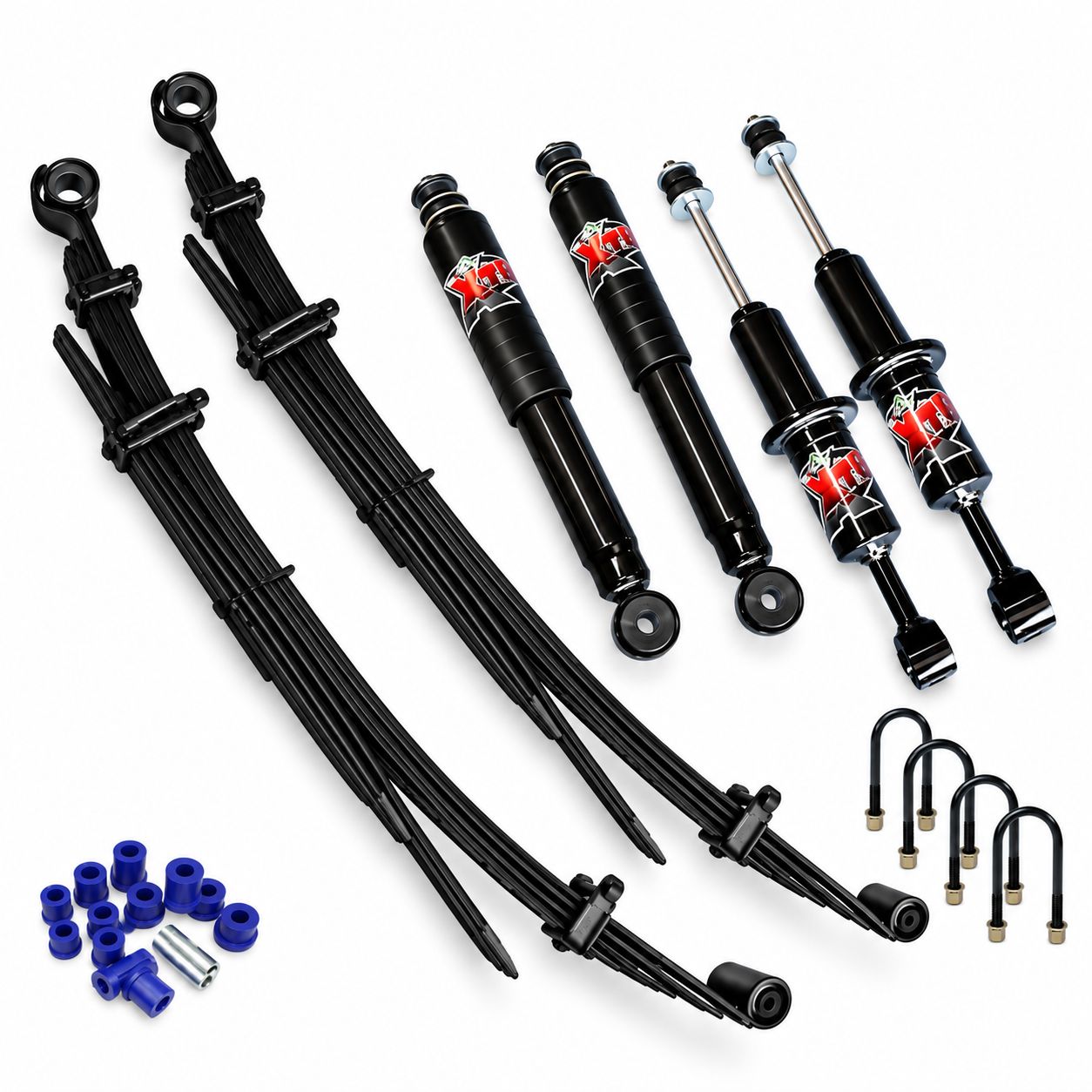

    XTR

    For regular touring and towing, with a larger body for more consistent damping.

    • 40mm bore twin-tube design
    • More oil volume than the Elite
    • Pre-assembled front struts

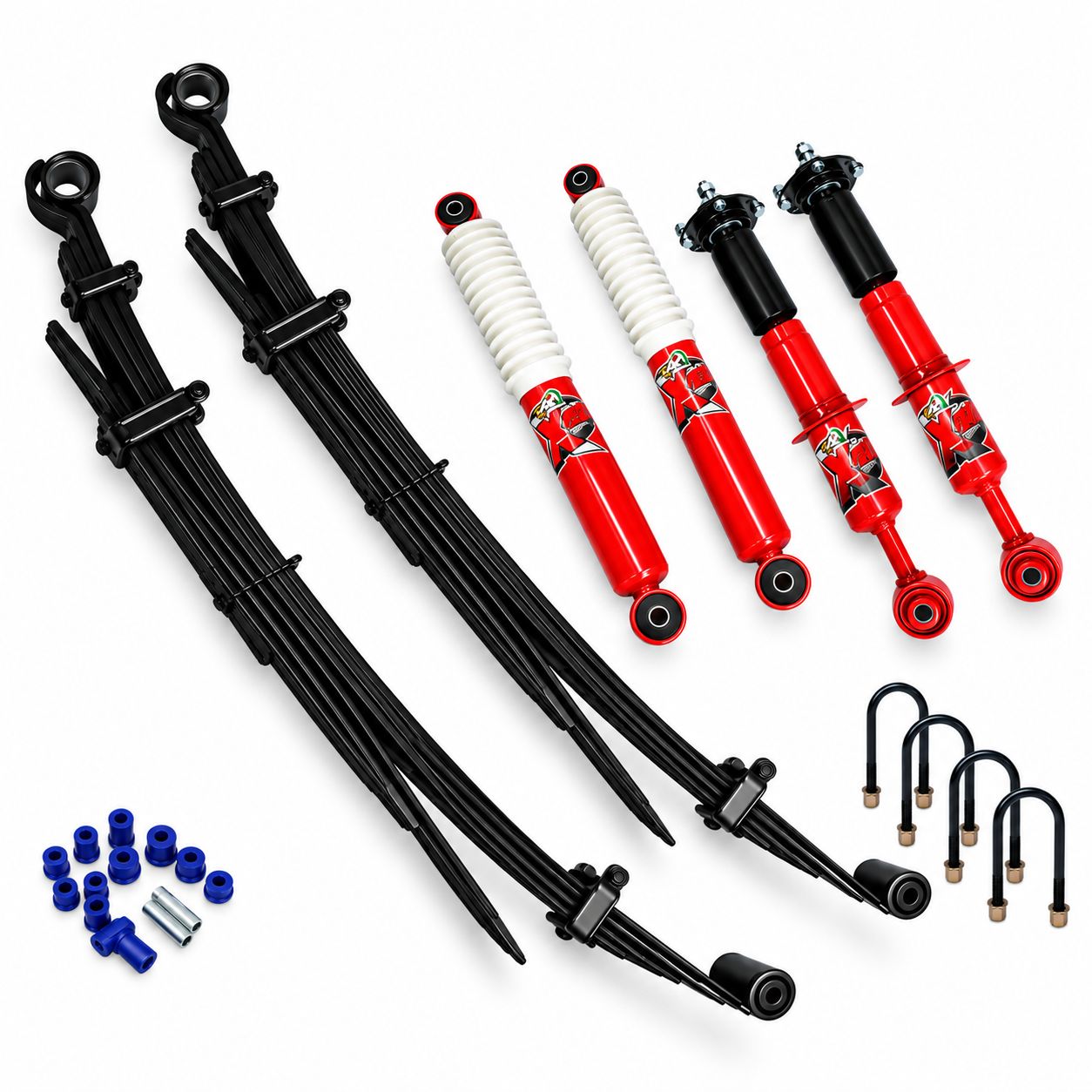

    Xtreme

    For BT-50s carrying heavy accessories full time on rough terrain.

    • 45mm bore twin-tube design
    • Largest twin-tube body in the range
    • Built for constant heavy loads

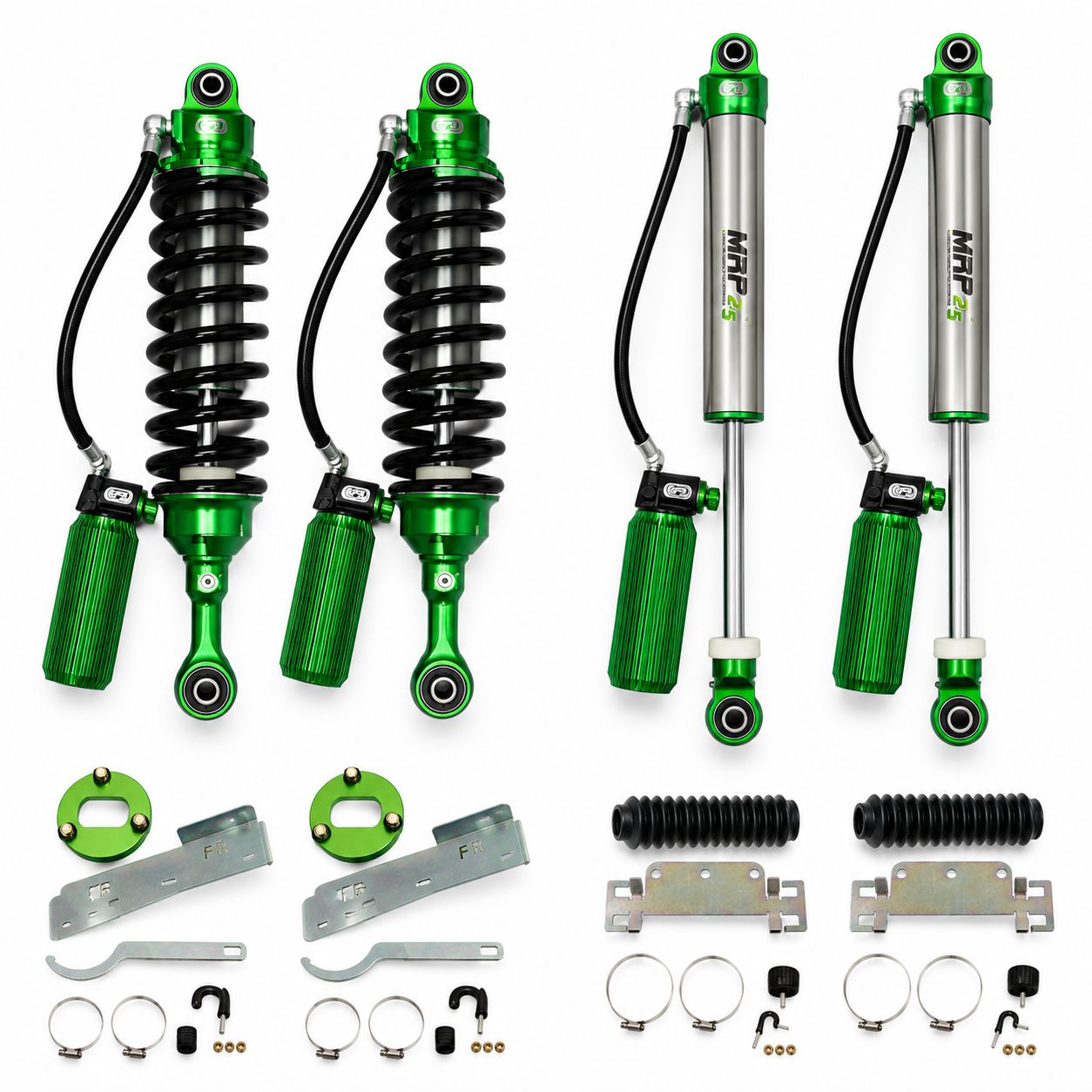

    MRP

    The adjustable remote-reservoir option for tuning the ride to suit touring or hard off-road driving.

    • 2.5" monotube body with finned remote reservoir
    • 24-stage compression adjustment
    • Up to 36-stage rebound adjustment
    • Front supplied as a complete strut and coil assembly

    Front Load Options

    • 0-50kgs: factory bumper or light accessories.
    • 50-100kgs: an alloy bar, light steel bar or driving lights.
    • 100-150kgs: a full steel bullbar or bar and winch, rated for around 120kg up front.

    Rear Load Options

    • 0-150kgs: an empty tub or light everyday gear.
    • 300kgs: a constant touring load such as a canopy and camping equipment. Rated for a constant 350kg.
    • 500kgs: heavy constant loads like drawers, a service body or a slide-on camper. Rated for a constant 450kg.

    What's Included

    • 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs
    • 2 x EFS rear shock absorbers to match your chosen series
    • 2 x raised rear leaf spring packs, rated to your selected rear load
    • Rear spring bushes
    • Rear U-bolts
    • Rear greasable shackles and fixed pins

    Fitment

    • Mazda BT-50 TF 4WD, October 2020 onwards
    • Single cab, freestyle cab and dual cab models
    • Not suitable for 2WD models or the earlier UP/UR BT-50

    Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
