EFS Lift Kit for Isuzu Dmax TFS85 (2012 - 2020)
Lift Kits
Checkout securely with
- Description
- Get A Quote
- 🛡️ Fitment Advice
The TF-series D-Max earned a loyal following for its reliable 3.0-litre diesel, but its standard suspension was never built for the bullbars, canopies and touring setups most owners end up fitting. Load it up and the rear squats, the front dives under brakes and the ride gets choppy on corrugations. This EFS kit rebuilds the suspension on D-Max utes from July 2012 to mid-2020, adding about 45mm of lift and letting you pick spring rates that suit the weight you carry every day.
Every kit pairs new front struts and coils with matched rear shocks and raised leaf packs. The front struts are supplied pre-assembled on new strut plates, so they bolt straight in without the need for a spring compressor.
Choose Your Shock
Four EFS shock series are offered for this D-Max, from an everyday all-rounder up to a fully adjustable remote-reservoir system.
Elite
The go-to option for a D-Max used for work during the week and the odd camping trip on the weekend. It rides comfortably on sealed roads and handles gravel without fuss.
- 35mm bore twin-tube shock
- Hardened chrome piston rod
- Comfort-focused valving for daily use
XTR
Aimed at outback touring. The larger body holds more oil, so the shocks stay consistent on long days of dirt road and corrugations.
- 40mm bore twin-tube shock
- More oil volume than the Elite for better heat control
- Steadier control when towing or carrying gear
Xtreme
Made for a heavily loaded D-Max that regularly tackles rough, corrugated tracks. It is the largest twin-tube shock in the EFS range.
- 45mm bore twin-tube shock
- Maximum oil capacity of the twin-tube range
- Built for constant heavy loads and harsh terrain

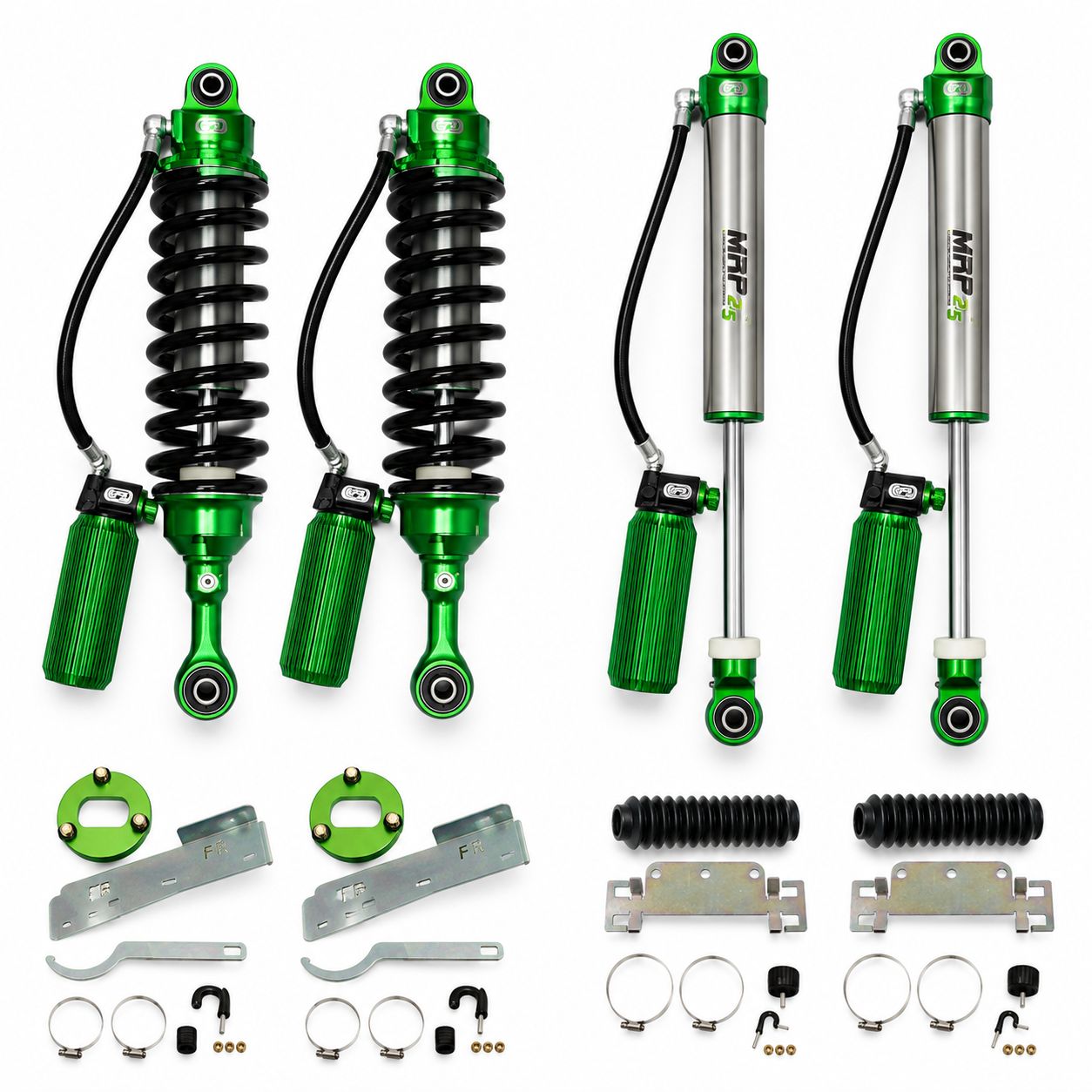

MRP
The top-tier choice for owners who want to fine-tune their ride. MRP uses a monotube remote reservoir design with external adjusters, so the setup can be dialled in for touring comfort or hard off-road driving.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: the original front bumper with no extra accessories. Softest, most comfortable front ride.
- 50-100kgs: an alloy bar, a light steel bar, driving lights or a light bar.
- 100-150kgs: a full steel bullbar, or a bar fitted with a winch, rated for around 120kg of constant front load.
Rear Load Options
- 0-150kgs: everyday driving with an empty tub or light tools.
- 300kgs: a canopy, fridge, water tank and camping gear for regular touring.
- 500kgs: heavy constant loads such as drawer systems, service bodies, toolboxes or a slide-on camper.

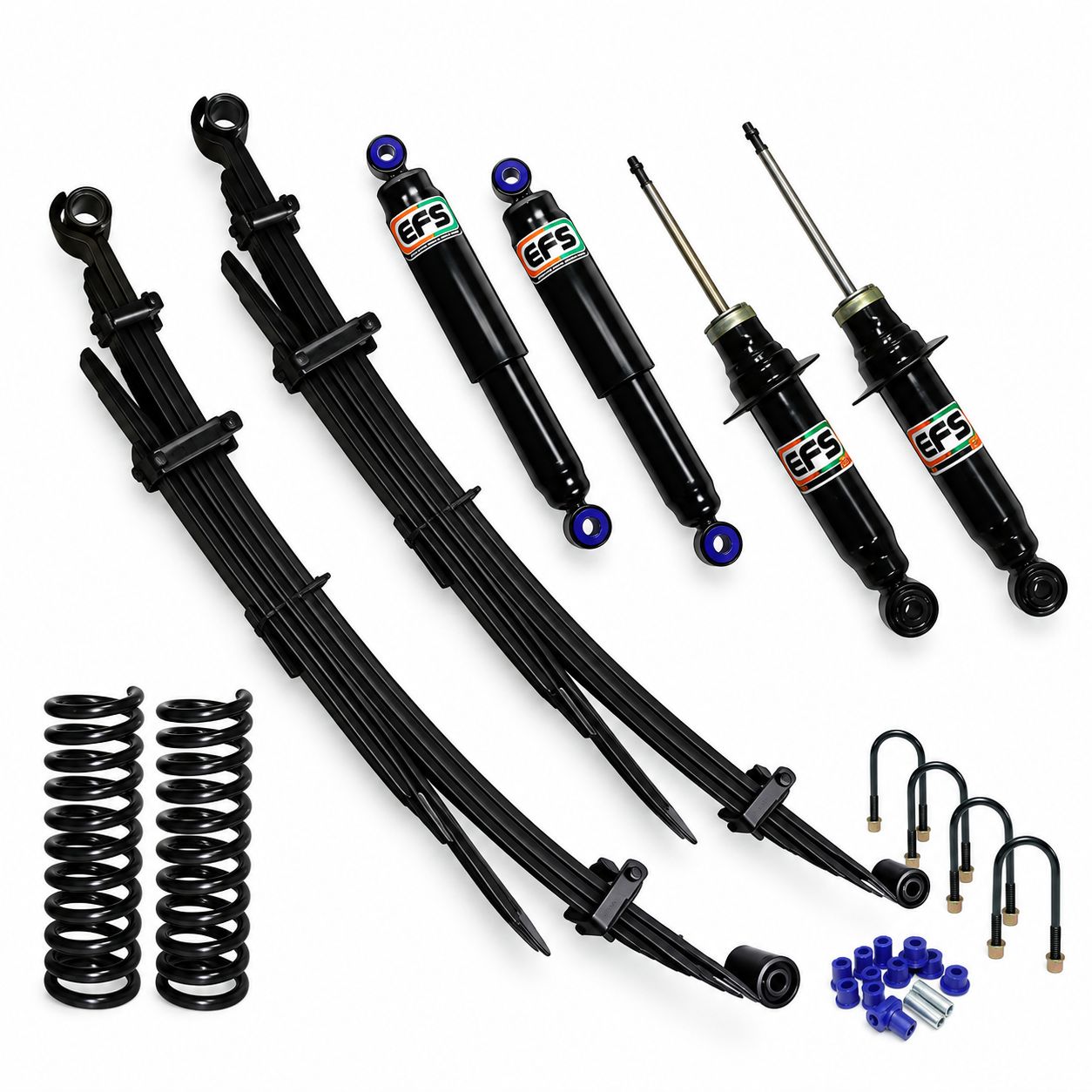

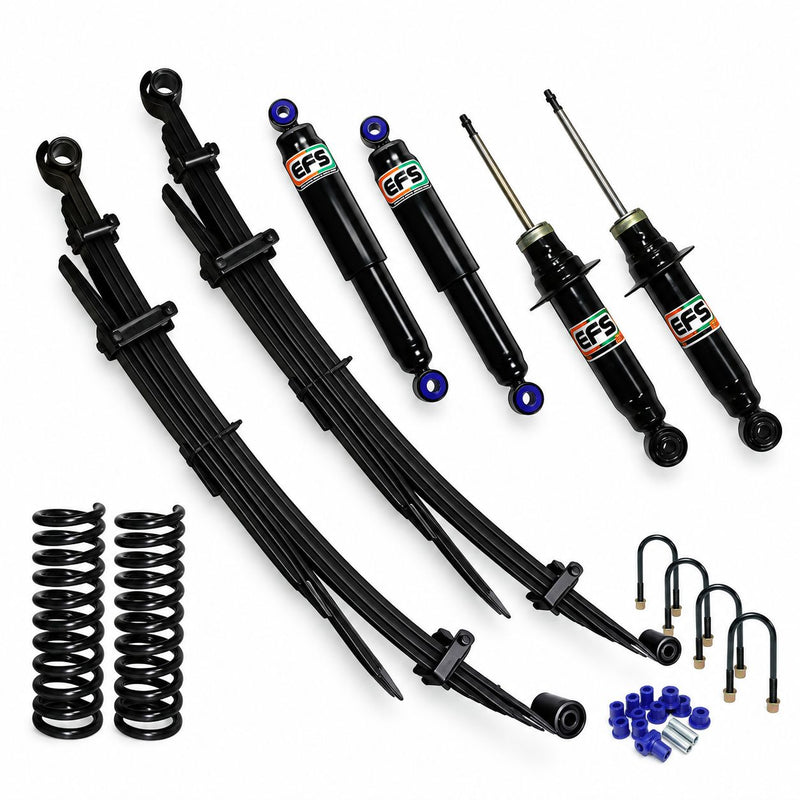

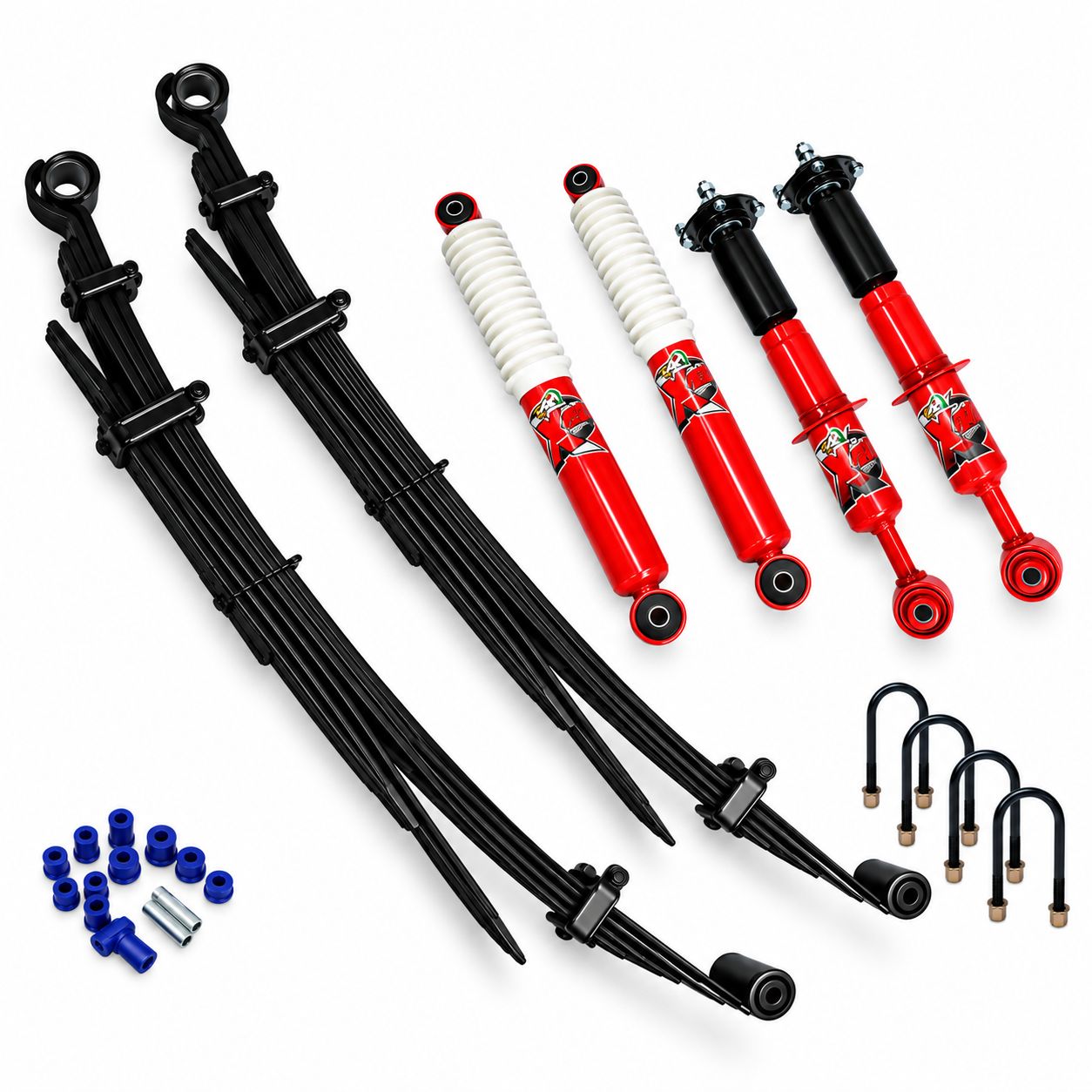

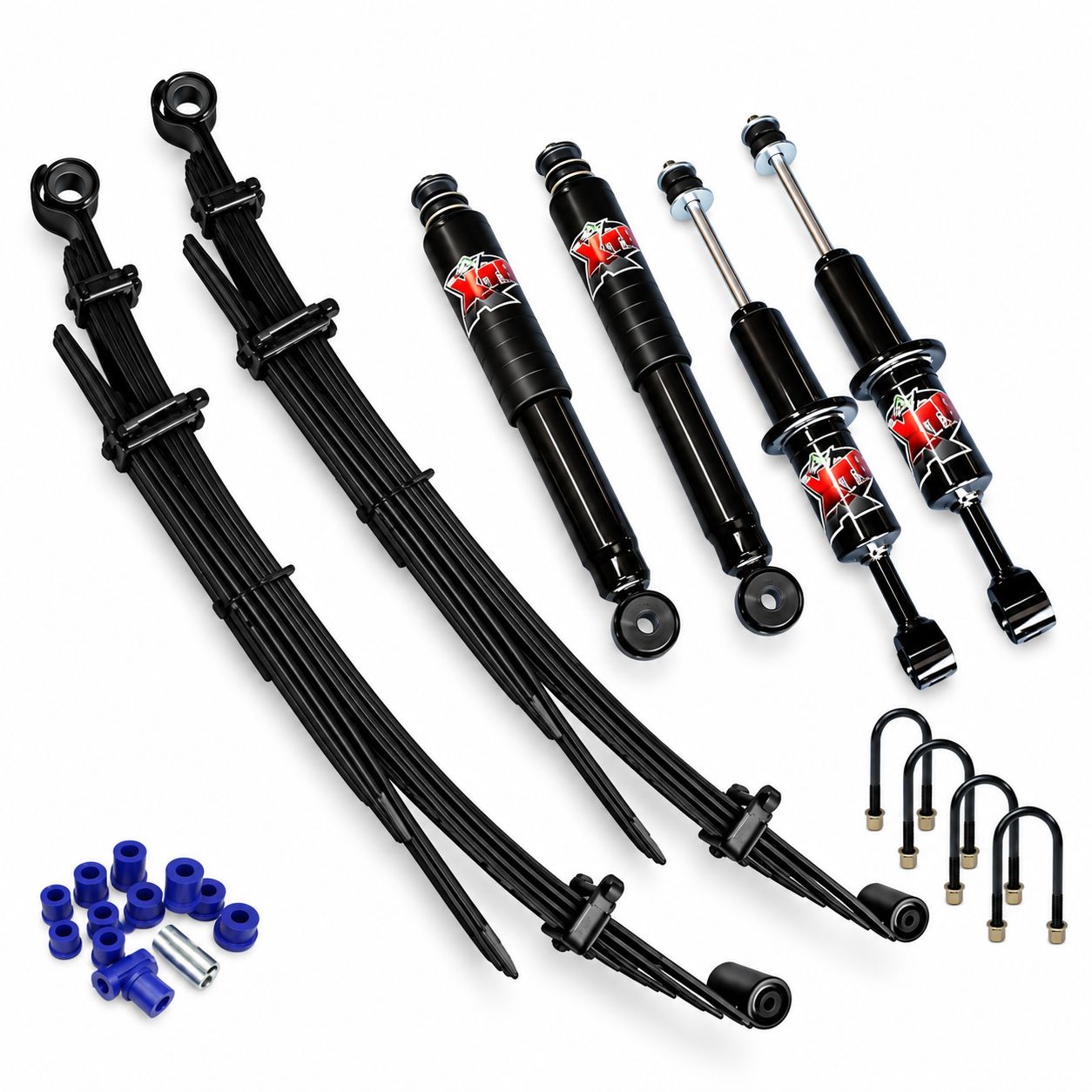

What's Included
- 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs and new strut plates
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
- Rear greasable shackles and greasable fixed pins
Fitment
- Isuzu D-Max TF series, July 2012 to June 2020
- 4WD single cab, space cab and crew cab models
- Not suitable for the 2020+ RG series D-Max
Images are for illustrative purposes only. Actual products may vary in appearance and should be used as a guide only.
Our team is here to help you find the right gear for your setup. We can provide expert fitment advice and personalised quotes tailored to your vehicle and requirements.
Simply visit our Quote Request page, leave your details along with the products you're interested in, and one of our team members will be in touch with you shortly.
