The RG D-Max is one of the best-selling utes in the country, and it is often loaded with a bullbar, canopy, drawers and a full touring kit. The factory leaves and front coils sag under that weight, upsetting the stance and the ride. This EFS kit lifts the RG D-Max by about 45mm and lets you choose spring rates to suit your setup.
Front struts arrive pre-assembled, and the rear gets matched shocks, raised leaf packs and greasable shackles and pins.
Choose Your Shock
Elite
A comfortable all-round option for a D-Max that does daily duties and weekend trips.
- 35mm bore twin-tube design
- Hardened 15mm chrome piston rod
- Pre-assembled front struts
XTR
A tougher choice for touring and towing, with a larger body for steadier damping on rough roads.
- 40mm bore twin-tube design
- More oil capacity than the Elite
- Pre-assembled front struts
Xtreme
Made for heavily accessorised D-Maxes working hard off-road.
- 45mm bore twin-tube design
- Largest twin-tube shock in the EFS range
- Built for constant heavy loads

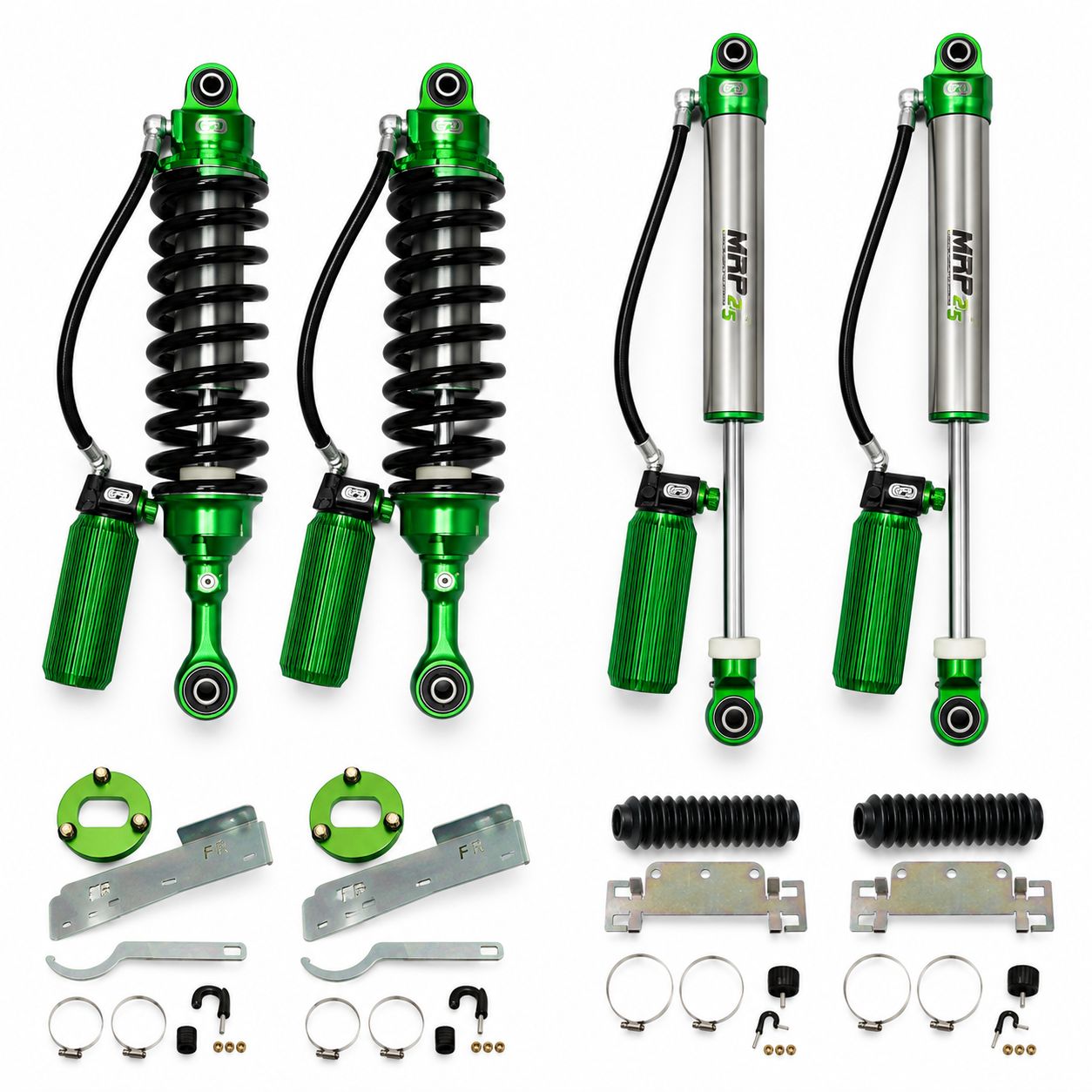

MRP
The adjustable remote-reservoir system for owners who want to tune ride and control.
- 2.5" monotube body with finned remote reservoir
- 24-stage compression adjustment
- Up to 36-stage rebound adjustment
- Front supplied as a complete strut and coil assembly
Front Load Options
- 0-50kgs: factory bumper or very light accessories.
- 50-100kgs: an alloy bar, light steel bar or driving lights.
- 100-150kgs: a full steel bullbar or bar and winch. Rated for a constant 120kg.
Rear Load Options
- 0-150kgs: an empty tub or light everyday gear.
- 300kgs: a constant touring load such as a canopy and camping equipment. Rated for a constant 350kg.
- 500kgs: heavy constant loads such as drawers, a service body or a slide-on camper. Rated for a constant 450kg.

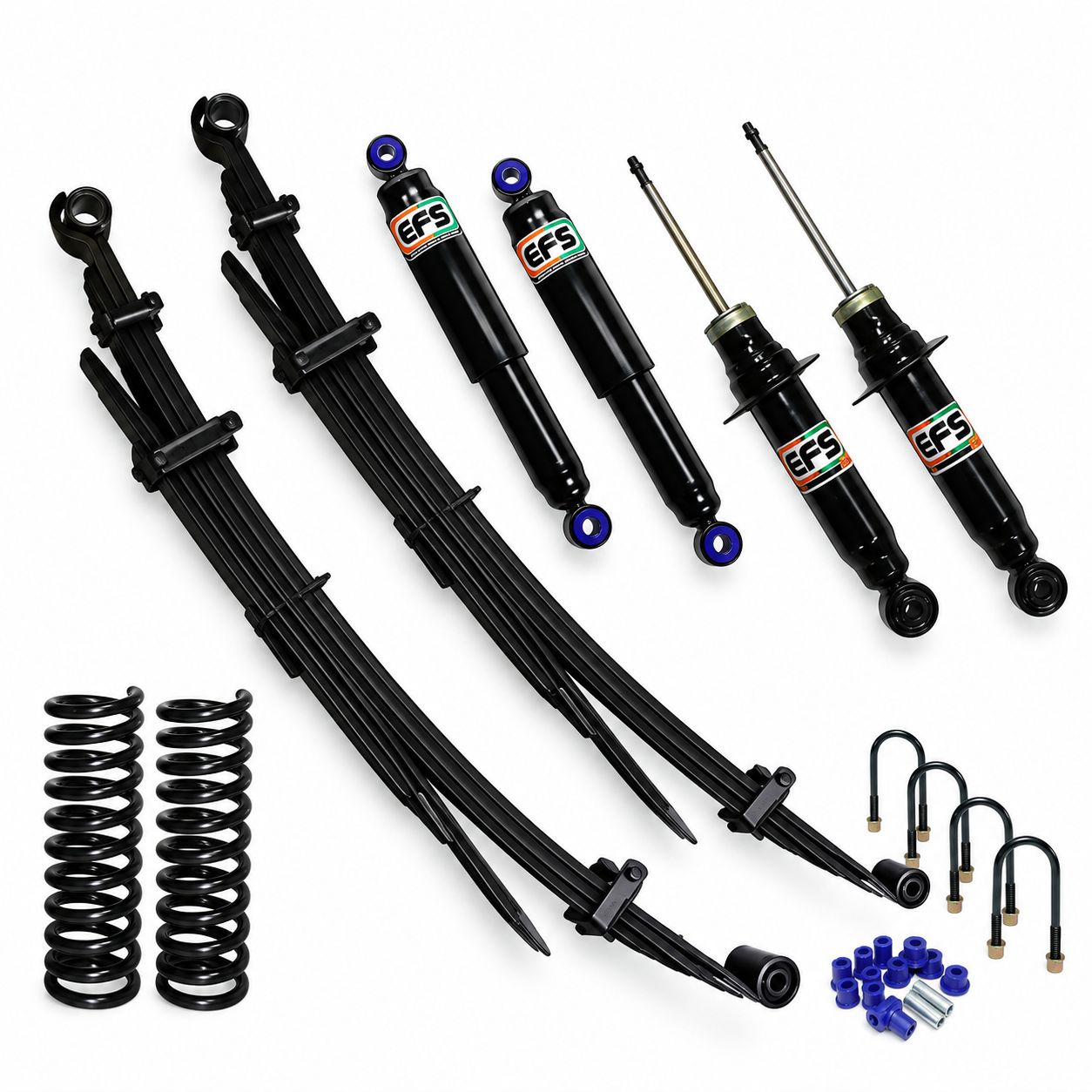

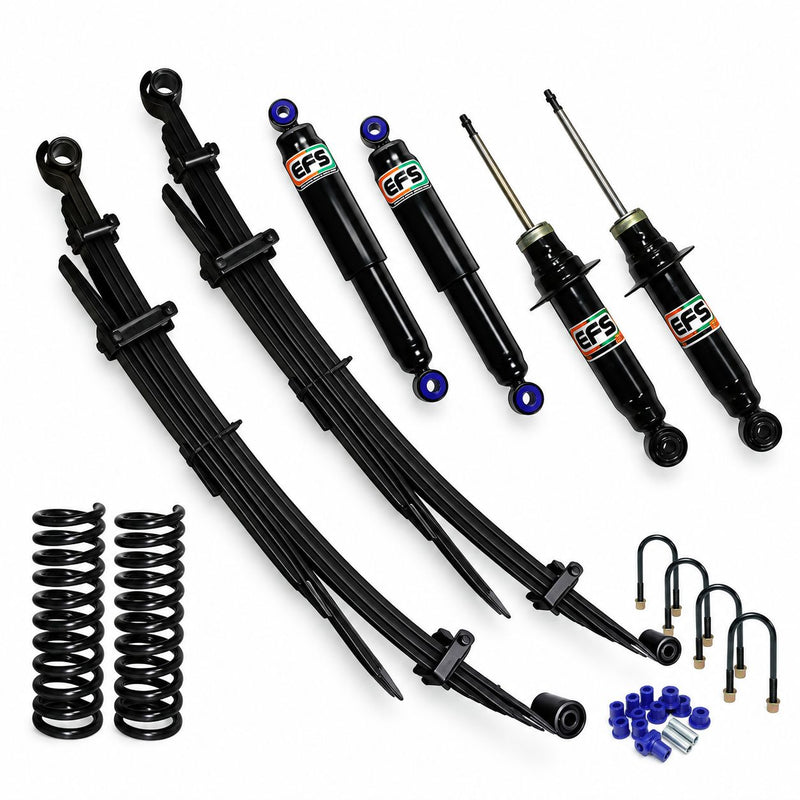

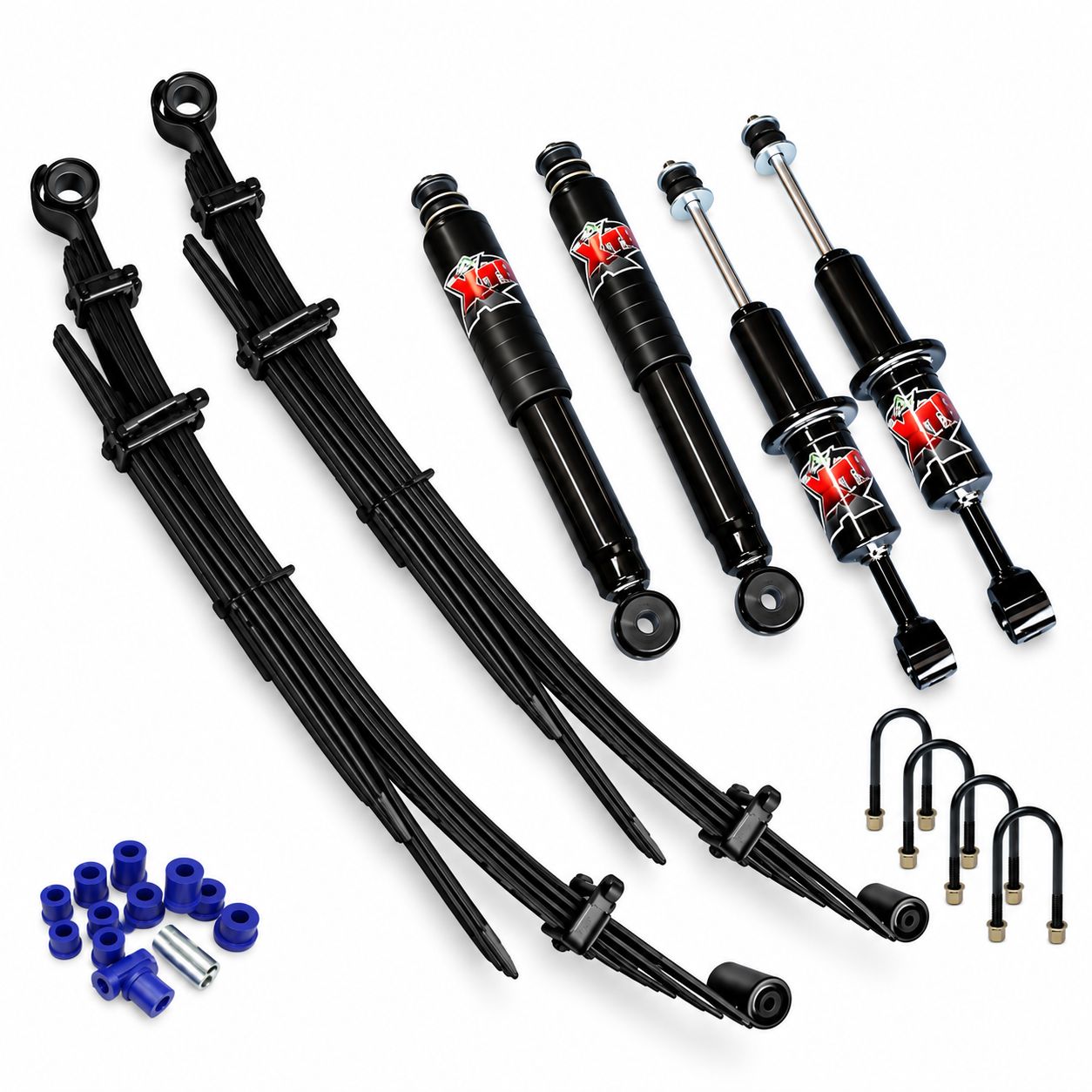

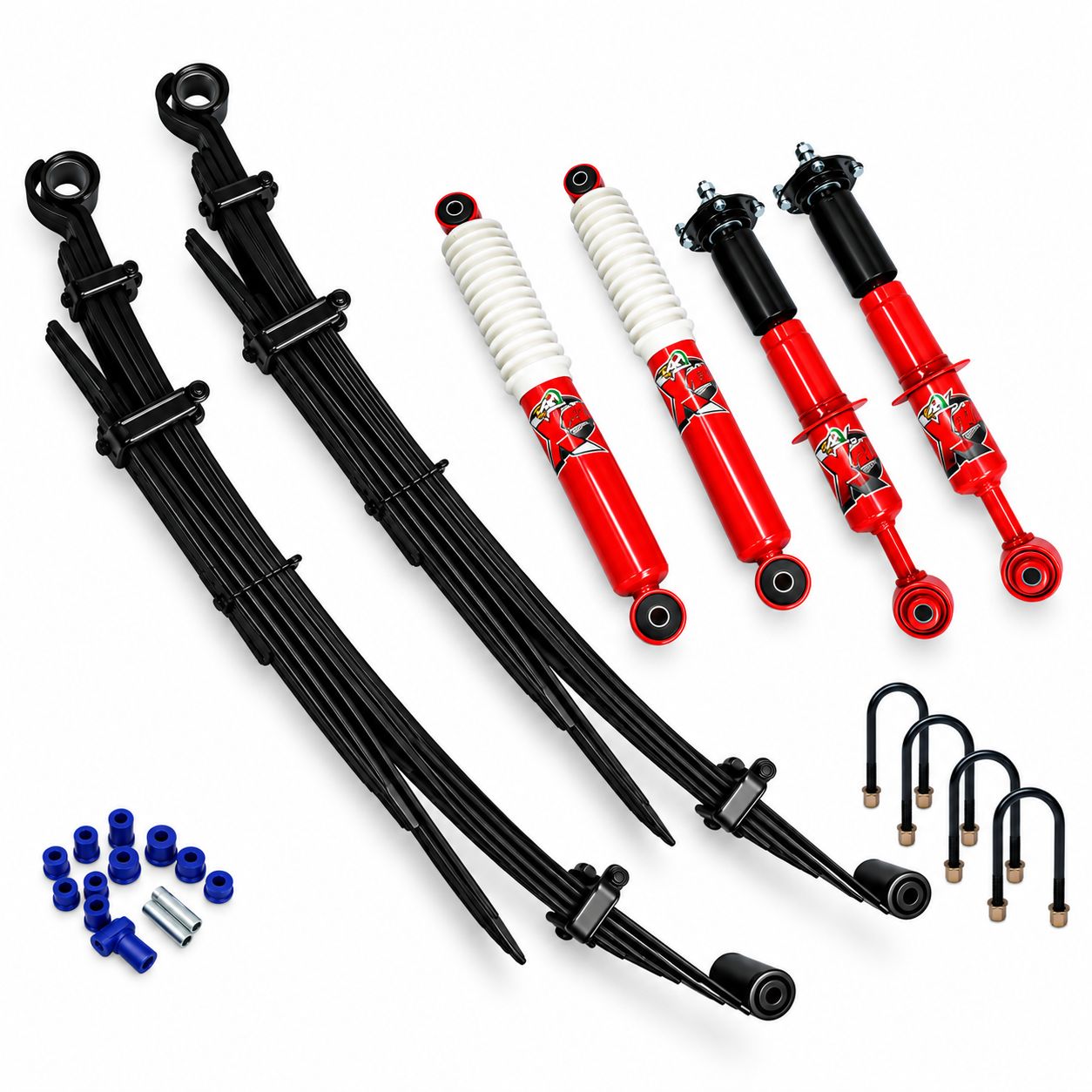

What's Included
- 2 x EFS front struts (Elite, XTR, Xtreme or MRP), pre-assembled with raised coil springs
- 2 x EFS rear shock absorbers to match your chosen series
- 2 x raised rear leaf spring packs, rated to your selected rear load
- Rear spring bushes
- Rear U-bolts
- Rear greasable shackles and fixed pins
Fitment
- Isuzu D-Max RG 4x4, August 2020 onwards
- Single cab, space cab and crew cab models
- Not suitable for 2WD models or the earlier TF D-Max
