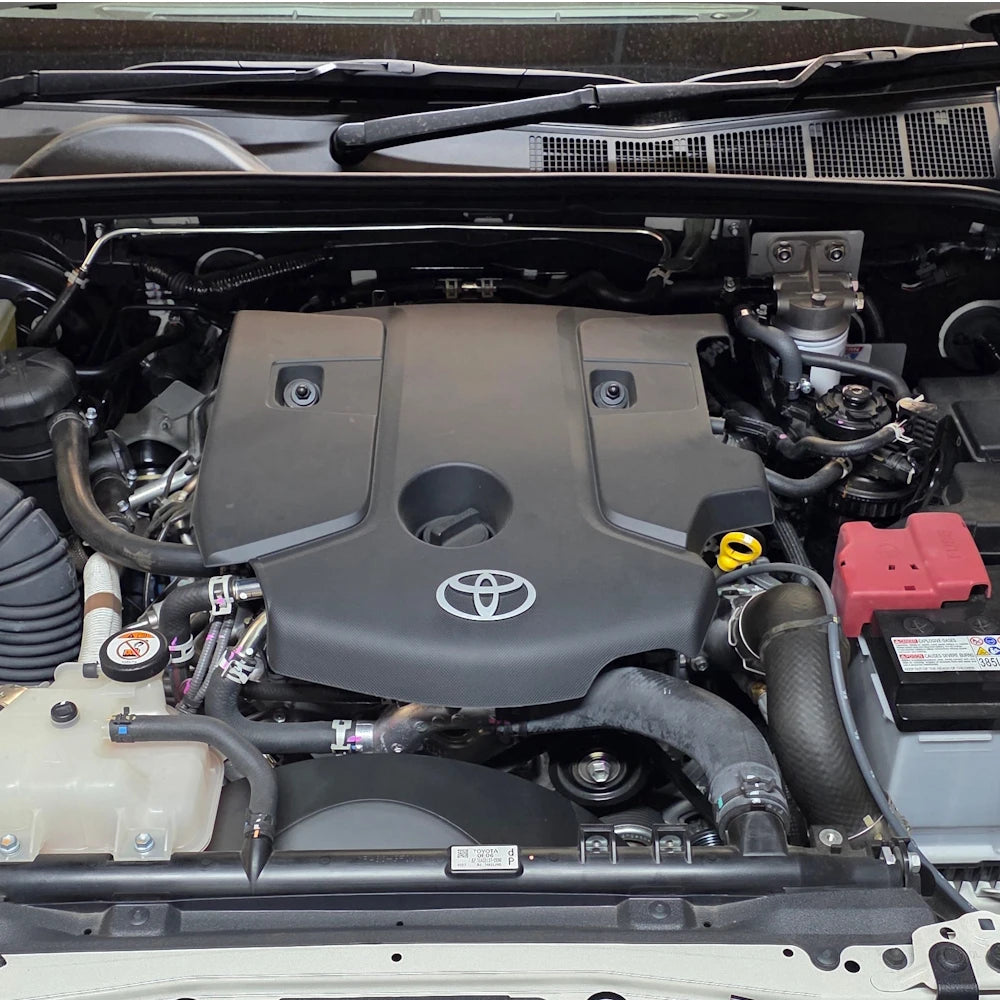

Pre-filter mounting location in Toyota Hilux N90 engine bay

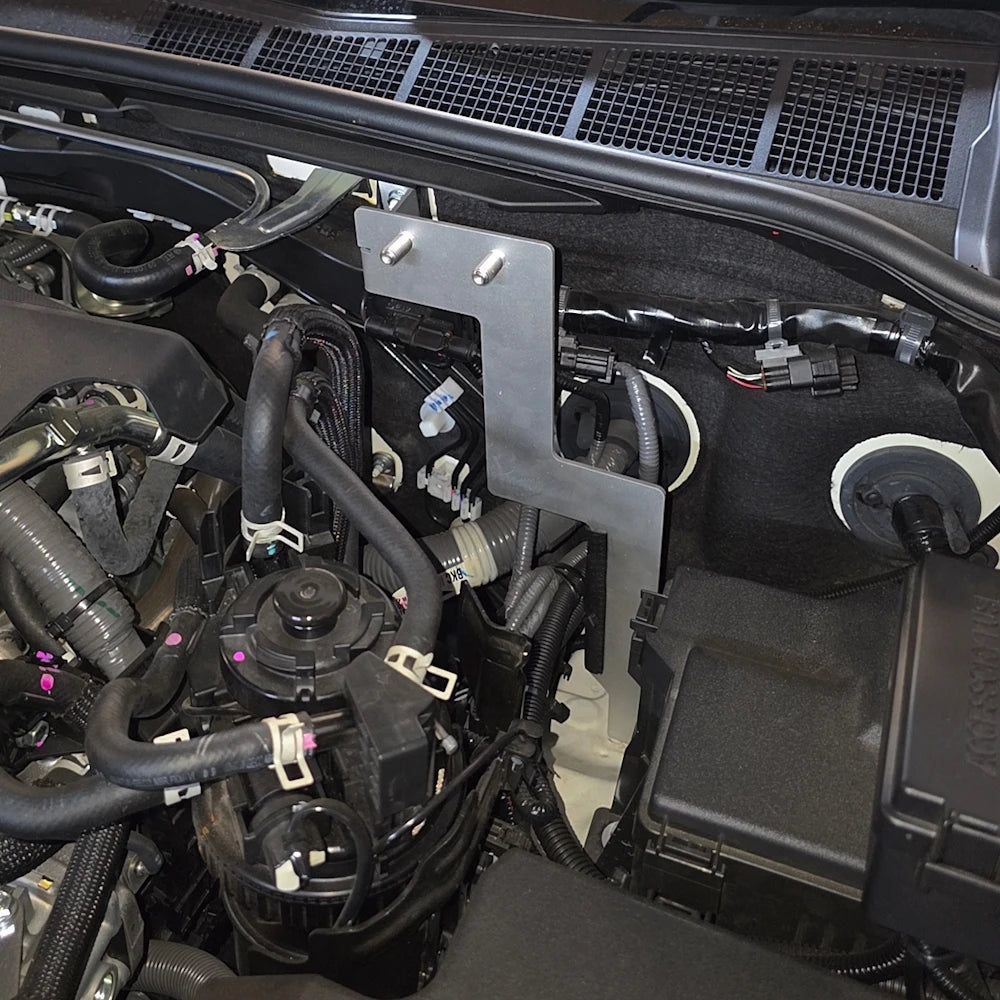

Donaldson pre-filter bracket mounted in Hilux N90 2026

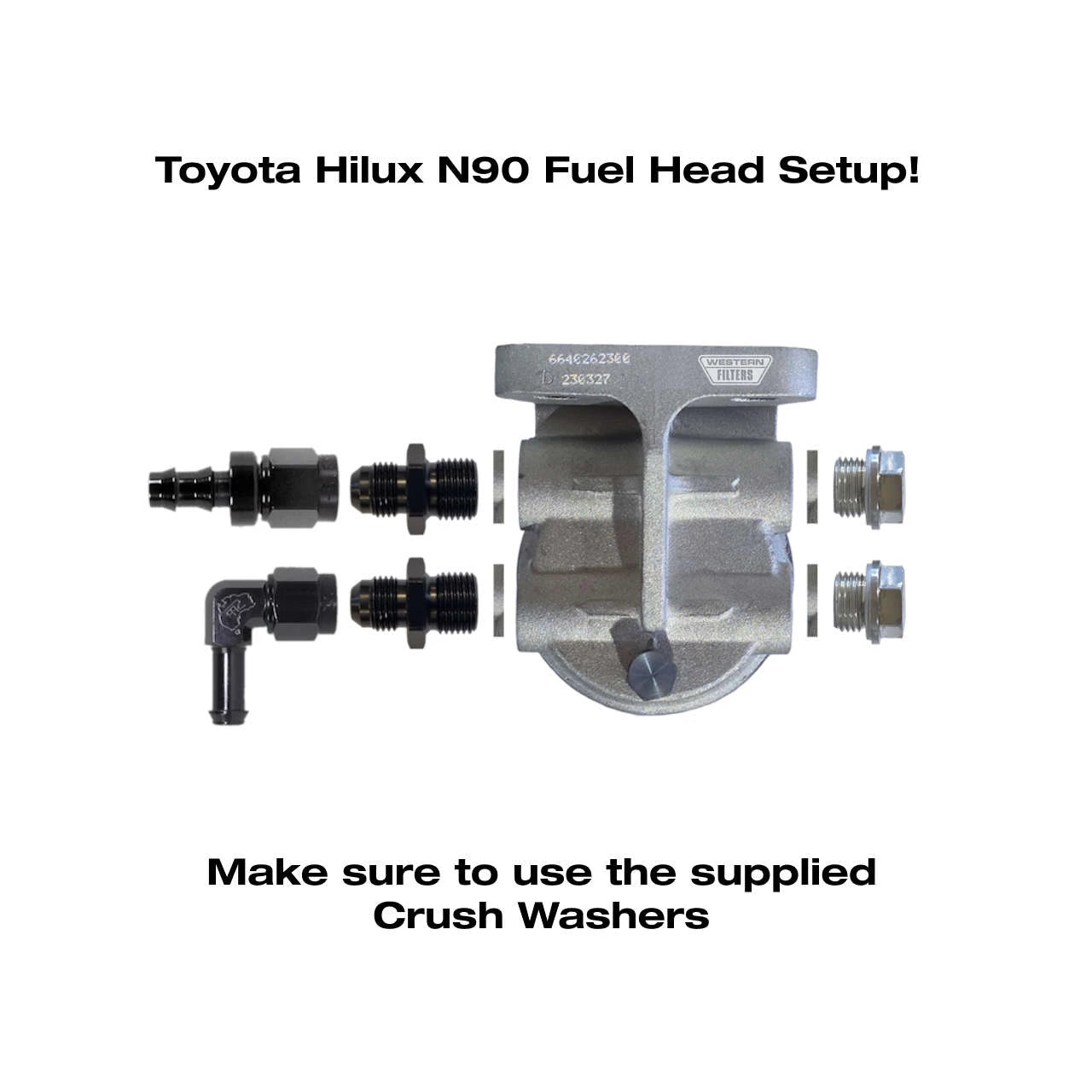

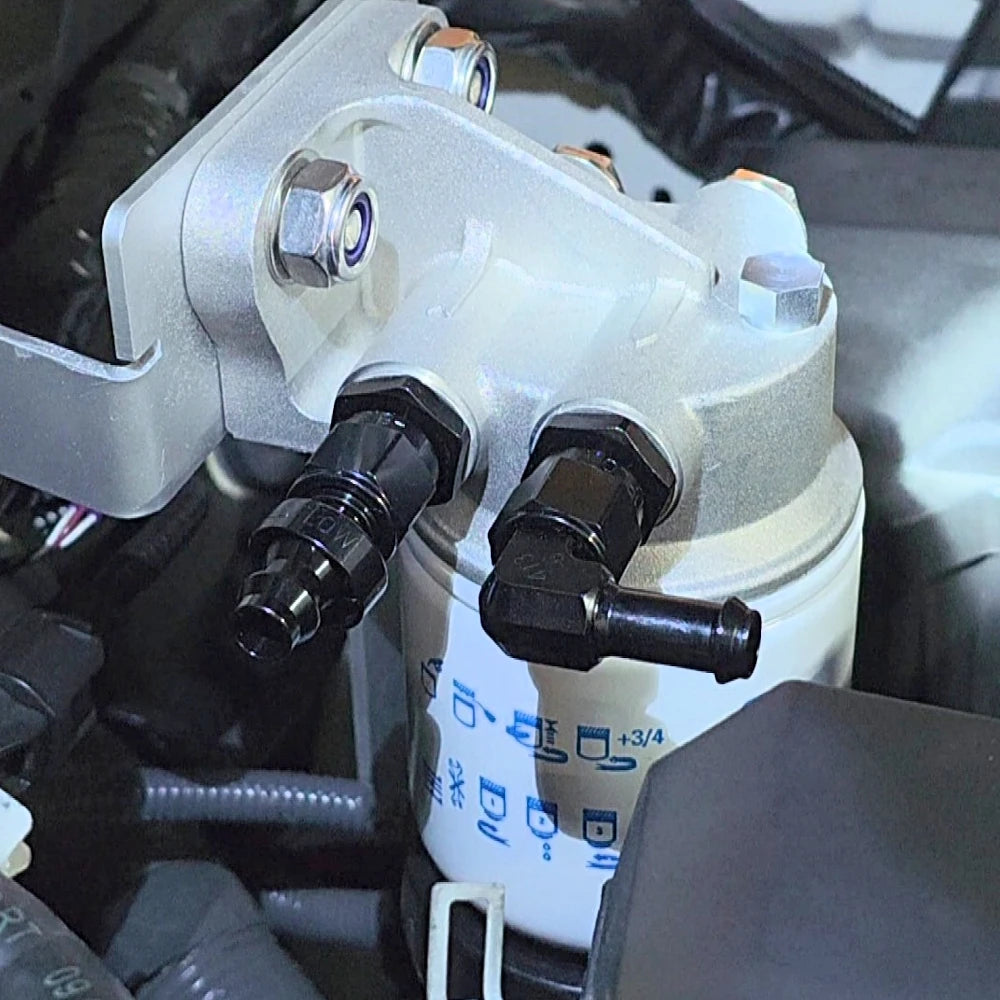

Fuel fittings supplied with Hilux N90 Donaldson pre-filter kit

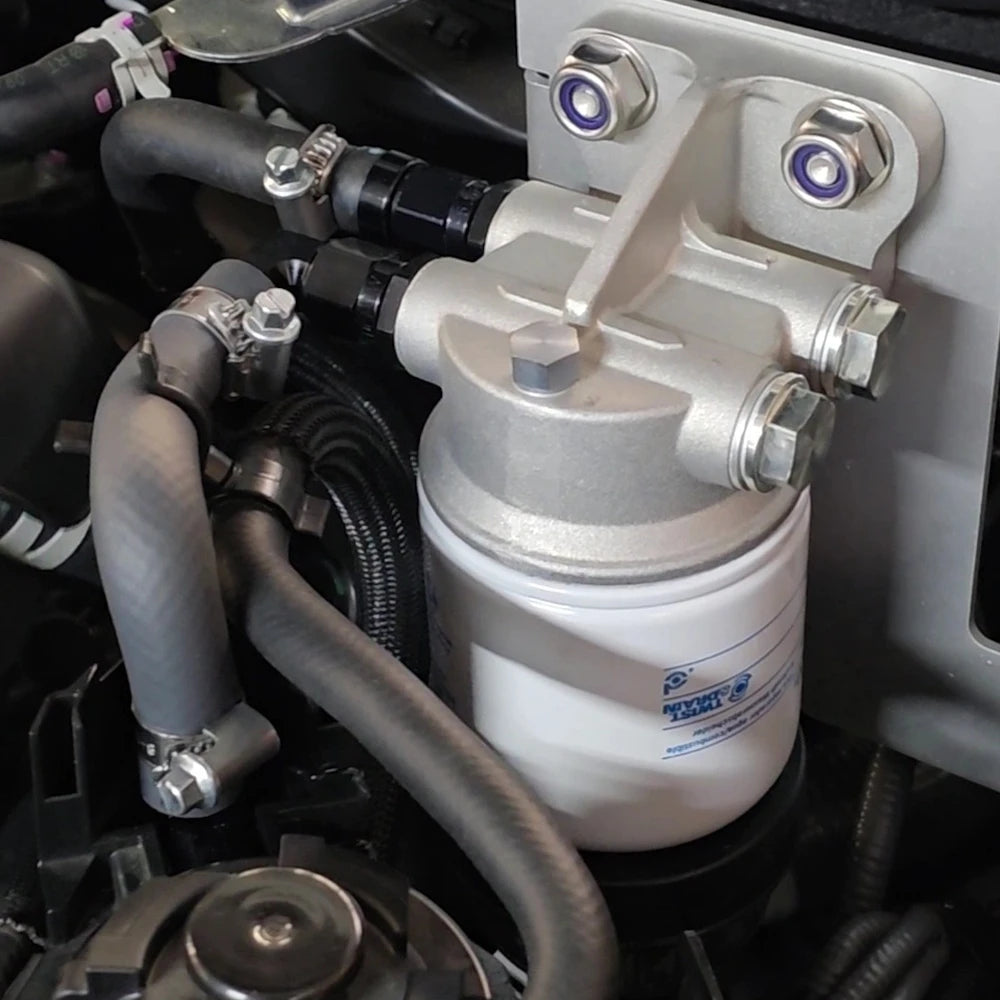

Supplied fuel hose fitted to Hilux N90 1GD-FTV pre-filter
Ask An Expert

Donaldson Pre-Filter Kit to suit Toyota Hilux N90 2.8L 48V 1GD-FTV 2026 onwards (OS-N90-DON)

OS-N90-DON
$400.00 $395.00
  • ✅ 15 micron filtration with 99% efficiency at 10–15 microns
  • ✅ Clear bowl for quick water checks and draining
  • ✅ Protects Hilux N90 common-rail injectors and fuel pump
  • ✅ Extends the life of your factory fuel filter
  • ✅ Vehicle-specific bracket, hoses and fittings included
$395.00

Checkout securley with

payment options
Online payments and cash on pick up available.

  • Description
  • 🛡️ Fitment Advice
  • Description

    • Donaldson Diesel Pre-Filter Kit for the 2026+ Toyota Hilux N90 48V

    The new-generation Toyota Hilux N90 with the 48V 2.8L 1GD-FTV turbo diesel runs a common-rail injection system at extremely high pressure, so even a small amount of water or grit in the fuel can damage injectors and the high-pressure pump. This Donaldson pre-filter kit (part OS-N90-DON) adds a second line of defence in series ahead of the factory fuel filter, catching water, rust and fine particles before they get anywhere near your engine.

    Built specifically for Australian right-hand drive Hilux N90 4x4 models, the kit bolts in with a vehicle-specific bracket and supplied hoses, so there's no guesswork during installation.

    Key Features

    • 15 micron filtration rated at 99% efficiency for particles in the 10 to 15 micron range
    • See-through water bowl lets you spot and drain water quickly
    • Protects common-rail components including injectors and the high-pressure fuel pump
    • Extends factory filter life by stopping contaminants before they reach the OEM filter
    • Maintains fuel flow with no loss of engine performance
    • Vehicle-specific bracket made for the Hilux N90 engine bay

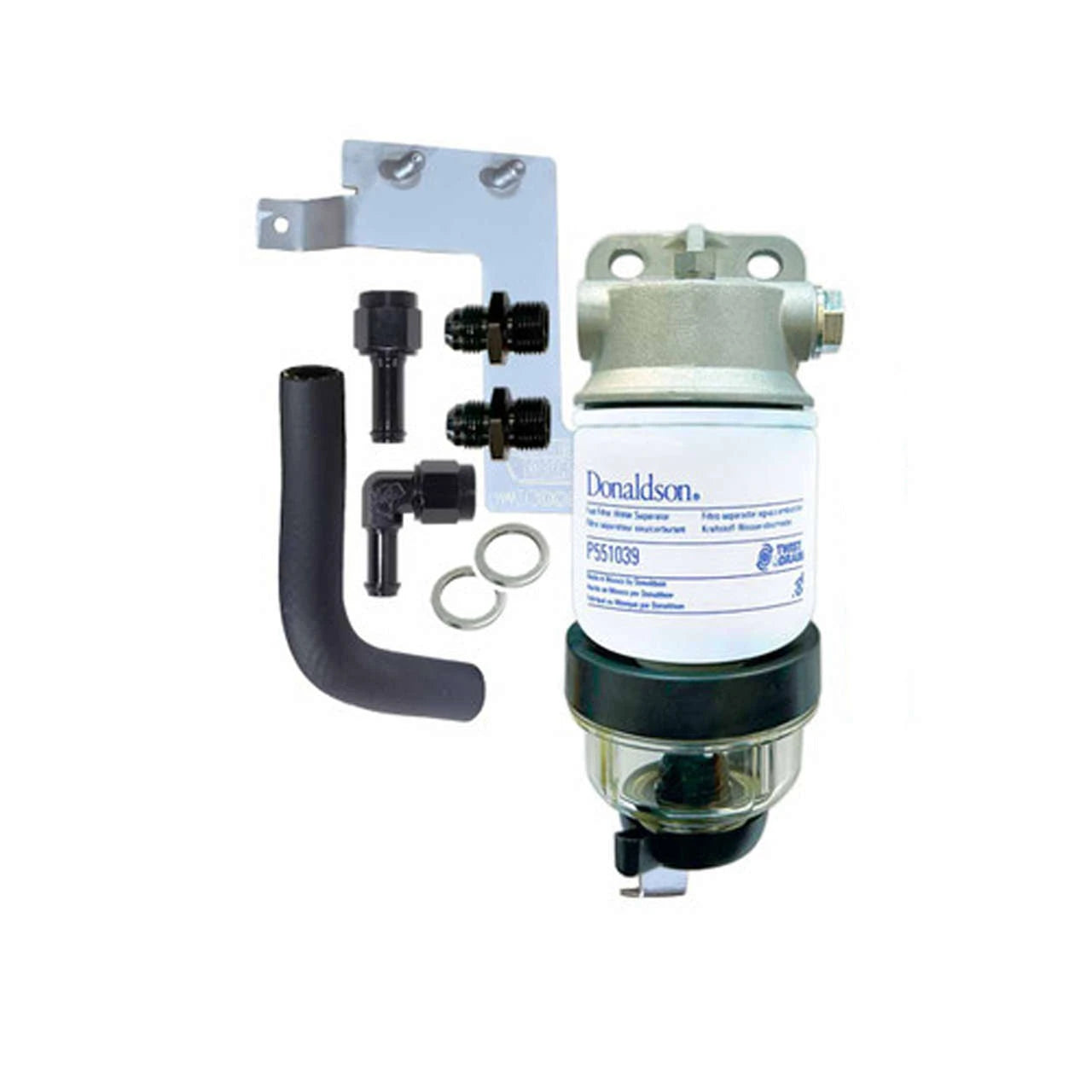

    What's in the Kit

    • Donaldson pre-filter assembly
    • Vehicle-specific mounting bracket
    • Fuel hoses and fittings
    • Clamps and mounting hardware

    Specifications

    • Part number: OS-N90-DON
    • Brand: Donaldson
    • Filtration rating: 15 micron
    • Efficiency: 99% at 10 to 15 microns
    • Weight: 2.30 kg

    Vehicle Fitment

    • Make: Toyota
    • Model: Hilux N90 4x4, 48V
    • Years: 2026 onwards
    • Engine: 1GD-FTV 2.8L 4 cylinder, 16 valve DOHC turbo diesel
    • Suits Australian right-hand drive models

    Servicing and Maintenance

    Drain any water from the clear bowl as soon as it becomes visible, and replace the filter element roughly every 20,000 km or sooner if you regularly fill up in remote areas. Fitting a pre-filter typically won't affect your new vehicle warranty, but it's worth confirming with your dealer.

    Complete Your Hilux N90 Engine Protection

    Pair this pre-filter with the Mann+Hummel ProVent Catch Can Kit for the Hilux 48V 1GD-FTV to keep oil vapour out of your intake, and protect the underside with the Hamer Front Bash Plate for Toyota Hilux N90. Running the previous model? See the Donaldson Pre-Filter Kit for Hilux N80 and Fortuner.

    Covered by the Donaldson product warranty.
