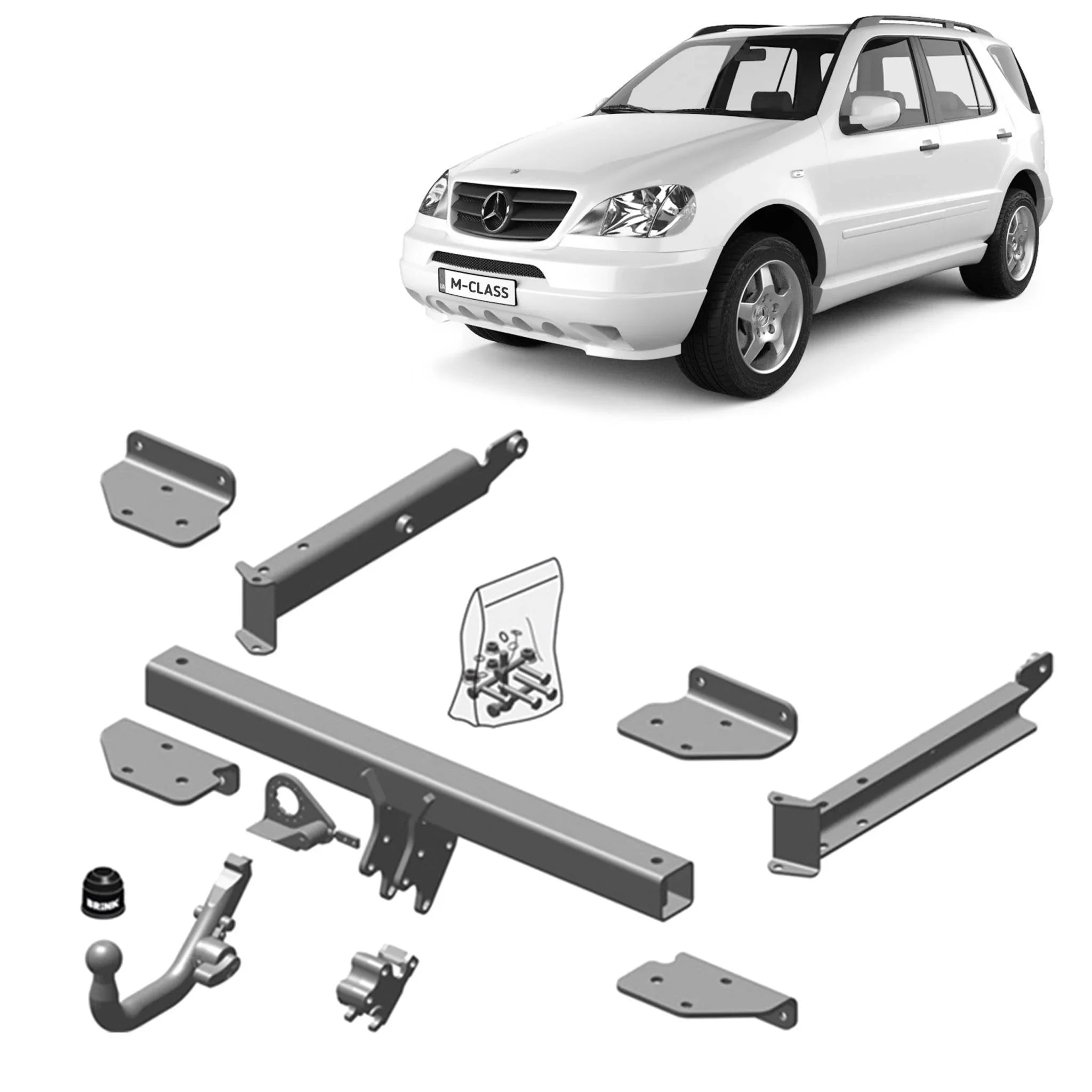

Brink Towbar for MERCEDES-BENZ M-CLASS (07/2005 - 03/2012)
2
sold in last
8
days
BR-443300
$1,209.00
$1,088.50
- ✅ 3500kg trailer weight
- ✅ 140kg tow ball weight
- ✅ Electro-Coated
Payment Options
Fitment Check
Contact our team via our online chat system to get a fitment check for your vehicle. Click 'Text us' below.
Installation
Contact our team via the online chat to get a quote for installation of this product at our partner installers on the Gold Coast.
customers are viewing this product
- Description
- Delivery
- 🛡️ Fitment Advice
- Easy installation of towbar in receiver
- Ergoclick™: Audible and visual indicators confirm safe fixation
- Protected against theft
- Respects the car's design
- Safe and easy operation
- Securely fixed in place simply by pressing the towbar down
- Stowed-away ball is never in the way
You may also need the TAG Universal Wiring Harness
NOTE: Not for amg series, not for amg styling
- Approval Number: e5 00-1495
- Hitch Type: Euro Diagonal Detach
- Coupling Class: A50-X
- Dvalue: 15.4kN
- Foldaway Socketplate: yes
- Towing Capacity: 3500
- Ball Weight: 140
- Towbar Class: European
- Coating: Electro-Coated
| Make | Model | Series | Year From | Year To | Body | Notes | Engine | Engine Capacity | Variant | Transmission | Cylinders |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM642.820 | 3.0L | ML 350 CDI | Automatic | 6 |
| MERCEDES-BENZ | M-CLASS | W164 | 2010 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM642.820 | 3.0L | ML 300 CDI | Automatic | 6 |
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM642.940 | 3.0L | ML 300 CDI | Automatic | 6 |
| MERCEDES-BENZ | M-CLASS | W164 | 2007 | 2011 | Wagon |
Fitment Note: not for AMG series |
M273.963 | 5.5L | ML 500 | Automatic | 8 |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2011 | Wagon |
Fitment Note: not for AMG series |
M113.964 | 5.0L | ML 500 | Automatic | 8 |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2009 | Wagon |
Fitment Note: not for AMG series |
OM642.940 | 3.0L | ML 320 CDI | Automatic | 6 |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2009 | Wagon |
Fitment Note: not for AMG series |
OM642.940 | 3.0L | ML 280 CDI | Automatic | 6 |
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | SUV | OM 642.940 | 3.0L | ML 350 CDI | 6 | ||
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM 642.832 | 3.0L | ML 350 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2011 | 2012 | Wagon |
Fitment Note: not for AMG series |
OM 642.832 | 3.0L | ML 300 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM 642.940 | 3.0L | ML 350 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2009 | 2011 | Wagon |
Fitment Note: not for AMG series |
OM 642.940 | 3.0L | ML 300 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2012 | Wagon |
Fitment Note: not for AMG series |
M 273.963 | 5.5L | ML 500 | 8 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2006 | 2012 | Wagon |
Fitment Note: not for AMG series |
M 156.980 | 6.2L | ML 63 AMG | 8 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2009 | Wagon |
Fitment Note: not for AMG series |
OM 642.940 | 3.0L | ML 280 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2007 | Wagon |
Fitment Note: not for AMG series |
M 113.964 | 5.0L | ML 500 | 8 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2012 | Wagon |
Fitment Note: not for AMG series |
M 272.967 | 3.5L | ML 350 | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2012 | Wagon |
Fitment Note: not for AMG series |
M 272.962 | 3.5L | ML 350 | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2005 | 2009 | Wagon |
Fitment Note: not for AMG series |
OM 642.940 | 3.0L | ML 320 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2011 | 2012 | Wagon |
Fitment Note: not for AMG series |
OM 642.820 | 3.0L | ML 300 CDI | 6 | |
| MERCEDES-BENZ | M-CLASS | W164 | 2011 | 2012 | Wagon |
Fitment Note: not for AMG series |
3.0L | ML 300 CDI | 6 |
For TAG & Brink Towbars, an additional shipping fee may apply based on the product's weight/size and the delivery location. You can easily calculate this shipping cost either in your shopping CART or during CHECKOUT, ensuring full transparency and no surprises.
Deliveries are usually despatched next working day, with our warehouses located in Brisbane, Melbourne & Perth.
Our TAG & Brink stock levels are live, so if you see the item available its ready to be despatched!
🤔 Need help? If you need help with shipping or choosing the right towbar for your vehicle contact our team via the online chat, click 'Text us' button at the bottom of your screen.
Our team are available on online chat to help you select the right products for your vehicle. Click on 'Text Us' button at the bottom of the page now to start chatting.
Not for amg series, not for amg styling
MERCEDES-BENZ M-CLASS (02/2005 - 12/2011)
Specifications
- Towbar Class: European
- Towbar Capacity [kg]: 3500
- Hitch Type: Euro Diagonal Detach
- Coupling Class: A50-X
- Coating: Electro-Coated
- Approval Number: e5 00-1495
- D-Value: 15.4kN
- Foldaway Socketplate: yes
- Ball Weight [kg]: 140
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 | OM642.820 | 3.0L | Diesel | ML 300 CDI | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 (164.121) | OM 642.820 | 3.0L | Diesel | ML 300 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 (164.121) | OM 642.820 | 3.0L | Diesel | ML 300 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 (164.121) | OM 642.820 | 3.0L | Diesel | ML 300 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 (164.124, 164.125) | OM 642.820 | 3.0L | Diesel | ML 350 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2010 | 12/2011 | Wagon | W164 (164.124, 164.125) | OM 642.820 | 3.0L | Diesel | ML 350 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 09/2009 | 12/2011 | Wagon | W164 | OM642.820 | 3.0L | Diesel | ML 350 CDI | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 07/2009 | 12/2011 | SUV | W164 | OM 642.940 | 3.0L | Diesel | ML 350 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 07/2009 | 12/2011 | Wagon | W164 | OM642.940 | 3.0L | Diesel | ML 300 CDI | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 07/2009 | 12/2011 | Wagon | W164 (164.120) | OM 642.940 | 3.0L | Diesel | ML 300 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 12/2007 | 12/2011 | Wagon | W164 | M273.963 | 5.5L | Petrol | ML 500 | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 01/2006 | 12/2011 | Wagon | W164 (164.177) | M 156.980 | 6.2L | Petrol | ML 63 AMG | AWD |
| MERCEDES-BENZ | M-CLASS | 09/2005 | 12/2011 | Wagon | W164 (164.172) | M 273.963 | 5.5L | Petrol | ML 500 | AWD |
| MERCEDES-BENZ | M-CLASS | 07/2005 | 12/2011 | Wagon | W164 | M113.964 | 5.0L | Petrol | ML 500 | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 07/2005 | 12/2011 | Wagon | W164 (164.175) | M 113.964 | 5.0L | Petrol | ML 500 | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2005 | 12/2011 | Wagon | W164 (164.186) | M 272.967 | 3.5L | Petrol | ML 350 | AWD |
| MERCEDES-BENZ | M-CLASS | 02/2005 | 12/2011 | Wagon | W164 (164.186) | M 272.967 | 3.5L | Petrol | ML 350 | AWD |
| MERCEDES-BENZ | M-CLASS | 09/2005 | 07/2009 | Wagon | W164 (164.120) | OM 642.940 | 3.0L | Diesel | ML 280 CDI | AWD |
| MERCEDES-BENZ | M-CLASS | 07/2005 | 07/2009 | Wagon | W164 | OM642.940 | 3.0L | Diesel | ML 280 CDI | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 07/2005 | 07/2009 | Wagon | W164 | OM642.940 | 3.0L | Diesel | ML 320 CDI | Automatic 4WD |
| MERCEDES-BENZ | M-CLASS | 07/2005 | 07/2009 | Wagon | W164 (164.122) | OM 642.940 | 3.0L | Diesel | ML 320 CDI | AWD |
TAG Universal Wiring Harness
TAG Universal Towbar Wiring Harness
1. Can I install the towbar myself?
Yes - While we always recommend having a professional install your towbar for optimal safety and performance, it is possible to install it yourself. Detailed fitment instructions are included with each towbar to guide you through the process.
2. Does the towbar come with wiring?
Towbar wiring is typically sold separately. However, we offer some towbar kits that include both the wiring and plug. If the wiring is included, it will be clearly mentioned in the product title and detailed in the description. For other towbars, wiring can be added as an optional accessory on most product pages.
3. Does the towbar come with all the bolts and parts needed for installation?
Yes, each towbar comes complete with all the necessary bolts and hardware required for fitting to your vehicle, along with clear installation instructions to guide you through the process.
