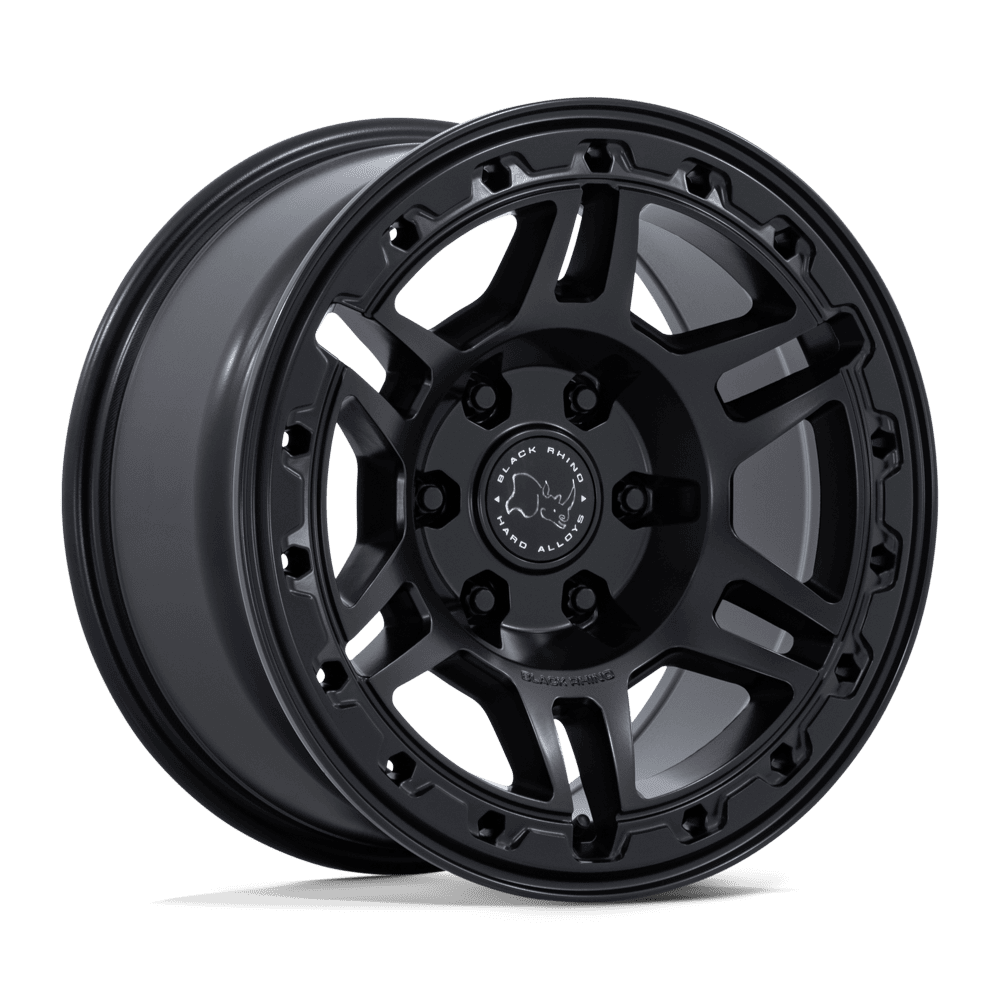

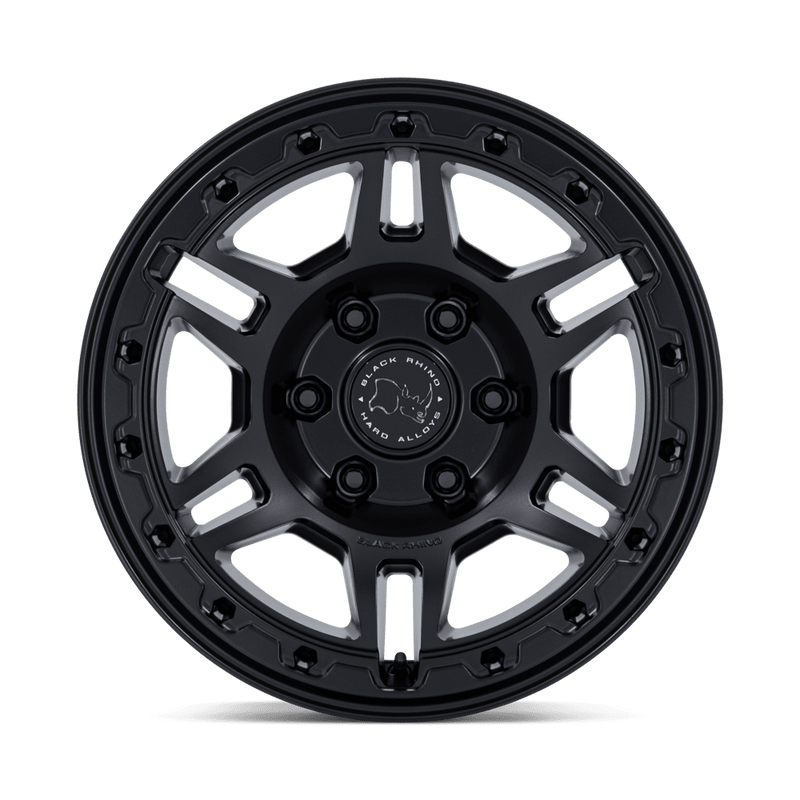

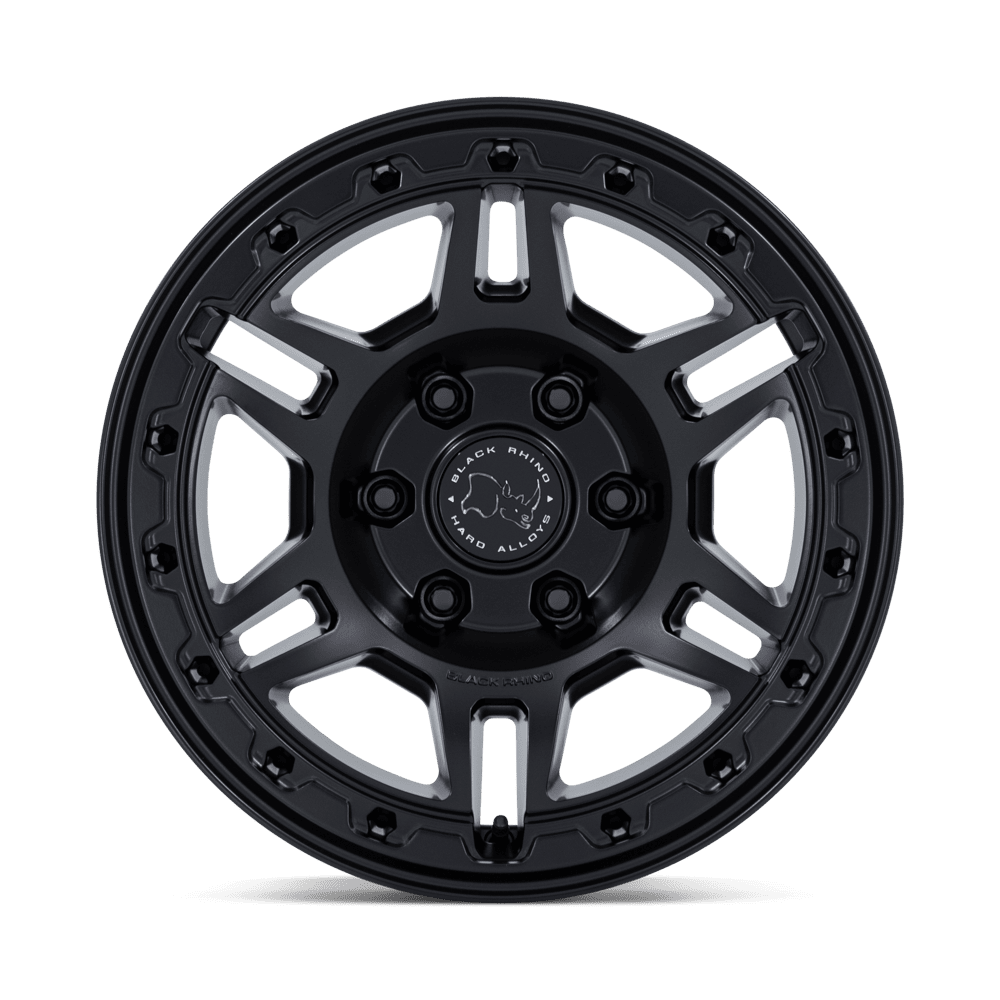

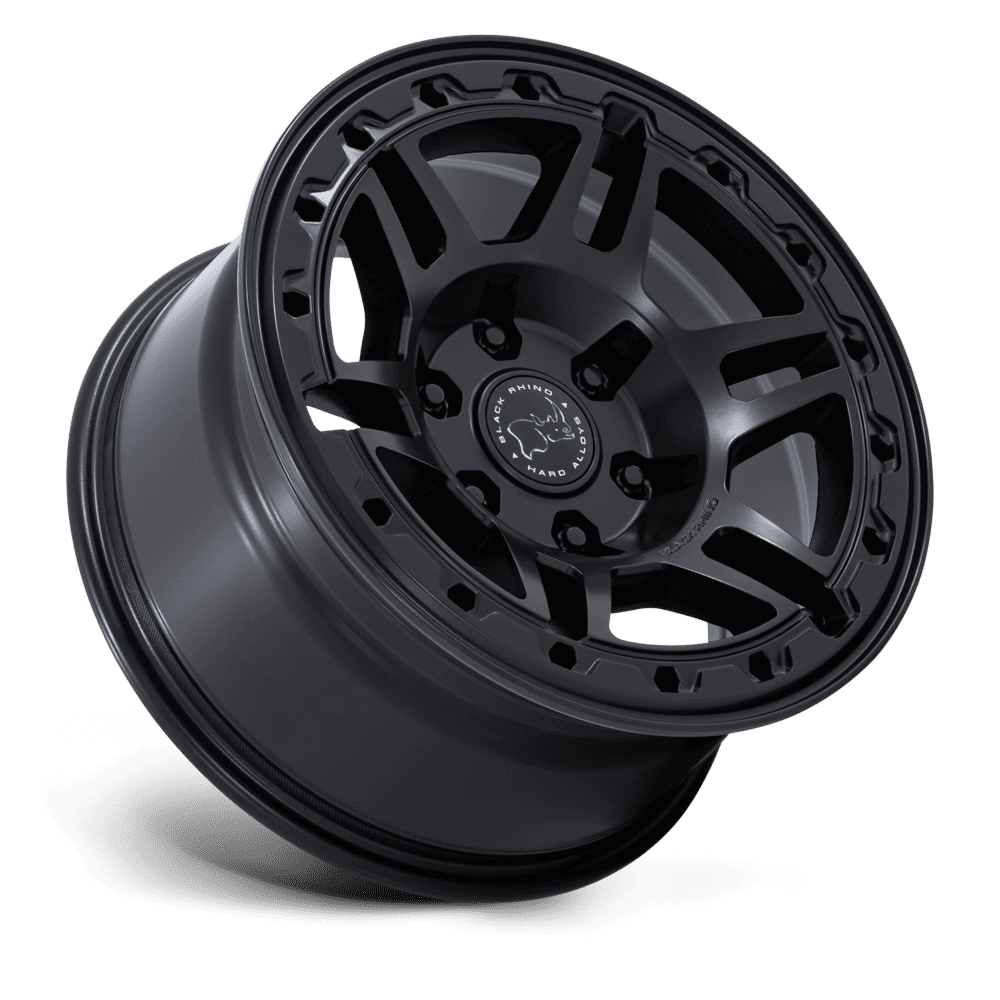

Black Rhino Vanguard BR039 - Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Black Rhino Vanguard BR039 is a wheel that makes its presence felt. A slotted 6-spoke design with a concave profile and robust cast construction gives the Vanguard a bold, aggressive stance that suits trucks and 4WDs that aren’t afraid to stand out. It’s a wheel with genuine Black Rhino attitude — designed for builds that want a strong visual statement without sacrificing the fitment flexibility needed to get the stance right.
The Matte Black finish is the natural starting point for the Vanguard’s bold design. Flat, tough, and completely unfussy — it lets the spoke architecture and concave profile do the talking without the distraction of a polished surface. It pairs with virtually any vehicle colour and holds up in the kind of conditions that put lesser finishes to the test. Whether you’re running it on a daily commute or a weekend at the campsite, Matte Black on the Vanguard is a clean, confident choice.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8 | 6X114.3 | 5.76 | 32mm | 66.06 | 33.66 lbs | 3300 |
| 17X8 | 6X139.7 | 5.76 | 32mm | 106.1 | 32.56 lbs | 3300 |
| 17X8.5 | 6X130 | 5.73 | 25mm | 84.1 | 33.44 lbs | 3300 |
| 17X8.5 | 6X135 | 5.73 | 25mm | 87.1 | 33.44 lbs | 3300 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 33.00 lbs | 3300 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 33.00 lbs | 3300 |
| 20X9 | 5X130 | 5.59 | 15mm | 81.4 | 40.70 lbs | 3300 |
| 20X9 | 6X114.3 | 5.59 | 15mm | 66.06 | 40.70 lbs | 3300 |
| 20X9 | 6X130 | 5.59 | 15mm | 84.1 | 40.26 lbs | 3300 |
| 20X9 | 6X139.7 | 5.59 | 15mm | 106.1 | 39.60 lbs | 3300 |
Key Features
- Slotted 6-spoke concave design — bold, aggressive profile with genuine Black Rhino attitude that suits trucks and 4WDs that want to stand out
- Robust cast construction — built for strength and durability across both on-road and off-road applications
- Matte Black finish — flat, durable, and versatile — pairs with any build colour and holds up in real-world conditions
- Available in 17” and 20” — 6-lug bolt patterns including 6X114.3, 6X130, 6X135, and 6X139.7, plus 5X130 in 20”
- Offset range from 0mm to +32mm — suits everything from performance-minded fitments to stylish street setups
- 3300kg load rating — built to handle the demands of a loaded truck or 4WD setup
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
