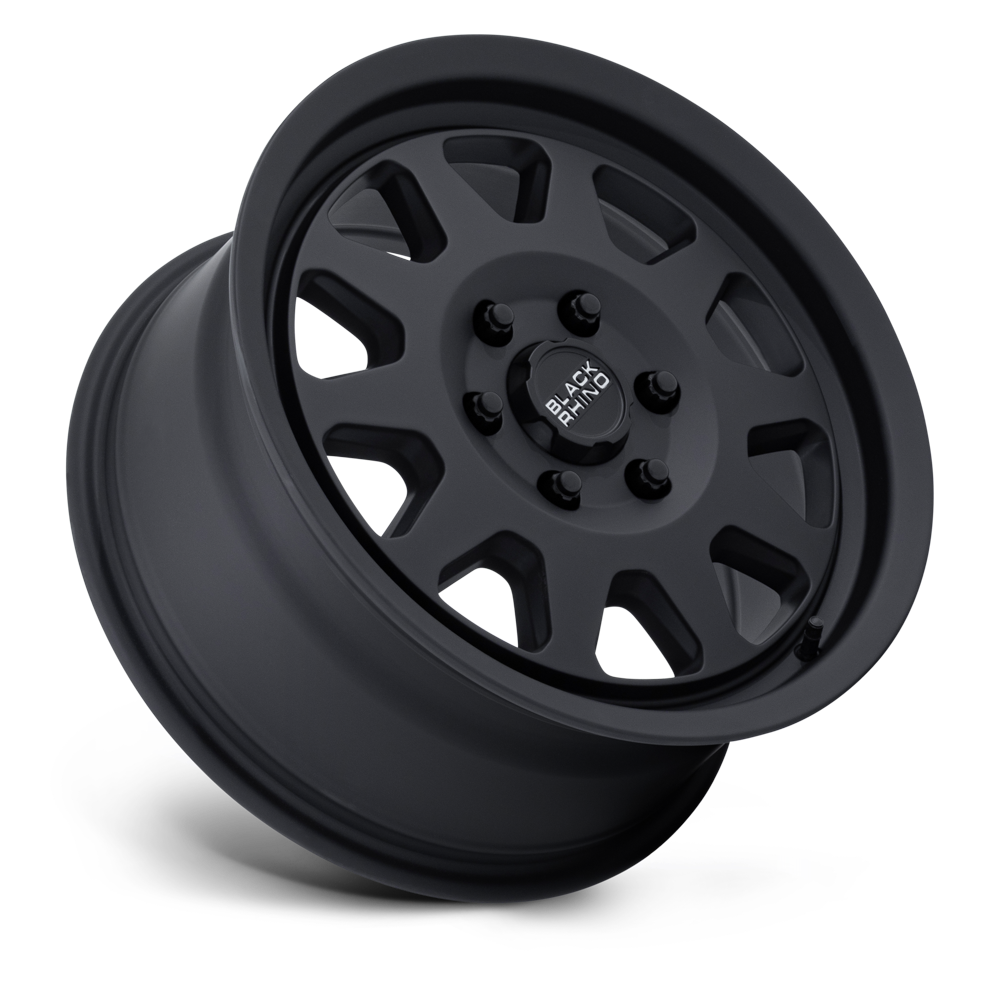

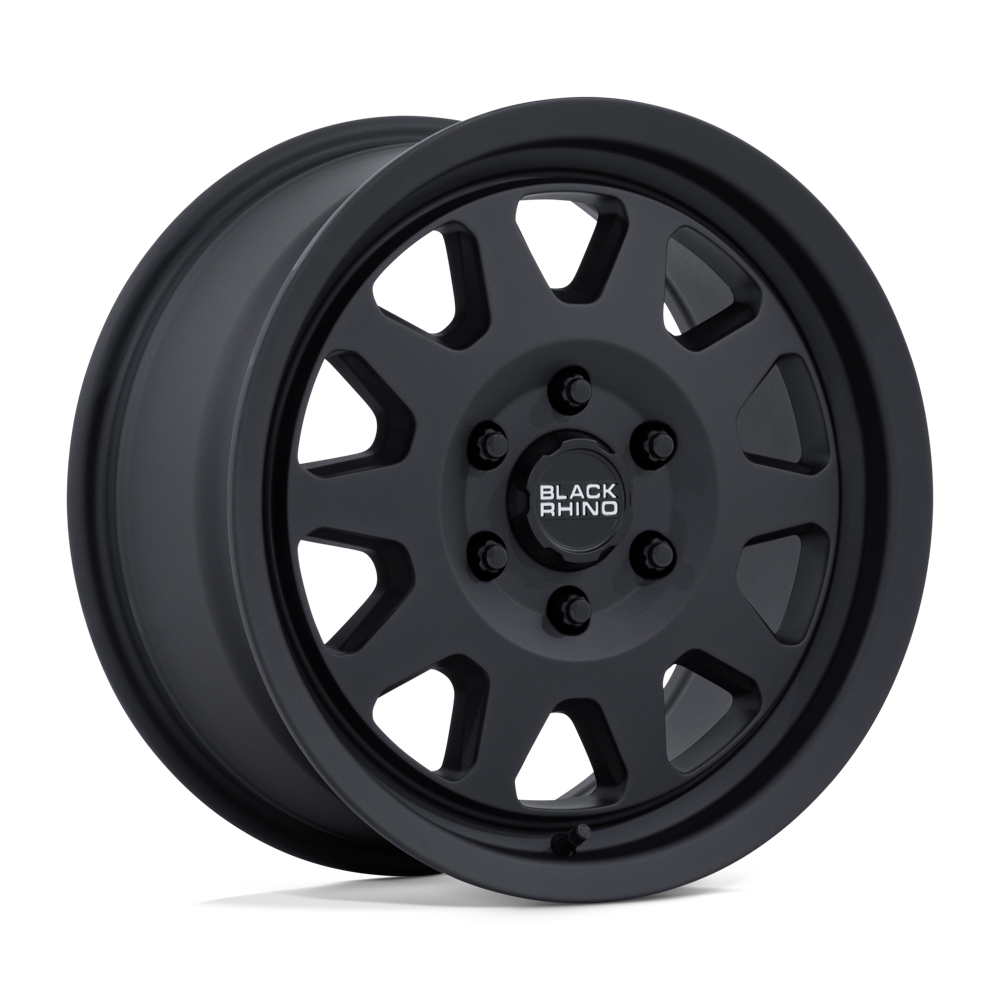

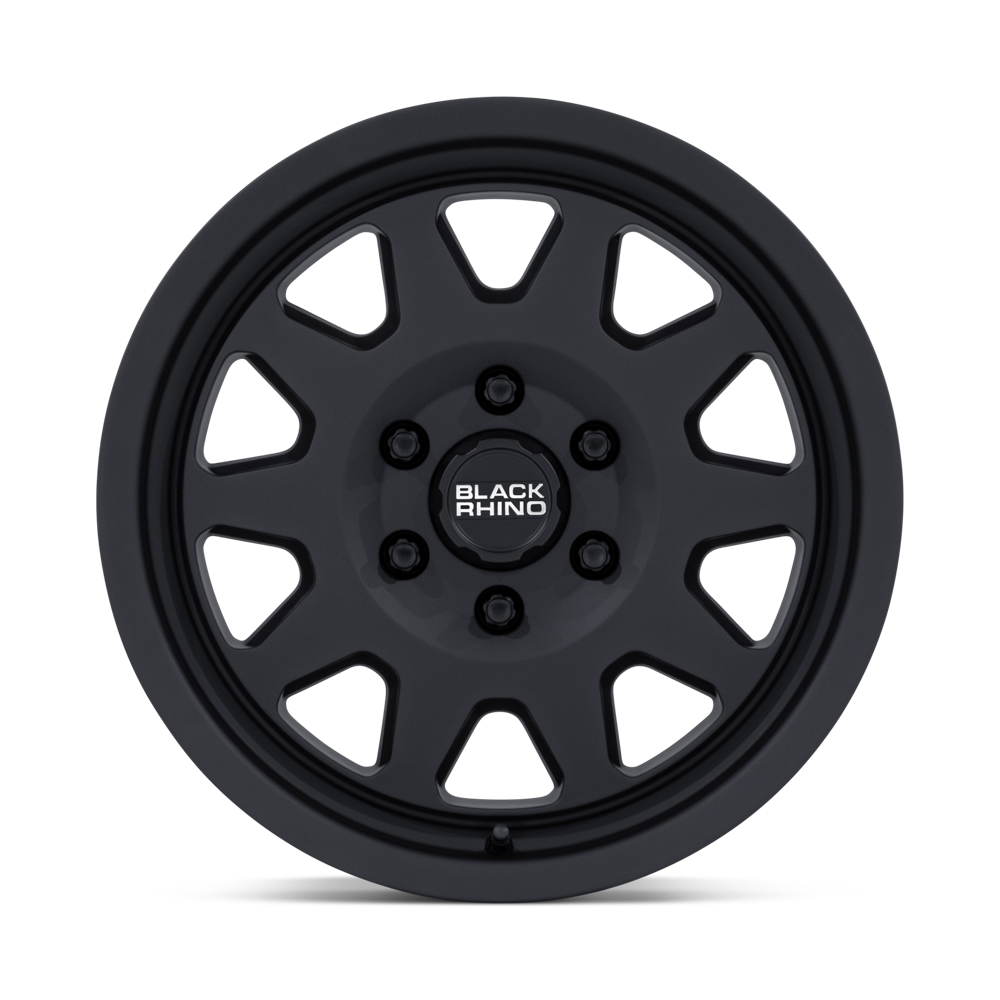

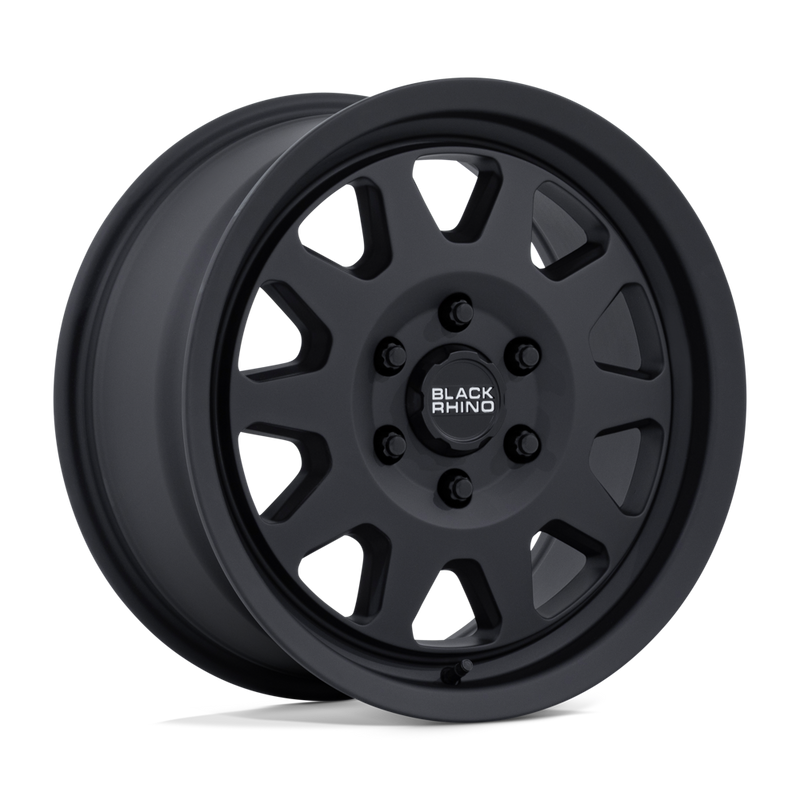

The Black Rhino Stadium is a wheel that earns its reputation across the full spectrum of 4WD and truck applications. A clean 10-spoke monoblock design with a minimalist spoke profile and flat face keeps the weight down and the strength up β built using Flow Formed Technology for a genuine performance advantage over standard cast wheels. The weight saving is concentrated in the outer rim where it matters most, reducing rotational mass and improving vehicle response on and off the road. Available in 16β and 17β sizing across an exceptionally broad range of bolt patterns including 5X114.3, 5X130, 5X135, 5X150, 5X160, 6X114.3, 6X130, 6X135, and 6X139.7, the Stadium covers more fitment ground than almost any other wheel in its class.
The Matte Black finish suits the Stadiumβs purposeful, no-nonsense character perfectly. Flat, tough, and completely at home in the field β it lets the 10-spoke design and flat face profile do the talking without the distraction of a polished surface. It pairs with virtually any vehicle colour and holds up in the kind of conditions that put lesser finishes to the test. A practical detail worth noting: 17β Stadium wheels in 6X139.7 fitment come with a wider flat center cap with silver lettering that is also engineered to accept the OE Toyota Racing Development (TRD) center cap β a considered touch for Toyota Land Cruiser and Hilux builds that want a factory-integrated look.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 16X8 | 5X114.3 | 4.11 | -10mm | 76.1 | 25.00 lbs | 2450 |
| 16X8 | 5X135 | 4.11 | -10mm | 87.1 | 25.00 lbs | 2450 |
| 16X8 | 6X130 | 6.27 | 45mm | 84.1 | 23.00 lbs | 3300 |
| 16X8 | 6X139.7 | 5.88 | 35mm | 112.1 | 23.00 lbs | 3300 |
| 16X8 | 6X139.7 | 4.11 | -10mm | 112.1 | 25.00 lbs | 2450 |
| 17X8 | 5X130 | 6.27 | 45mm | 78.1 | 26.00 lbs | 3300 |
| 17X8 | 5X160 | 6.27 | 45mm | 65.07 | 26.00 lbs | 3300 |
| 17X8 | 6X130 | 6 | 38mm | 84.1 | 26.00 lbs | 3300 |
| 17X8 | 6X130 | 6.27 | 45mm | 84.1 | 26.00 lbs | 3300 |
| 17X8 | 6X139.7 | 5.88 | 35mm | 112.1 | 26.00 lbs | 3300 |
| 17X8.5 | 5X150 | 5.14 | 10mm | 110.1 | 26.00 lbs | 2450 |
| 17X8.5 | 6X114.3 | 4.75 | 0mm | 76.1 | 26.00 lbs | 2450 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 112.1 | 26.00 lbs | 2450 |
| 17X9 | 6X135 | 5.47 | 12mm | 87.1 | 27.00 lbs | 2450 |
| 17X9.5 | 6X139.7 | 4.54 | -18mm | 112.1 | 28.00 lbs | 2450 |
Β
Key Features
- Clean 10-spoke monoblock design with flat face profile β minimalist spoke style that maintains strength while reducing overall weight β purposeful and at home on trail rigs and daily drivers alike
- Flow Formed Technology β lighter and stronger than a standard cast wheel, with the weight saving concentrated in the outer rim for a genuine reduction in rotational mass and improved vehicle performance
- Matte Black finish β flat, durable, and versatile β pairs with any build colour and holds up in real-world on and off-road conditions
- TRD center cap compatible β 17β Stadium wheels in 6X139.7 fitment include a wider flat center cap with silver lettering engineered to accept the OE Toyota Racing Development (TRD) center cap
- Exceptionally broad fitment range β available in 16β and 17β across 5X114.3, 5X130, 5X135, 5X150, 5X160, 6X114.3, 6X130, 6X135, and 6X139.7 bolt patterns with load ratings up to 3,300 lb
- Wide vehicle compatibility β suits Toyota Land Cruiser, Hilux, Prado, Nissan Patrol, Ford Ranger, Mercedes Sprinter, Ineos Grenadier, Jeep Wrangler, and more
Expert Help β Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards β so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
Free delivery is not available on Wheels & Tyres.
| Wheels | Wheels | Rims, Wheels, Tyres | Price per wheel varies depending on wheel weight and shipping destination. Shipping costs for East coast of Australia start at approx. $20 per wheel. |
Free is not available on Wheels & Tyres.
FREIGHT COSTS CAN BE CALCULATED IN THE CART OR CHECKOUT
* Oversize, heavy or bulky items are excluded from free freight. Costs will vary depending on delivery location.
| Shipping Category | Description | Example | Estimate Costs |
| Standard | General items | Camping gear, lights, electrical |
$15 to FREE
|
| Oversize Items - 1 | Large items, low weight | Flares, large roof racks | $45 - $90 |
| Oversize Items - 2 | Medium size, heavy items | Winches, bash plates, lift kits | $50 - $100 |
| Oversize Items - 3 | Long / oversize items | Awnings, long cross bars | $50 - $200 |
| Oversize Items - 4 | Over 25kgs or very large | Large bike racks | $100 - $200 |
| Oversize Items - 5 | Large - delivery to commercial address only | Roller covers & lids | $50 - $100 |
| Wheels | Wheels | Rims, Wheels, Tyres | From. $20 per wheel |
| Towing | Towing | Towbars, hitches | From $40 per delivery, depending on product size and destination. |
| Protection | Protection | Bullbars, rear bars, side steps, nudge bars | From $100 per delivery, depending on product size and destination. |
#excludes remote or island locations. Some products are not available for delivery to NT, WA or TAS.
USA & New Zealand Freight Available
Rates as per Australia Post calculator, available in the Cart/Checkout.
Wheels & Tyres
Wheel & tyre freight charges vary depending on the quantity purchased. The online freight calculator at checkout will provide accurate price, dependent upon total weight of the goods purchased. Minimum freight is $20 for 1 wheel or tyre. Online wheel & tyres orders can only be purchased for QLD, NSW, VIC and ACT. For all other orders please email or call our team.
