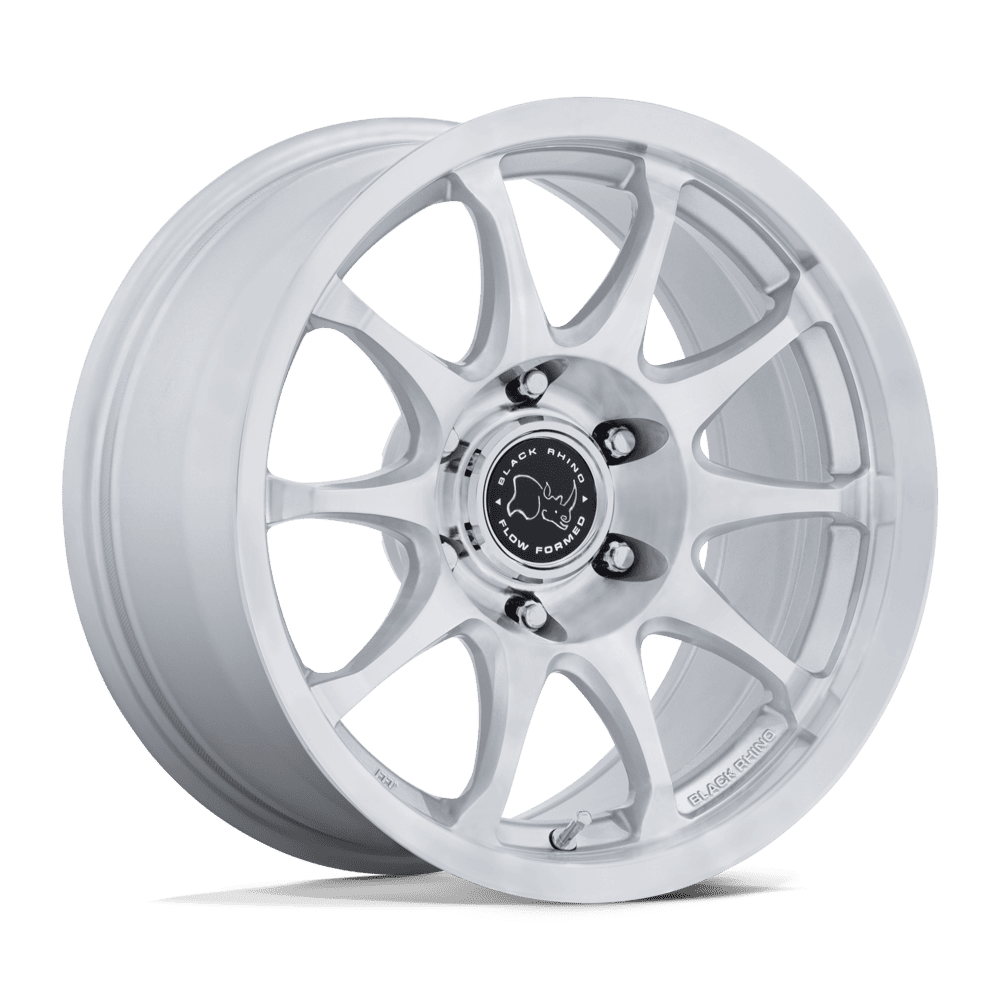

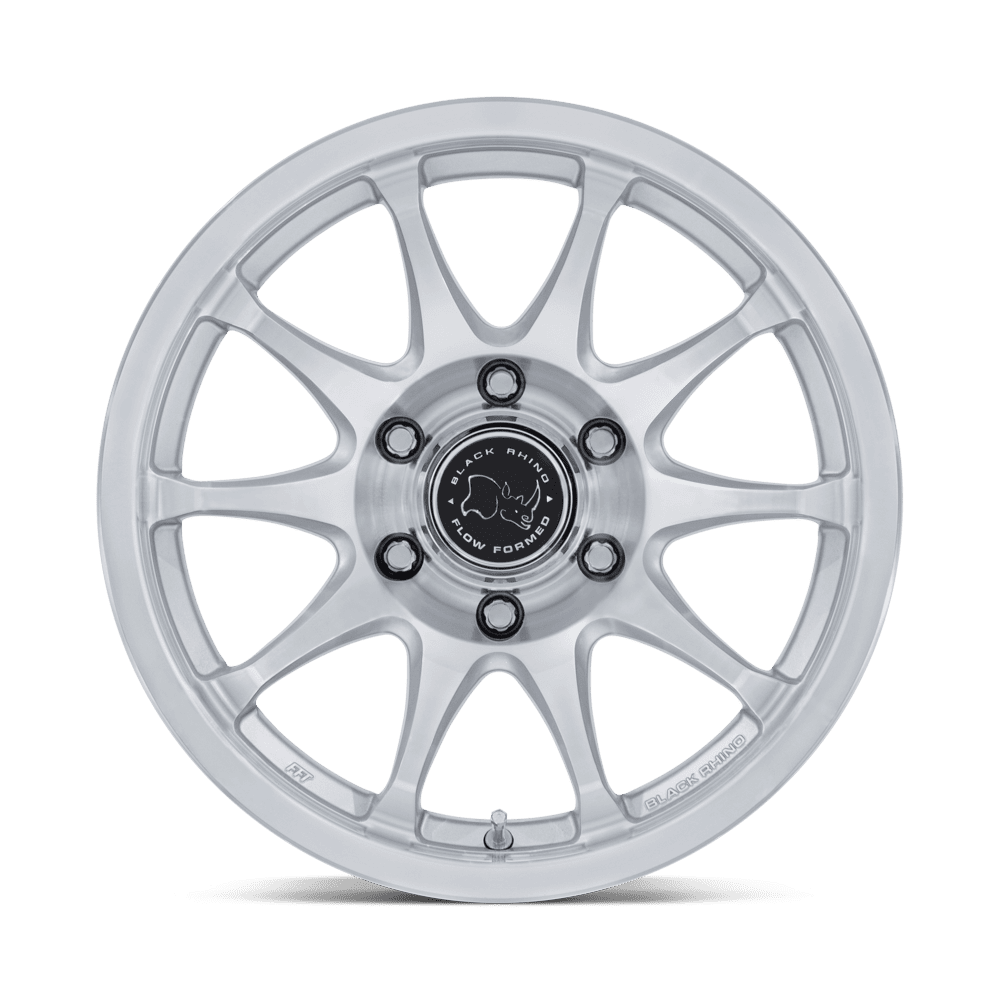

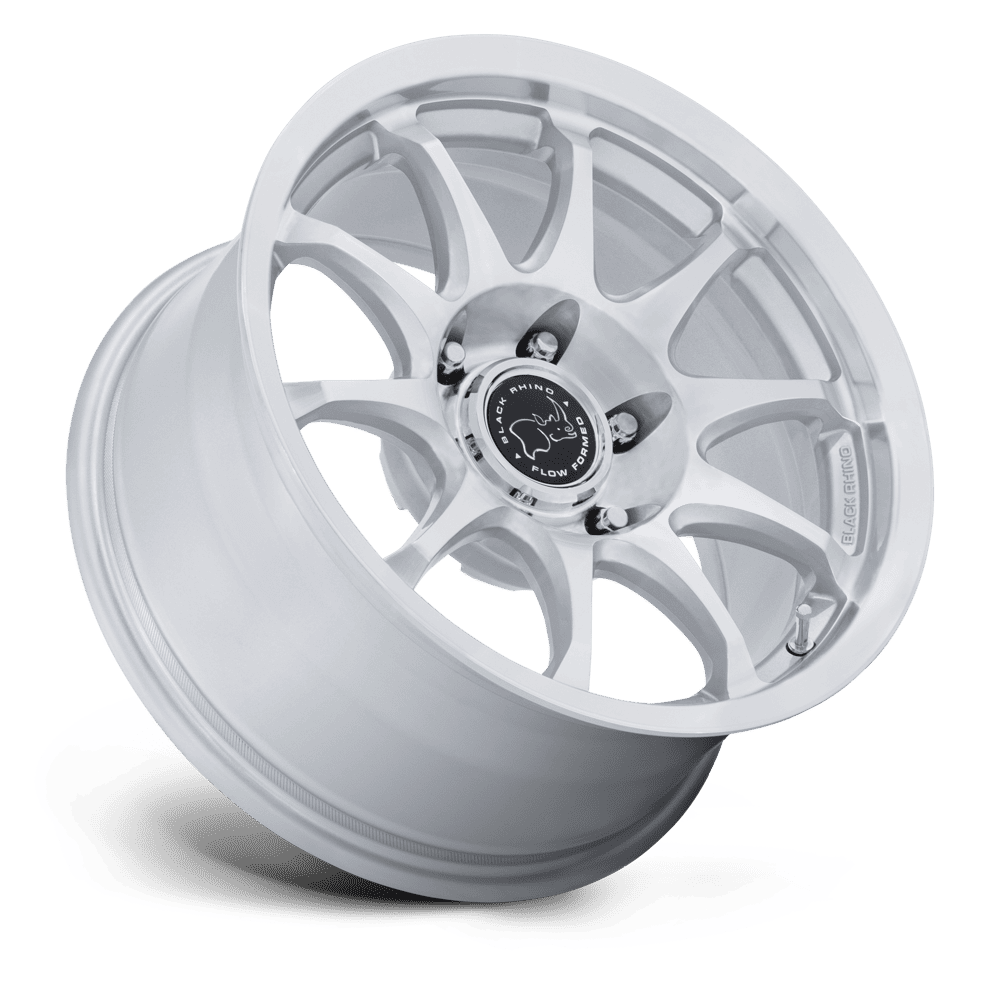

Black Rhino Ronin BR038 - Gloss Silver w/ Machined Face
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Black Rhino Ronin BR038 is built for drivers who want a tough look without the weight penalty. Using Flow Formed Technology (FFT), the Ronin comes in at a lean 22–24 lbs depending on fitment — helping to offset the added mass of larger off-road tyres. That lighter unsprung weight translates to faster acceleration, improved fuel efficiency, and less stress on your drivetrain over the long haul. The Ronin is also equipped with the Bead Retention System (BRS), so you can air down for better grip on the trails with total confidence. A clean 10-spoke design and a strong 2,650 lb load rating round out a wheel that delivers pro-level performance without the extra bulk. Available in 17” with 5-lug and 6-lug bolt patterns across 0mm and +25mm offsets.
The Gloss Silver w/ Machined Face finish suits the Ronin’s no-nonsense character perfectly. Flat, tough, and completely at home in the field — it lets the 10-spoke design do the talking without the distraction of a polished surface. It pairs with virtually any vehicle colour and holds up in the kind of conditions that put lesser finishes to the test. Whether you’re running it on a daily driver or a dedicated trail rig, Matte Black on the Ronin is a clean, purposeful choice.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 5X127 | 4.75 | 0mm | 71.5 | 24.20 lbs | 2650 |
| 17X8.5 | 6X114.3 | 5.73 | 25mm | 66.06 | 22.66 lbs | 2650 |
| 17X8.5 | 6X135 | 5.73 | 25mm | 87.1 | 22.66 lbs | 2650 |
| 17X8.5 | 6X135 | 4.75 | 0mm | 87.1 | 24.20 lbs | 2650 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 23.32 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 22.00 lbs | 2650 |
Key Features
- Flow Formed Technology (FFT) — heat and pressure forming process delivers a wheel that’s approximately 15% lighter than standard cast construction without sacrificing strength
- Bead Retention System (BRS) — engineered for airing down on the trail with confidence, keeping the tyre seated under low-pressure off-road conditions
- Clean 10-spoke design — purposeful, no-nonsense face that suits lifted 4WDs and trail rigs without overcomplicating the build
- Gloss Silver w/ Machined Face finish — flat, durable, and versatile — pairs with any build colour and holds up in real-world on and off-road conditions
- Available in 17” — 5-lug and 6-lug bolt patterns including 5X127, 6X114.3, 6X135, and 6X139.7 at 0mm and +25mm offsets
- 2,650 lb load rating — built to handle the demands of a loaded 4WD or trail rig setup
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
