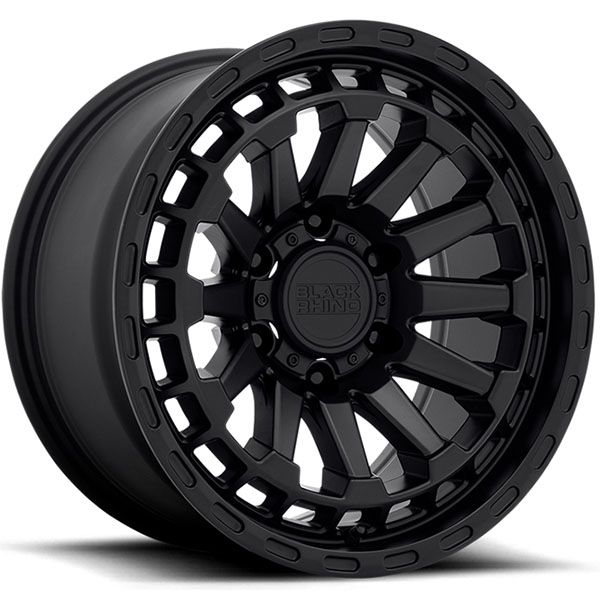

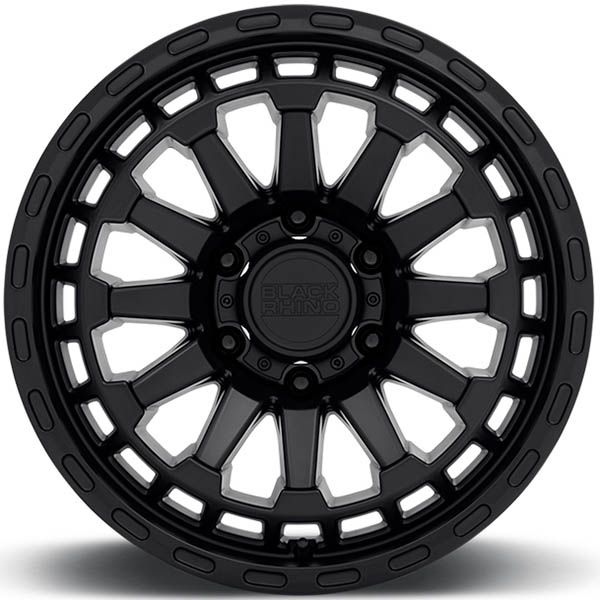

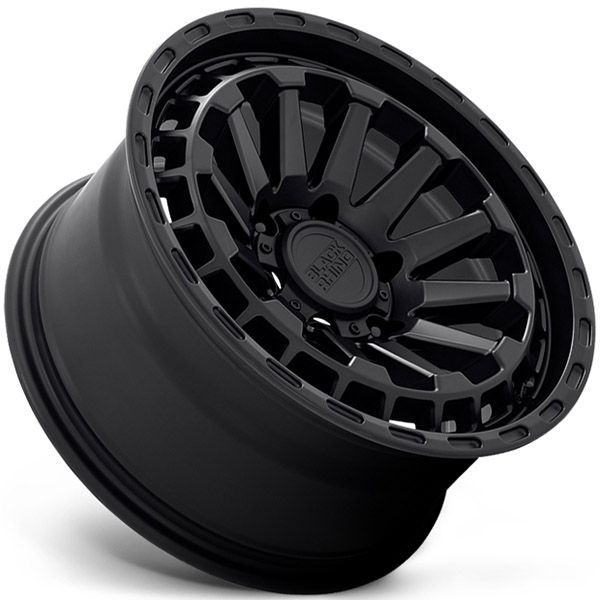

Black Rhino Raid BRRAD - Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Black Rhino Raid BRRAD is built for the driver who doesn’t want to choose between the street and the trail. A concave multi-spoke design with an accented lip gives the Raid its distinctive, purposeful look — aggressive enough to turn heads on the road, tough enough to back it up when the bitumen runs out. As a monoblock construction, it’s engineered to handle the demands of a loaded 4WD without adding unnecessary weight to the equation.
The Matte Black finish is the go-to choice for builds that mean business. Flat, non-reflective, and tough — it pairs with virtually any vehicle colour and holds up well in the kind of conditions that would ruin a polished finish. Whether you’re running it on a daily driver or a dedicated weekend rig, the Raid in Matte Black is a clean, no-nonsense choice that lets the design do the talking.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 5X127 | 4.75 | 0mm | 71.5 | 28.00 lbs | 2500 |
| 17X8.5 | 5X127 | 4.04 | -18mm | 71.5 | 28.00 lbs | 2250 |
| 17X8.5 | 6X114.3 | 4.75 | 0mm | 76.1 | 28.00 lbs | 2500 |
| 17X8.5 | 6X120 | 4.75 | 0mm | 67.06 | 28.00 lbs | 2500 |
| 17X8.5 | 6X135 | 4.04 | -18mm | 87.1 | 28.00 lbs | 2500 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 112.1 | 28.00 lbs | 2500 |
| 17X8.5 | 6X139.7 | 4.04 | -18mm | 112.1 | 28.00 lbs | 2500 |
| 18X9.5 | 5X127 | 4.54 | -18mm | 71.5 | 33.00 lbs | 2250 |
| 18X9.5 | 5X127 | 5.33 | 2mm | 71.5 | 33.00 lbs | 2250 |
| 18X9.5 | 6X135 | 5.72 | 12mm | 87.1 | 33.00 lbs | 2500 |
| 18X9.5 | 6X139.7 | 5.72 | 12mm | 112.1 | 33.00 lbs | 2500 |
| 18X9.5 | 6X139.7 | 4.54 | -18mm | 112.1 | 33.00 lbs | 2500 |
| 20X9.5 | 6X135 | 5.72 | 12mm | 87.1 | 39.00 lbs | 2500 |
| 20X9.5 | 6X139.7 | 5.72 | 12mm | 112.1 | 39.00 lbs | 2500 |
| 20X9.5 | 6X139.7 | 4.54 | -18mm | 112.1 | 39.00 lbs | 2500 |
Key Features
- Concave multi-spoke design with accented lip — aggressive, trail-ready profile that looks as good on the street as it does on the tracks
- Monoblock construction — single-piece build for strength, reliability, and a clean finish without seams or hardware
- Wide size and fitment range — available in 17”, 18”, and 20” across 5-lug and 6-lug bolt patterns to suit a broad range of trucks and 4WDs
- Matte Black finish — flat, durable, and versatile — pairs with any build colour and holds up in harsh conditions
- Broad vehicle compatibility — suits Toyota, Nissan, Ford, Jeep, GM, and more across multiple bolt patterns
- Available in multiple finishes — also offered in Matte Bronze, Gold, and Gloss Red for builds that want more colour
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
