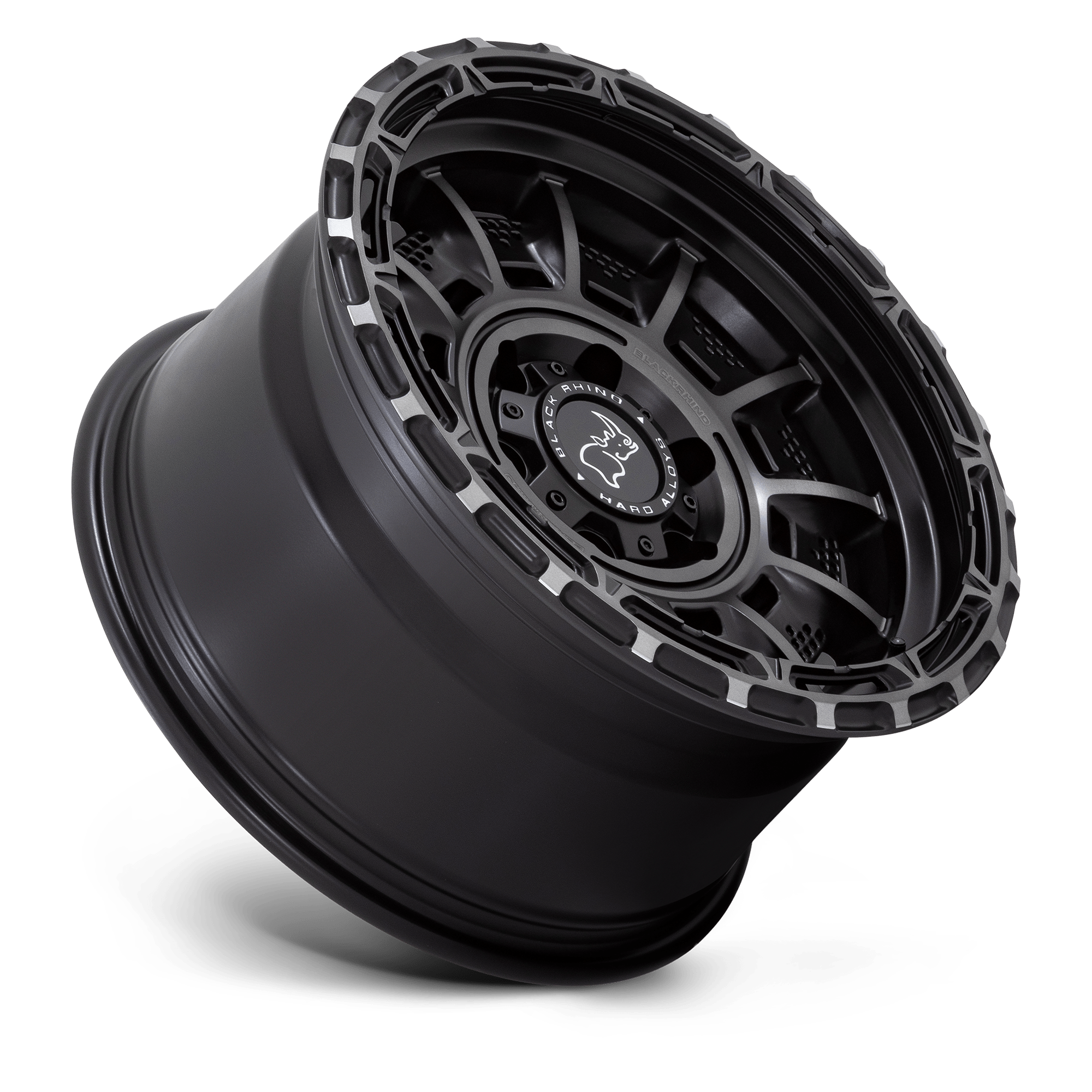

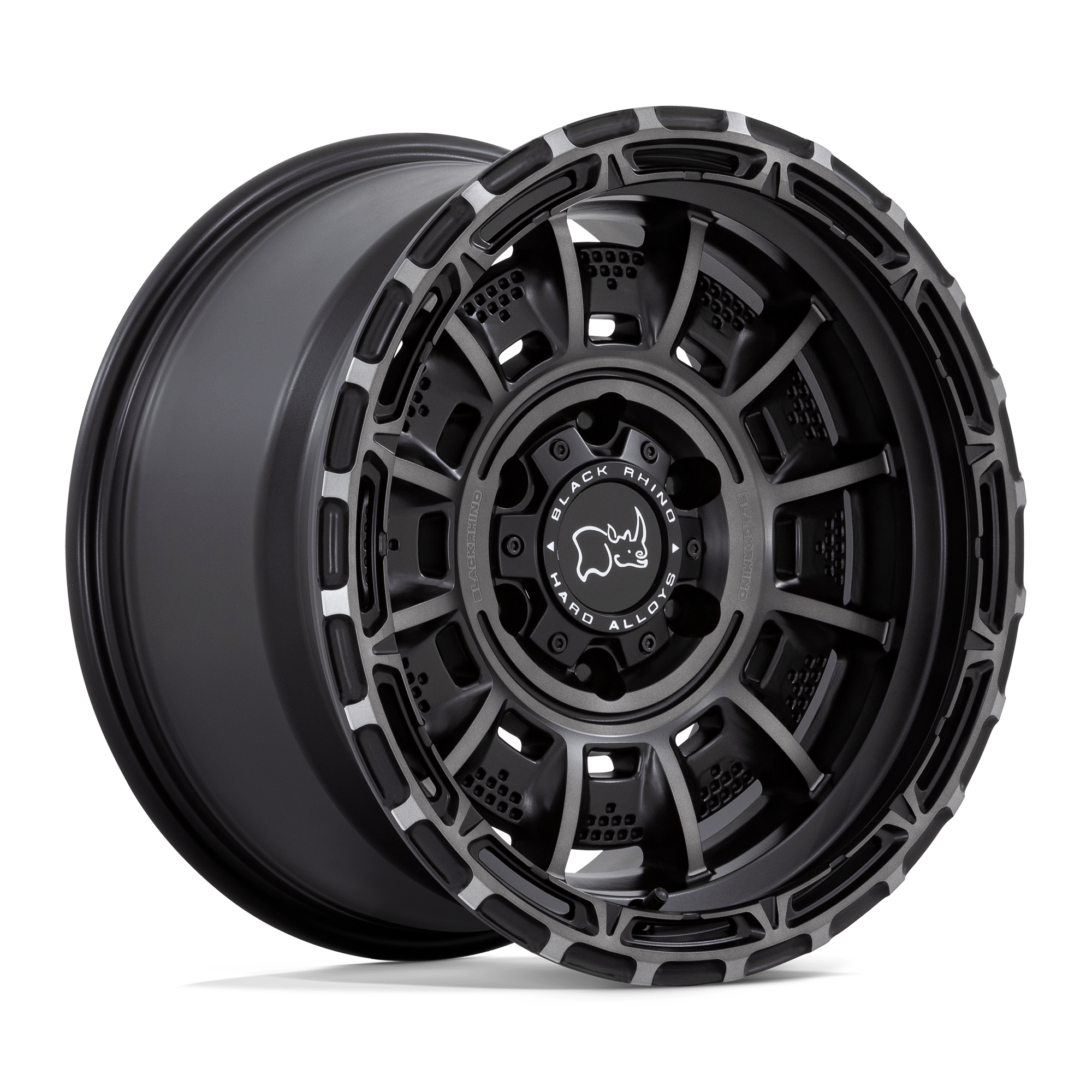

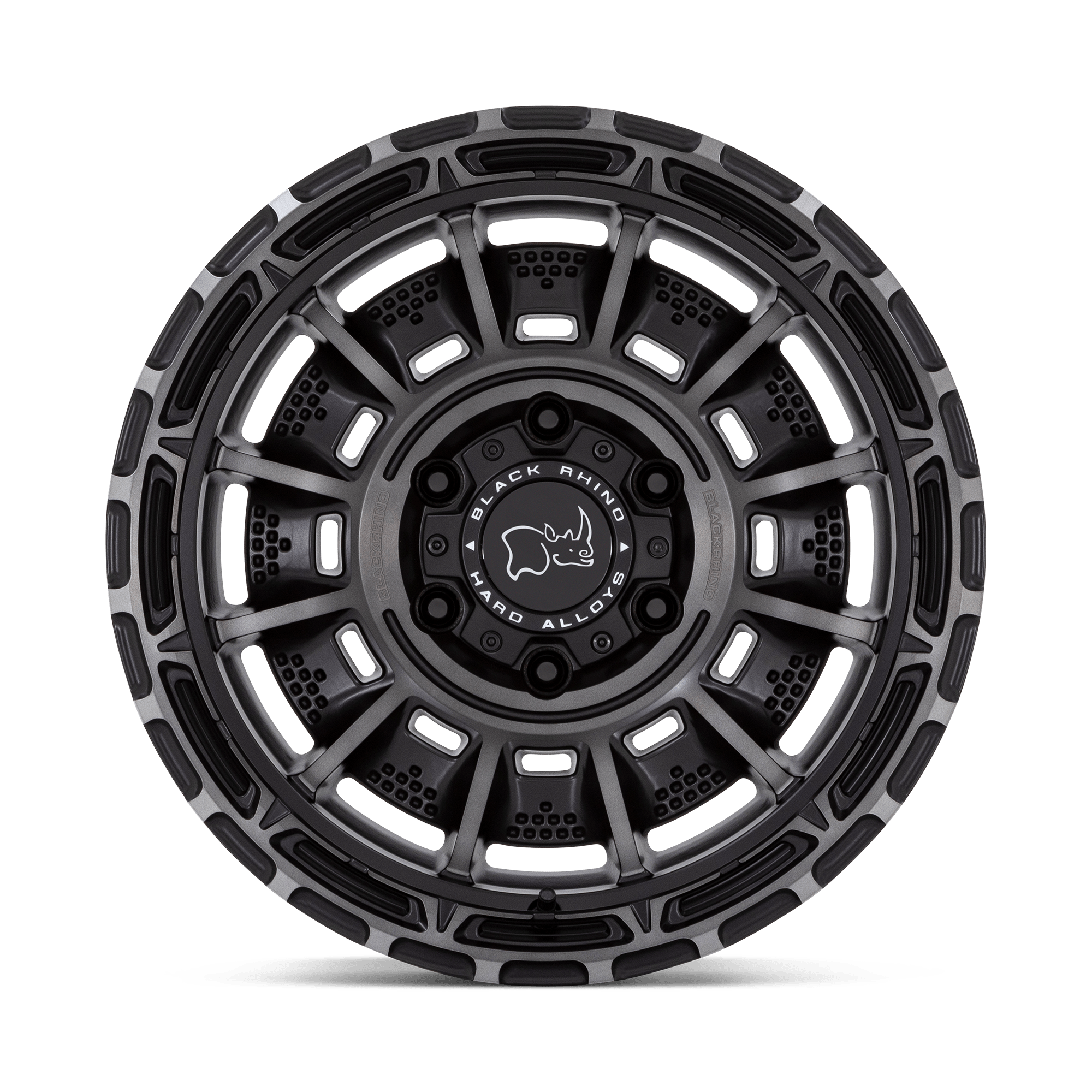

The Black Rhino Legion BR002 is a wheel that commands attention. Built around an advanced full-face military-inspired design with unique geometric detailing, the Legion is engineered for drivers who want their rig to look as serious as it performs. A robust monoblock construction is paired with a simulated beadlock ring for that functional, trail-ready aesthetic, while the Black Rhino logo is laser engraved directly into the face of the wheel for a premium finishing touch.
The Matte Black with Grey Tint finish gives the Legion a distinctive, layered look ā a dark matte base with a subtle grey tint that adds depth and character without sacrificing the wheel's aggressive, no-nonsense presence. Available in 17", and 20" across 5-lug and 6-lug bolt patterns to suit a wide range of trucks, 4WDs, and SUVs.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X9 | 5X127 | 5 | 0mm | 71.5 | 30.36 lbs | 2500 |
| 17X9 | 5X127 | 4.53 | -12mm | 71.5 | 31.24 lbs | 2500 |
| 17X9 | 6X135 | 5 | 0mm | 87.1 | 30.36 lbs | 2500 |
| 17X9 | 6X139.7 | 5 | 0mm | 106.1 | 30.36 lbs | 2500 |
| 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 31.24 lbs | 2500 |
| 20X10 | 5X127 | 4.79 | -18mm | 71.5 | 45.32 lbs | 2500 |
| 20X10 | 5X139.7 | 4.79 | -18mm | 78.1 | 45.30 lbs | 2500 |
| 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 45.32 lbs | 2500 |
| 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 45.32 lbs | 2500 |
| 20X10 | 8X165.1 | 4.79 | -18mm | 125.1 | 45.98 lbs | 3700 |
Ā
Key Features
Ā
- Military-inspired full-face design ā unique geometric detailing that sets the Legion apart from conventional off-road wheel designs
- Monoblock construction with simulated beadlock ring ā single-piece strength combined with a bold, functional-looking outer ring
- Laser engraved Black Rhino logo ā precision detailing on the face of the wheel for a premium, purpose-built finish
- Matte Black with Grey Tint finish ā a dark, layered look with subtle depth that suits any serious build
- 17", and 20" sizing across 5-lug and 6-lug bolt patterns to suit trucks, 4WDs, and SUVs
Expert Help ā Australia Wide
Not sure which size, bolt pattern, or offset suits your vehicle? Our team is available via live online chat to help you get the fitment right the first time. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards ā so you can get rolling sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
