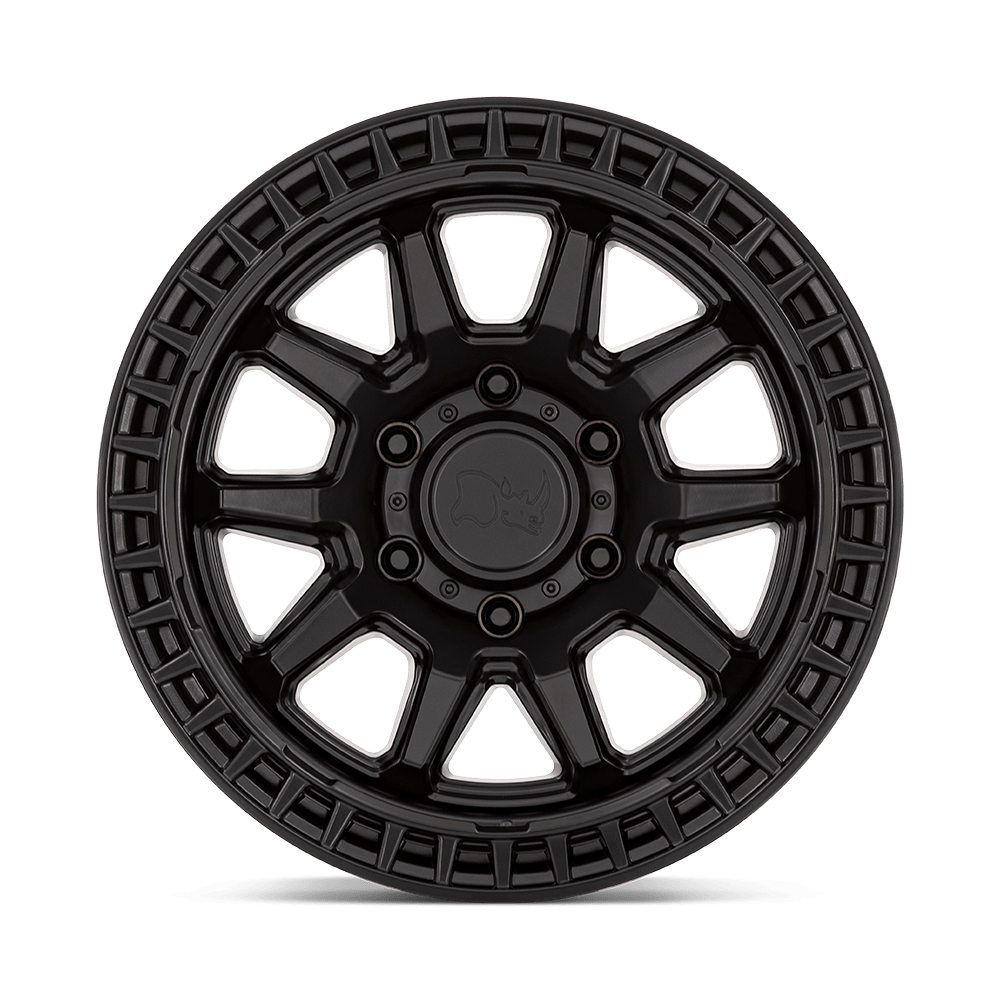

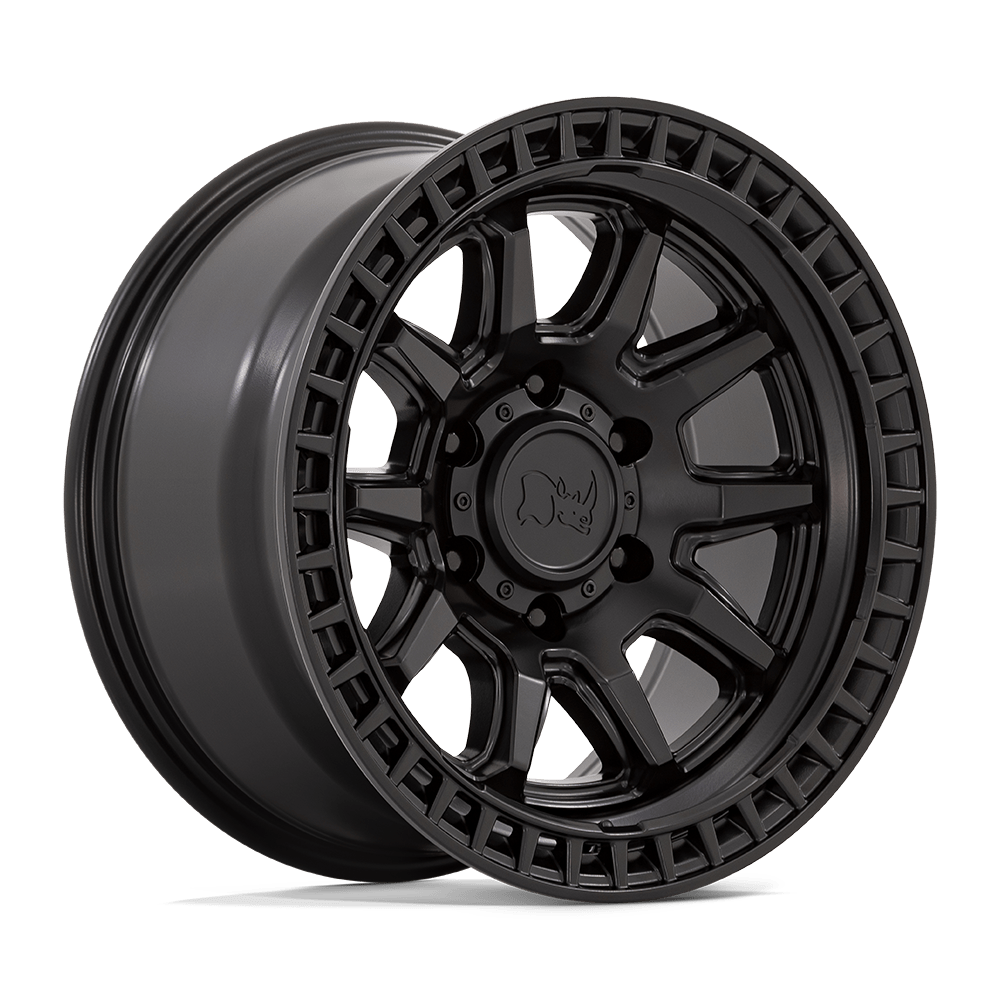

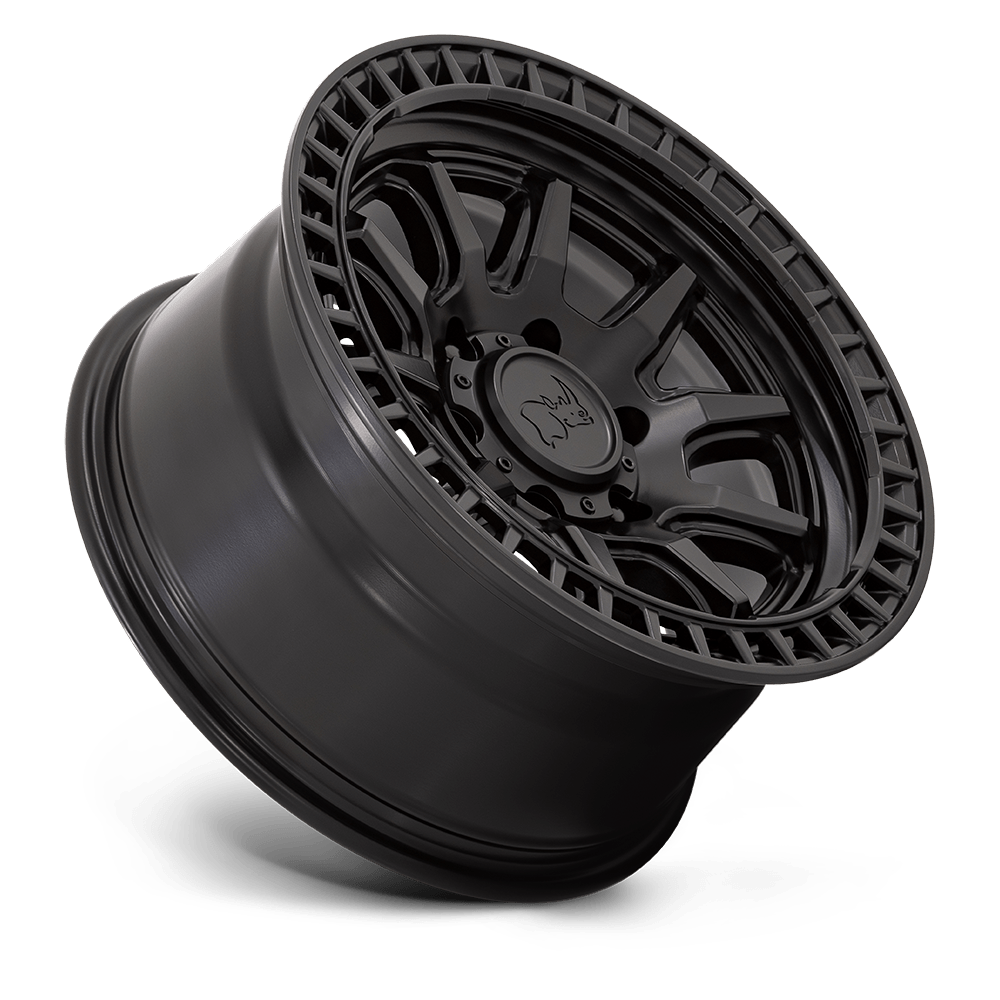

Black Rhino Calico BR001 - Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- π‘οΈ Fitment Advice
The Black Rhino Calico BR001 is built for 4WD and truck owners who want a wheel that looks as tough as the terrain they drive on. Engineered with a solid monoblock construction and a rugged split five-spoke design, the Calico delivers the kind of aggressive stance that turns heads on the trail and in the car park. Large debris release slots cut through the outer ring for maximum airflow and passthrough, while a bolt-on style cap provides generous hub clearance to suit a wide range of vehicles.
The Matte Black finish gives the Calico a clean, no-nonsense look that pairs well with any build β whether you're running a lifted daily driver, a dedicated off-road rig, or a full-size 4WD. Available in 17" and 20" diameters across 5-lug, 6-lug, and 8-lug bolt patterns, with offsets ranging from -18mm to +12mm to suit a broad range of fitments.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 5X114.3 | 6.09 | 34mm | 72.56 | 25.96 lbs | 2100 |
| 17X8.5 | 5X120 | 6.09 | 34mm | 74.1 | 25.96 lbs | 2100 |
| 17X8.5 | 5X127 | 4.36 | -10mm | 71.5 | 28.82 lbs | 2500 |
| 17X8.5 | 5X127 | 4.75 | 0mm | 71.5 | 27.28 lbs | 2500 |
| 17X8.5 | 5X127 | 6.09 | 34mm | 71.5 | 26.24 lbs | 2100 |
| 17X8.5 | 6X135 | 4.75 | 0mm | 87.1 | 27.28 lbs | 2500 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 27.28 lbs | 2500 |
| 17X8.5 | 6X139.7 | 4.36 | -10mm | 106.1 | 28.82 lbs | 2500 |
| 20X9 | 5X139.7 | 5 | 0mm | 78.1 | 35.64 lbs | 2500 |
| 20X9 | 6X135 | 5 | 0mm | 87.1 | 34.98 lbs | 2500 |
| 20X9 | 6X139.7 | 5 | 0mm | 106.1 | 34.98 lbs | 2500 |
Key Features
- Monoblock construction β a single-piece design built for strength and long-term durability on and off the road
- Rugged split five-spoke design with an ultra-aggressive outer ring and large debris release slots for ventilation and passthrough
- Bolt-on style cap with maximum hub clearance to accommodate a wide variety of vehicles
- 17" and 20" sizing across 5-lug, 6-lug, and 8-lug bolt patterns β suits a broad range of 4WDs, trucks, and SUVs
Expert Help β Australia Wide
Not sure which size, bolt pattern, or offset suits your vehicle? Our team is available via live online chat to help you get the fitment right the first time. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards β so you can get rolling sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
