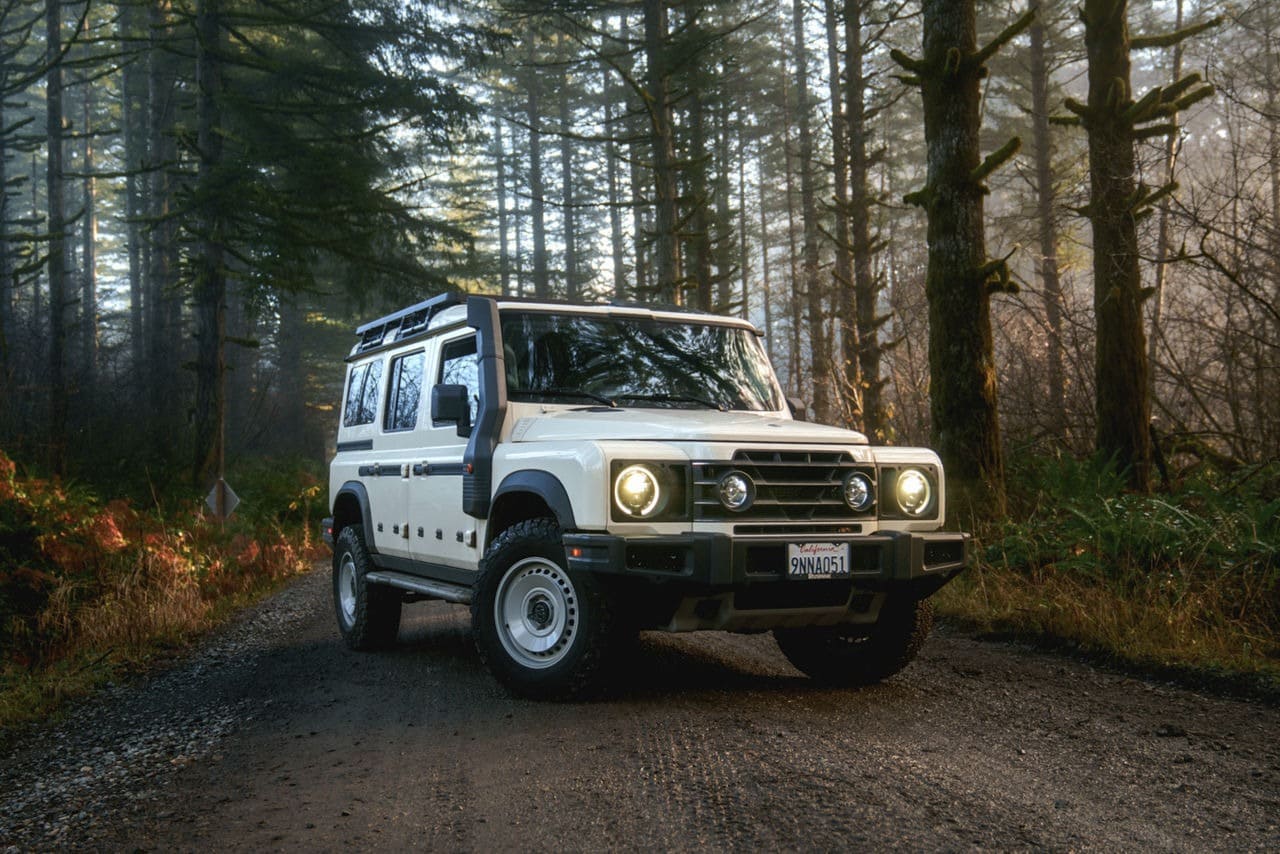

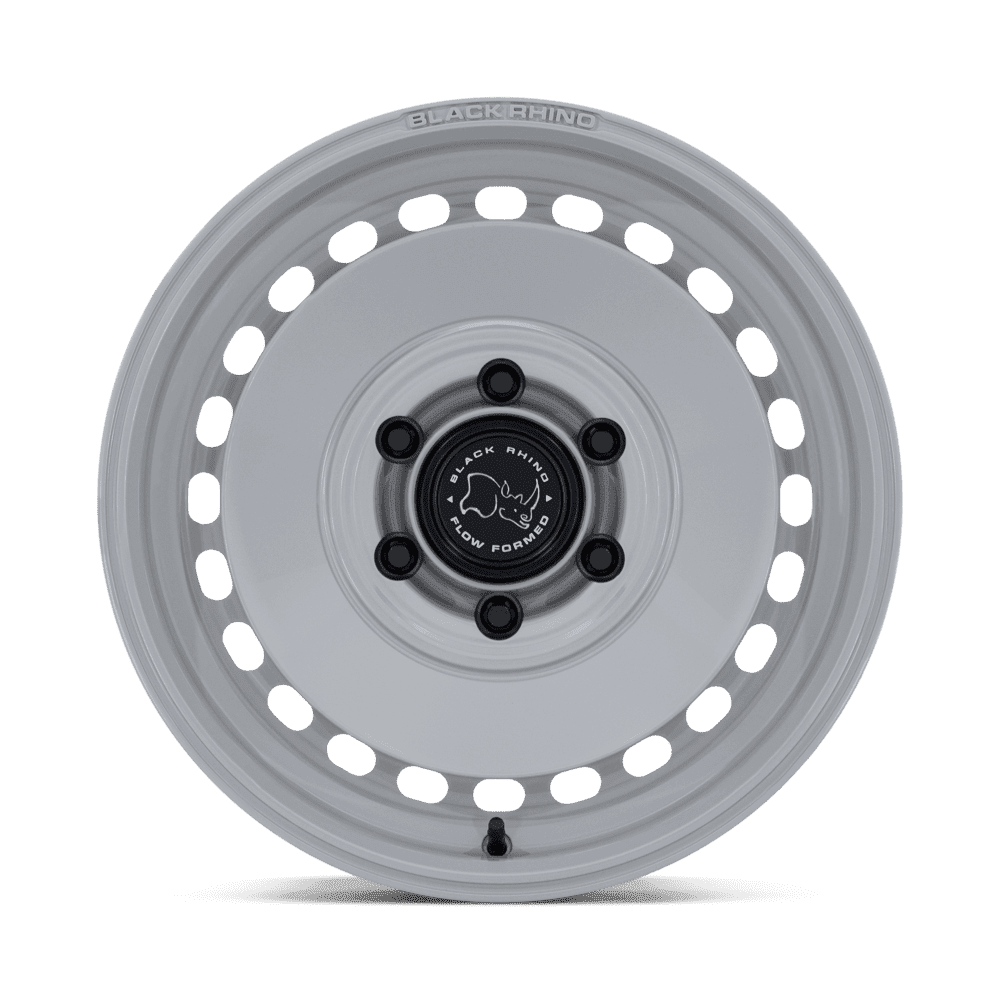

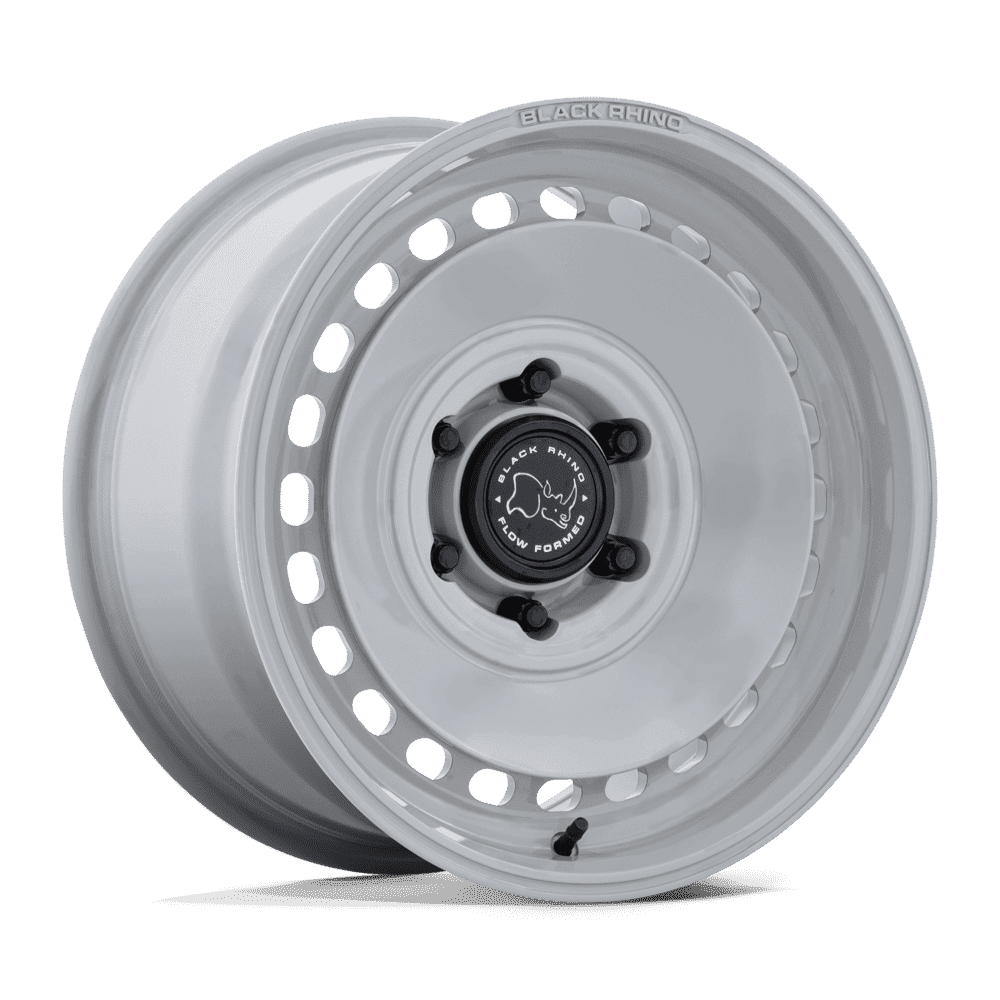

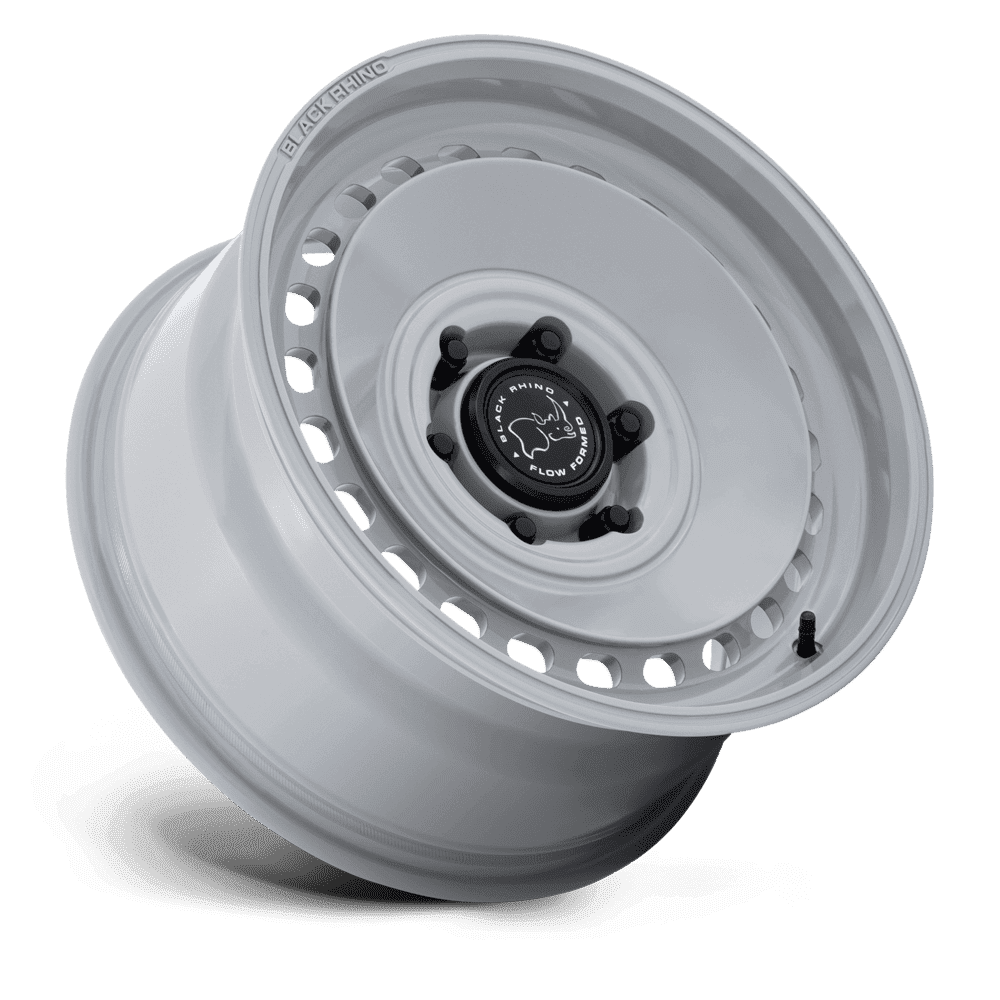

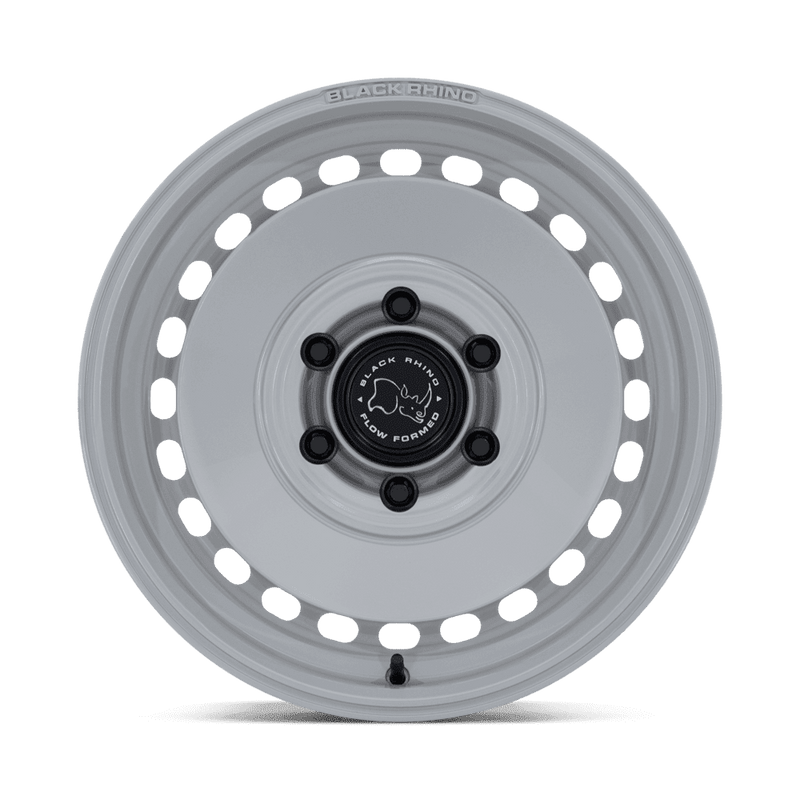

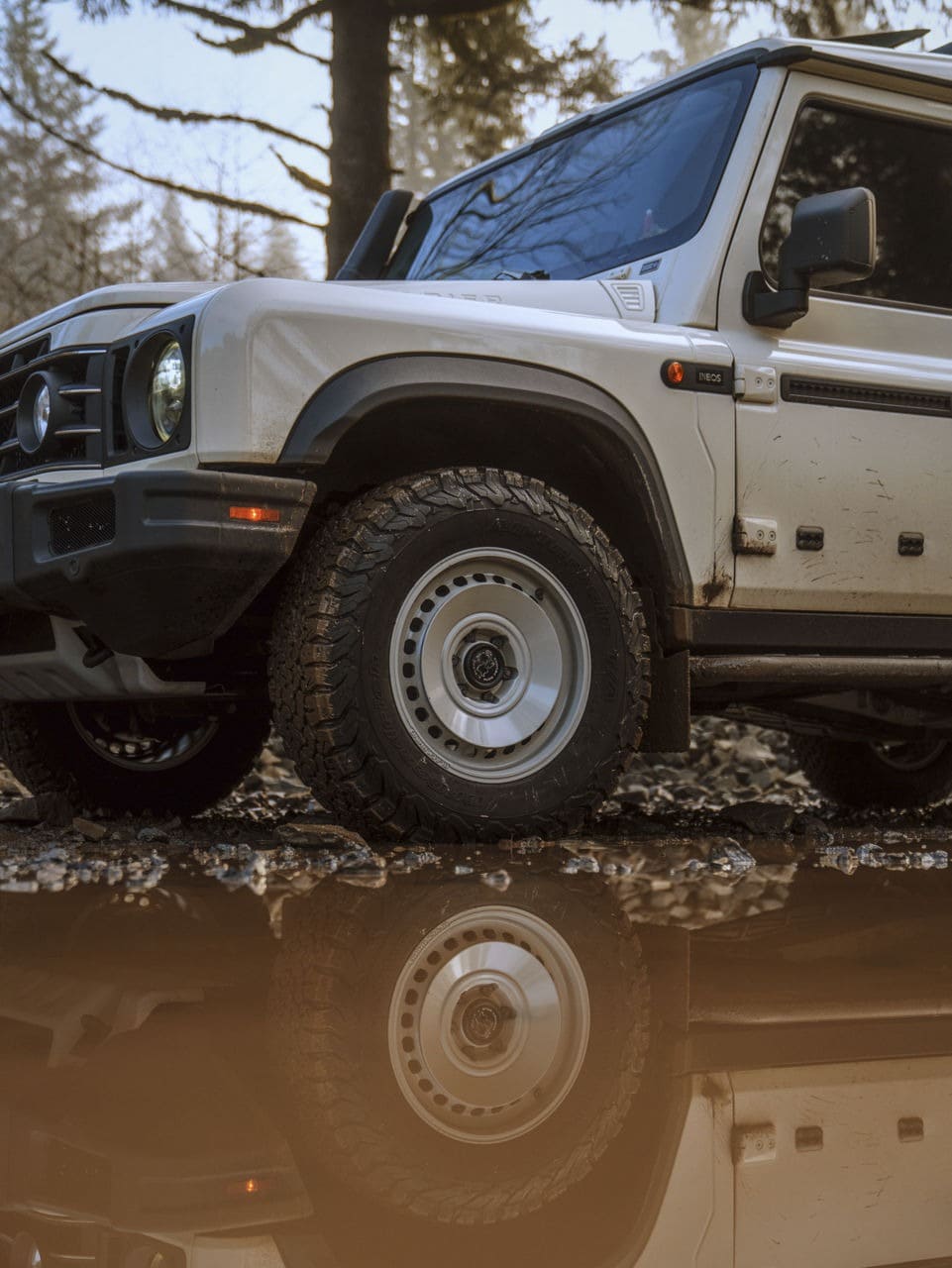

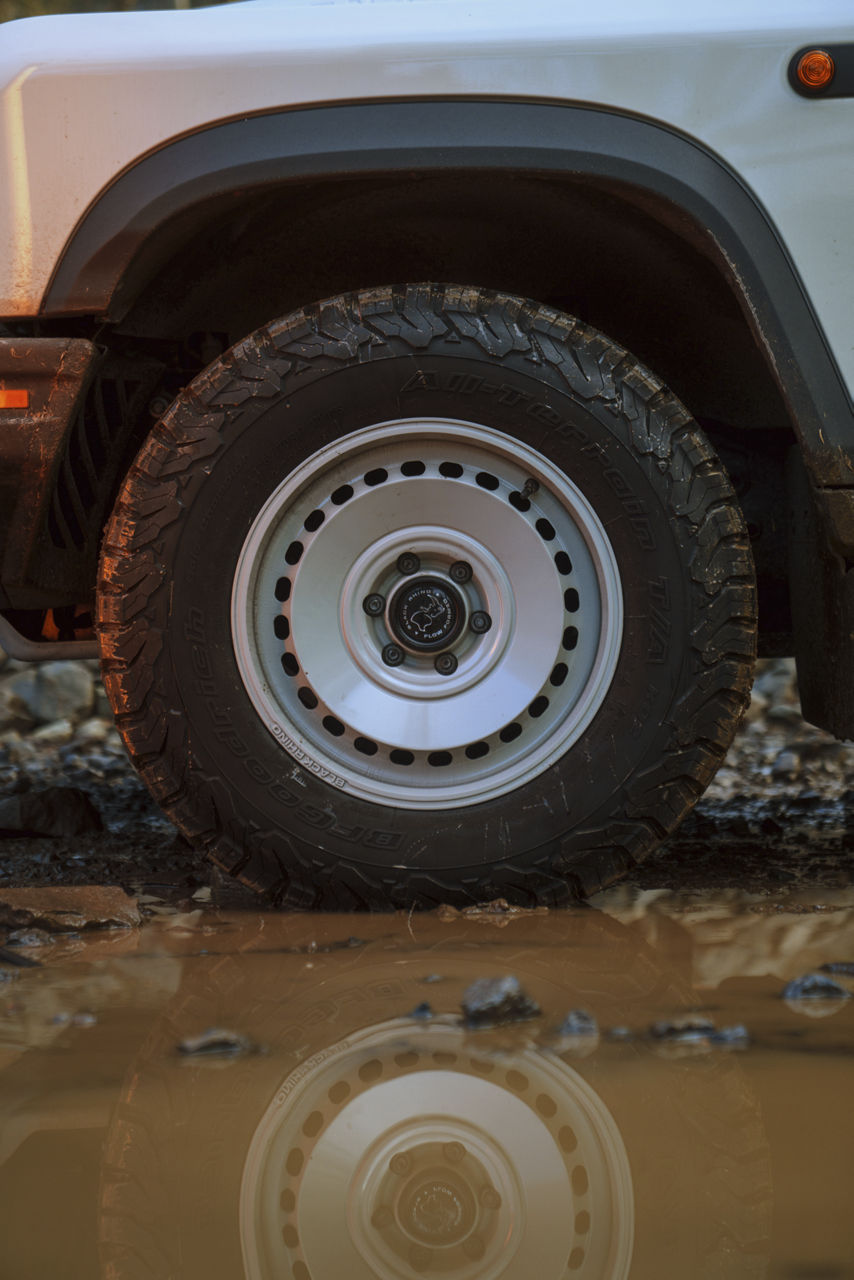

The Black Rhino BR036 Basin is all about rally-bred performance and rugged style made for real-world adventure. The Basin is a modern take on the traditional rally wheel. Think equal parts 'steelie' and full face Paris-Dakar aesthetics. It's built to look good on older and newer rigs seeking a clean, retro look with a modern twist: it's light, strong, and available in many widths, offsets, and bolt patterns. Built using our Flow Formed Technology process, the Basin offers lightweight performance and strength that exceed those of a typical cast wheel, with our all-new Bead Retention System tech keeping your tire secure when airing down on rough terrain. Speaking of airing down, the Basin features a recessed air valve for keeping your stem protected off-road. Available exclusively in 17" diameter with 5-lug and 6-lug bolt patterns, the Basin is great for performance trucks and SUVs. Sprinter and Ineos drivers, we didn't forget about you. We offer the Basin with a 4,000 lb load rating to handle beefier build-outs.
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load | Lip Size |
| 17X8 | 6X130 | 5.76 | 32mm | 84.1 | 27.34 lbs | 4000 | 1.46 |
| 17X8 | 6X139.7 | 5.76 | 32mm | 106.1 | 26.90 lbs | 4000 | 1.46 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 25.79 lbs | 2650 | 1.88 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 25.13 lbs | 2650 | 1.91 |
Β
Black Rhino Basin Wheel Key Features & Benefits
- Rally-bred Paris-Dakar aesthetics blending classic 'steelie' style with a modern full-face design for retro-inspired looks.
- Flow Formed Technology delivering lightweight performance and strength that exceed a typical cast wheel.
- Bead Retention System (BRS) keeping your tire secure when airing down on rough terrain.
- Recessed air valve protecting your stem off-road when airing down.
- Available exclusively in 17" diameter with 5-lug and 6-lug bolt patterns in multiple widths and offsets.
- 4,000 lb load rating built for heavier builds including Mercedes Sprinter and Ineos Grenadier platforms.
- Versatile fitment suited for performance trucks, SUVs, and expedition vehicles, old and new.
The Black Rhino BR036 Basin combines rally heritage with modern Flow Formed engineering and the Bead Retention System, making it the ideal choice for truck and SUV owners who want retro style, lightweight strength, and trail-ready capability.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
