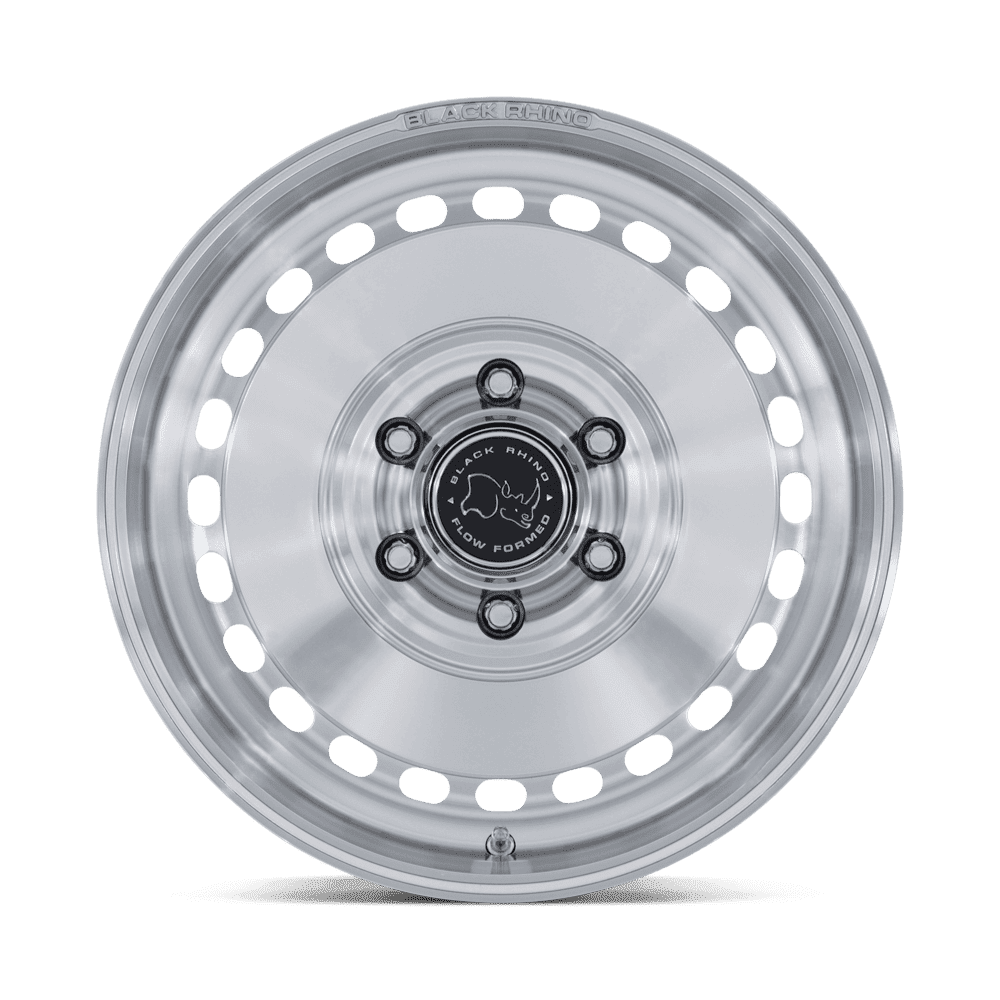

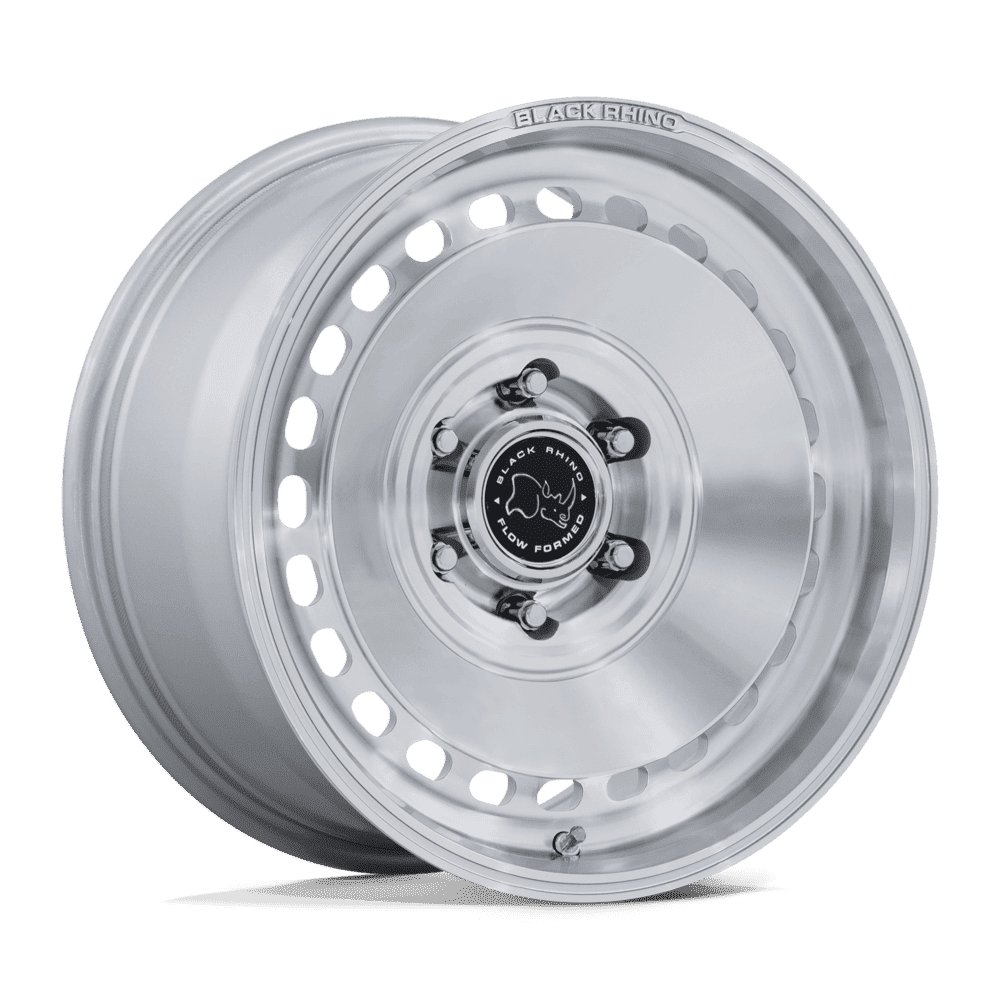

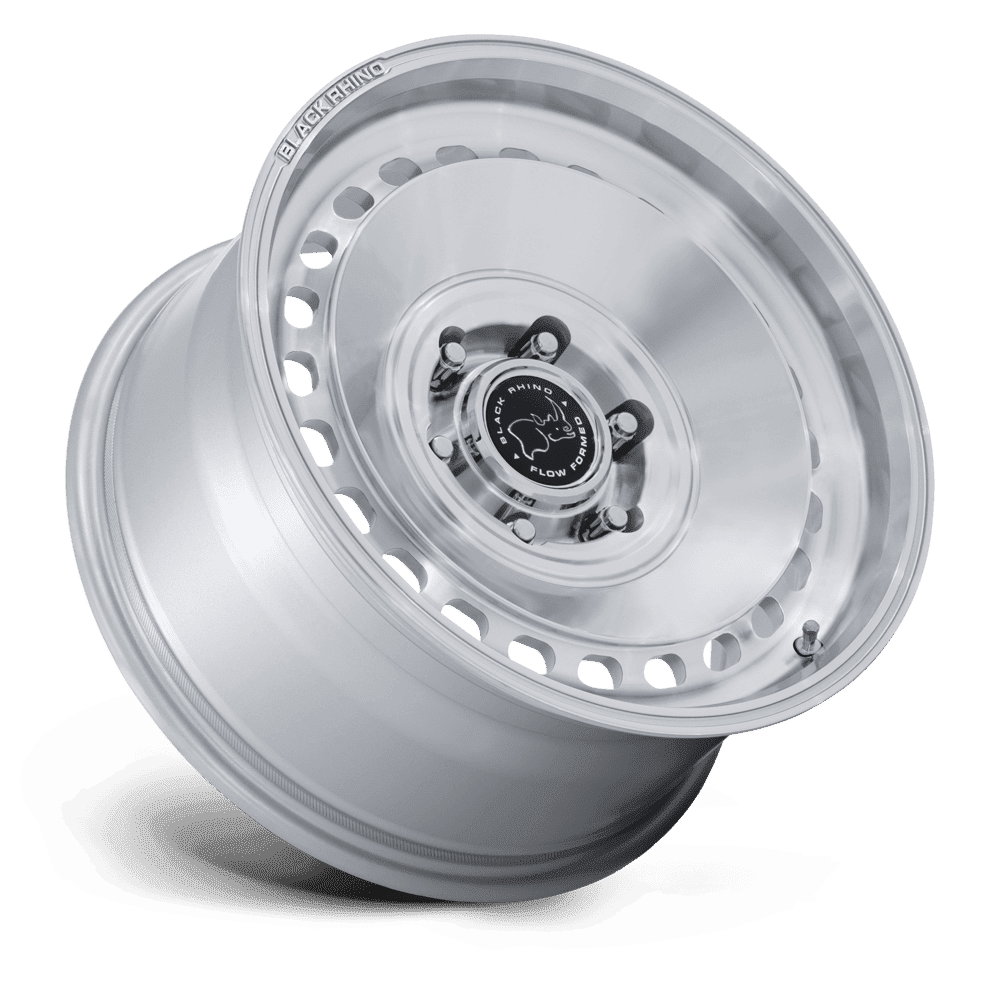

Black Rhino BASIN Wheels in Gloss Silver w/ Machined Face
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice
The Black Rhino Basin BR036 is a wheel that draws on rally heritage and delivers it for real-world adventure. Taking cues from classic full-face rally wheel design, the Basin blends a retro-inspired aesthetic with modern construction — it’s a wheel that suits older and newer rigs equally well, and looks at home whether you’re running a clean street build or a fully loaded overland setup. Built using Flow Formed Technology, the Basin is lighter and stronger than a standard cast wheel, and the Bead Retention System (BRS) keeps your tyre seated with confidence when you air down on rough terrain. A recessed air valve stem protects your valve off-road — a small detail that makes a real difference when the track gets serious. Available exclusively in 17” with 5-lug and 6-lug bolt patterns, and offered with a 4,000 lb load rating on 17x8 fitments to suit commercial van and heavy-duty overland applications.
The Gloss Silver with Machined Face finish gives the Basin a premium, two-tone look that elevates the full-face rally design into something genuinely eye-catching. The gloss silver base provides a clean, classic foundation, while the precision-cut machined face adds a metallic detail that catches the light and highlights the wheel’s architecture. It’s a finish that suits builds looking for a polished, purposeful edge — particularly well-matched to white, silver, or light-coloured vehicles where the contrast between the machined face and gloss silver body creates a cohesive, intentional look.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8 | 6X130 | 5.76 | 32mm | 84.1 | 27.34 lbs | 4000 |
| 17X8 | 6X139.7 | 5.76 | 32mm | 106.1 | 26.90 lbs | 4000 |
| 17X8.5 | 5X127 | 4.75 | 0mm | 71.5 | 25.35 lbs | 2650 |
| 17X8.5 | 6X114.3 | 5.73 | 25mm | 66.06 | 26.01 lbs | 2650 |
| 17X8.5 | 6X135 | 5.73 | 25mm | 87.1 | 26.23 lbs | 2650 |
| 17X8.5 | 6X135 | 4.75 | 0mm | 87.1 | 25.79 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 25.79 lbs | 2650 |
| 17X8.5 | 6X139.7 | 4.75 | 0mm | 106.1 | 25.13 lbs | 2650 |
Key Features
- Heavy-duty load rating — 4,000 lb per wheel on 17x8 fitments, making the Basin one of the highest-rated wheels in the Black Rhino lineup for commercial and overland applications
- Flow Formed Technology — lighter and stronger than a standard cast wheel, with a construction process that delivers genuine performance benefits for any build
- Bead Retention System (BRS) with recessed valve stem — keeps your tyre seated when airing down, with a protected valve stem that holds up when the track gets rough
- Gloss Silver with Machined Face finish — precision-cut machined face over a gloss silver base creates a premium two-tone look that suits white, silver, and light-coloured builds
- Available in 17” — 5-lug and 6-lug bolt patterns including 5X127, 6X114.3, 6X130, 6X135, and 6X139.7 at 0mm, +25mm, and +32mm offsets
- Broad commercial and 4WD compatibility — suits Mercedes Sprinter, Volkswagen Transporter, Toyota Land Cruiser, Nissan Patrol, Ford Ranger, and other heavy-duty platforms
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
