Black Rhino Bahari BR022 Wheels – Matte Black
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice

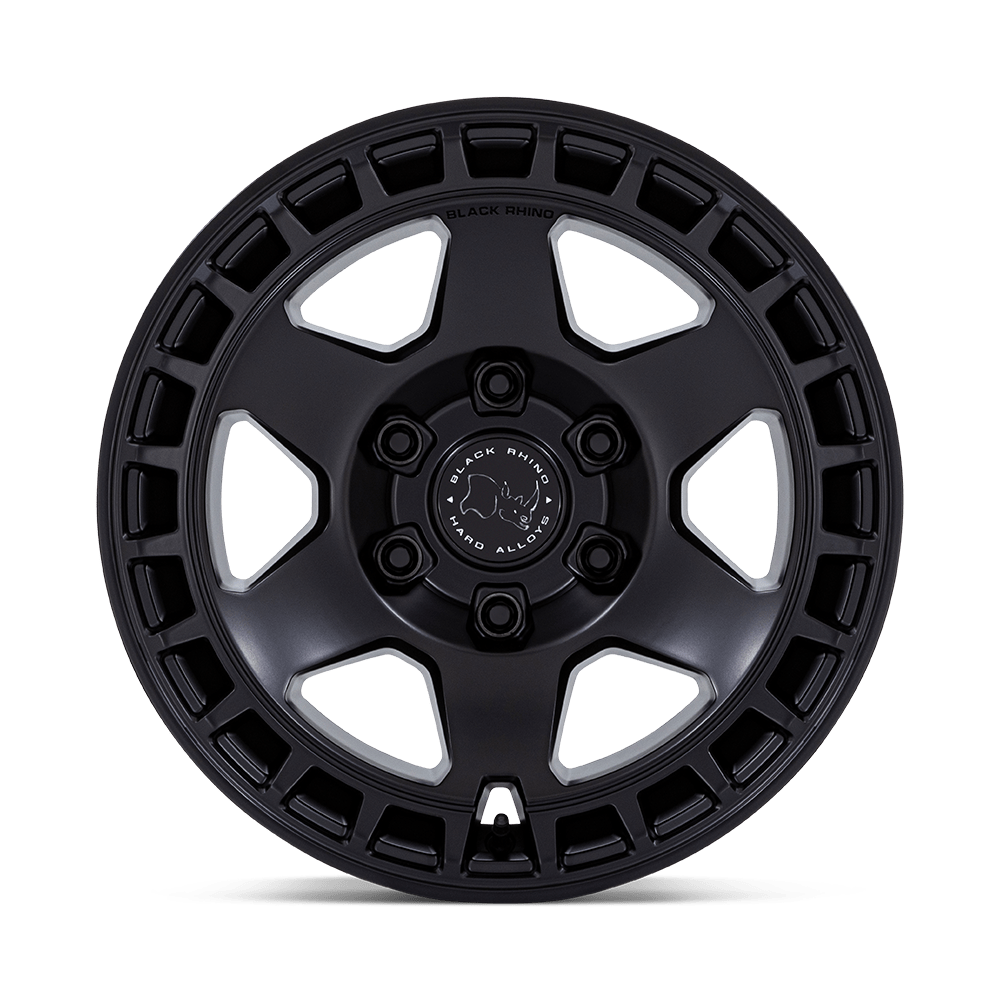

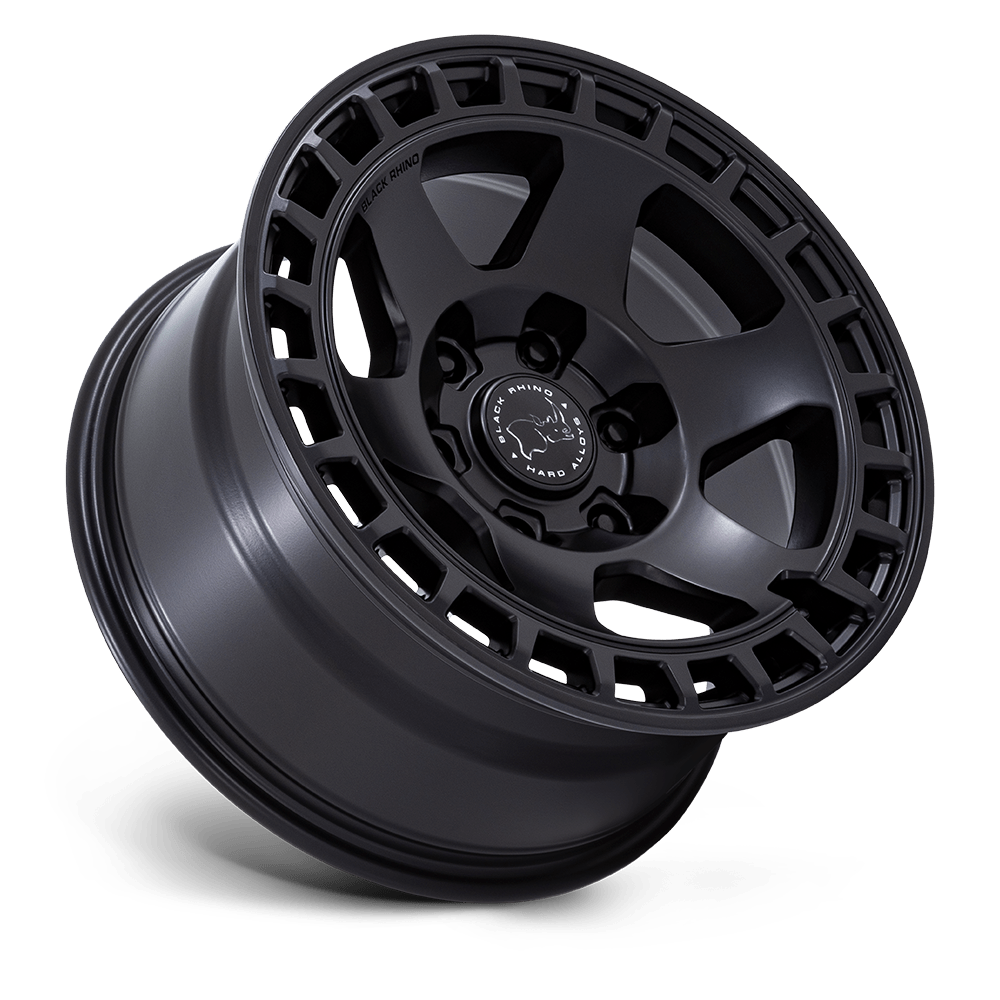

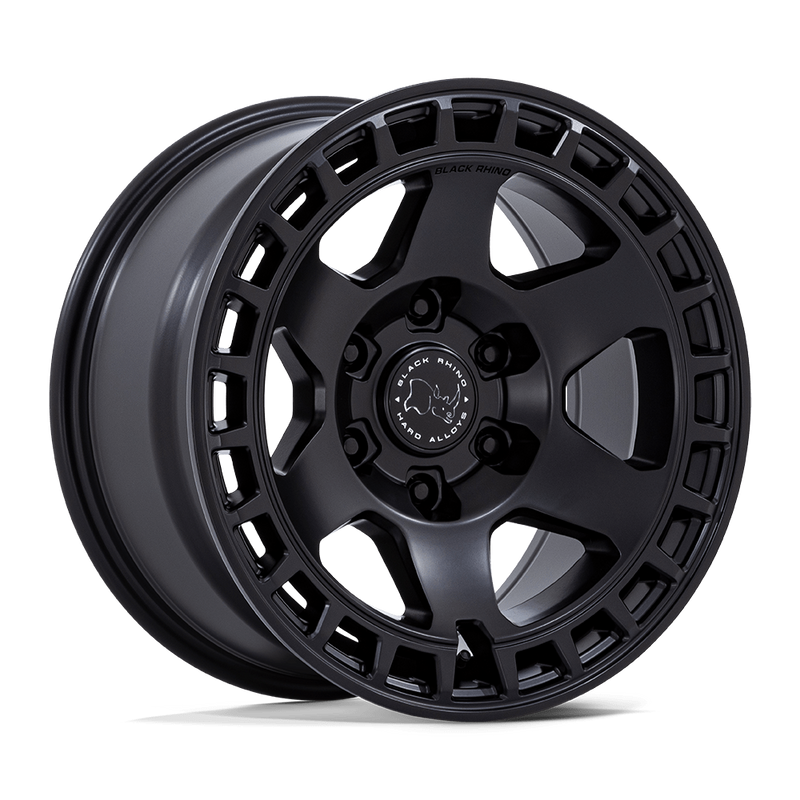

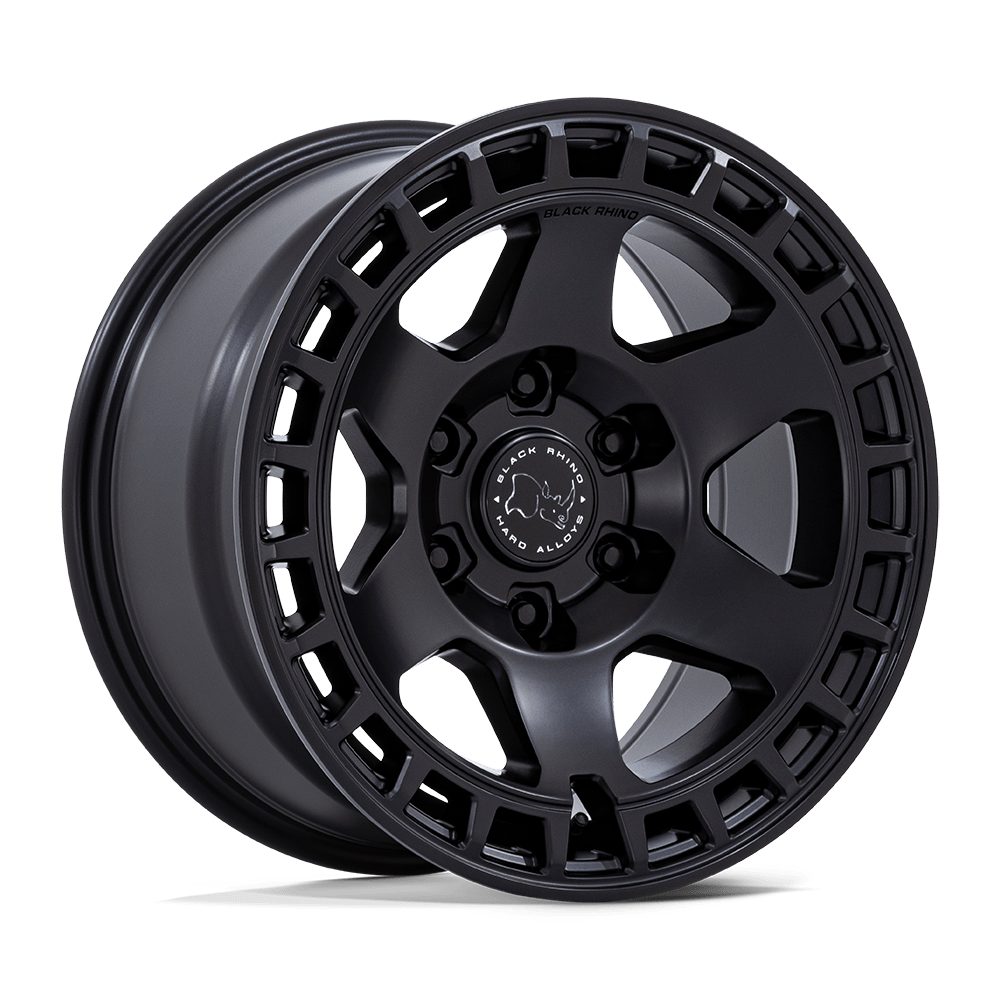

The Black Rhino Bahari is a monoblock off-road wheel that started life as a forged SEMA concept and earned its way into full production. Years of design refinement went into getting it right — and the result is a wheel that's as purposeful as it looks. Drawing visual cues from the aggressive stance of the RAM TRX, the Bahari is built for 4WD and truck owners who want a wheel that can handle serious terrain without sacrificing kerb appeal.
The six-spoke layout is anchored by a deep hub area that shields the lug cavities from trail debris, while chip-deflecting chamfers along each spoke help protect the finish when the going gets rough. A multi-contoured lip profile is designed to absorb and localise rock damage at the outer edge, keeping the face of the wheel intact. An oversized valve stem access hole makes tyre pressure adjustments straightforward — no fumbling around on the side of the track. The Matte Black finish keeps things clean and trail-ready.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 5X127 | 5.73 | 25mm | 71.5 | 31.52 lbs | 2650 |
| 17X8.5 | 5X127 | 4.36 | -10mm | 71.5 | 32.84 lbs | 2650 |
| 17X8.5 | 6X135 | 4.75 | 0mm | 87.1 | 32.18 lbs | 2650 |
| 17X8.5 | 6X139.7 | 4.36 | -10mm | 106.1 | 32.40 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 30.86 lbs | 2650 |
| 17X9 | 6X139.7 | 6.57 | 40mm | 106.1 | 35.71 lbs | 3700 |
| 18X8 | 6X139.7 | 6.27 | 45mm | 106.1 | 32.62 lbs | 2650 |
Key Features
- Monoblock construction — evolved from a forged SEMA concept into a production-ready off-road wheel built for real-world use
- Six-spoke design with deep hub area — protects lug cavities from trail debris and gives the wheel its distinctive, aggressive profile
- Chip-deflecting spoke chamfers — engineered to shed rocks and debris and preserve the wheel's finish in harsh conditions
- Multi-contoured lip profile — localises rock damage to the outer lip, protecting the face and overall structural integrity
- Oversized valve stem access — makes tyre pressure adjustments quick and easy, even with a tyre fitted
- Matte Black finish — tough, low-gloss coating suited to both trail use and everyday driving
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you get the fitment right the first time. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get rolling sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
