Black Rhino Bahari BR022 Wheels – Burnt Bronze W/ Matte Black Lip
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice

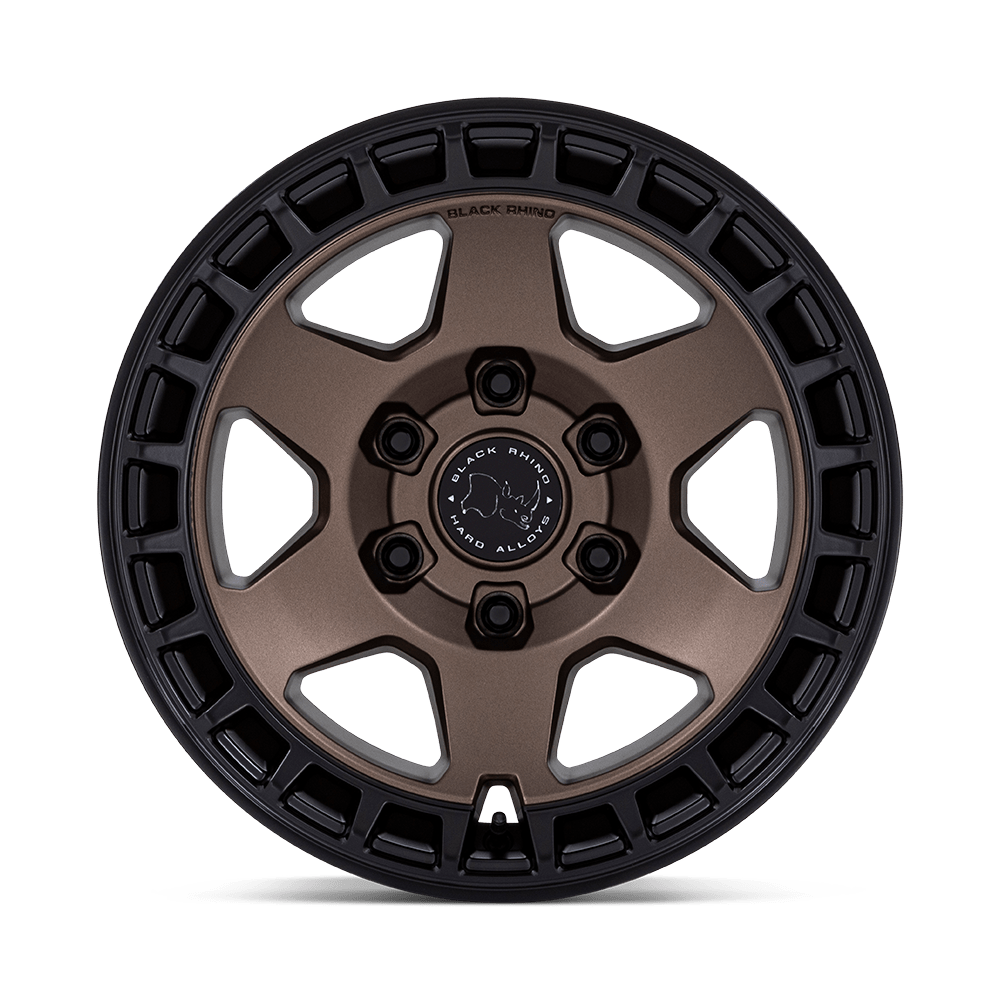

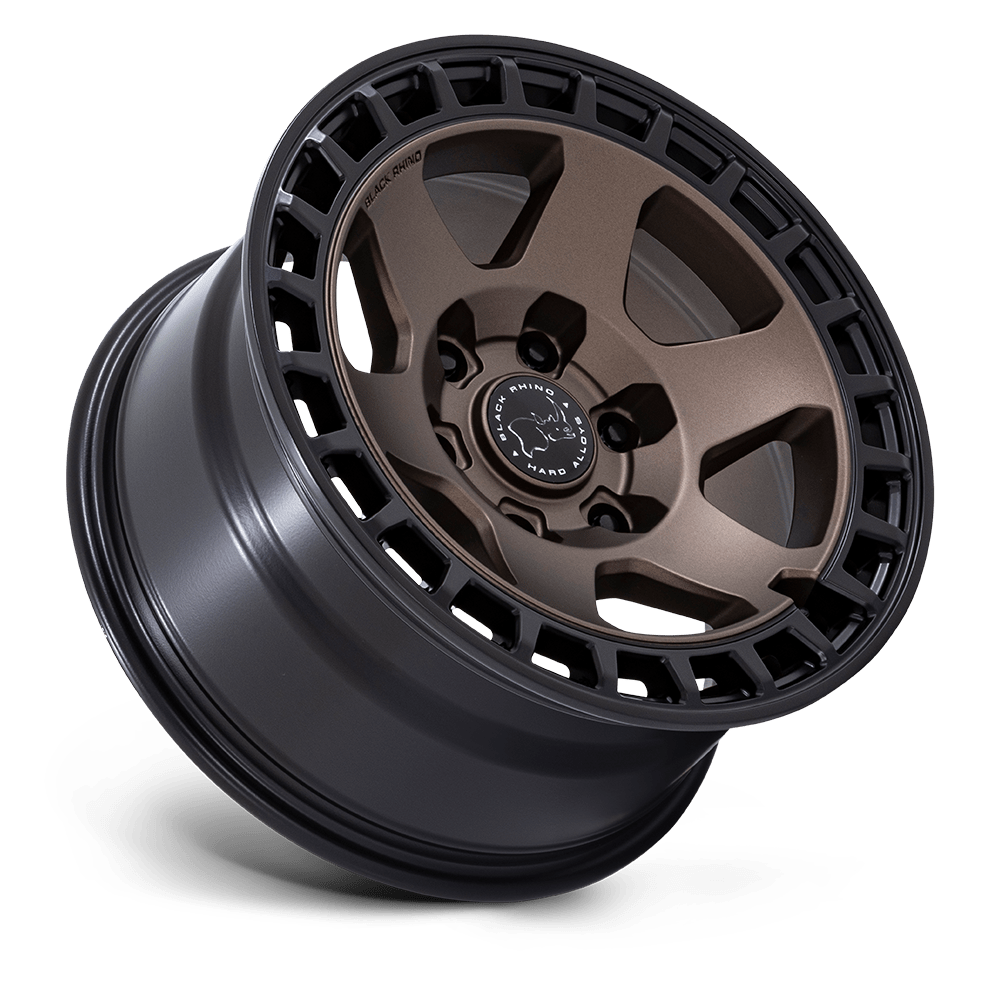

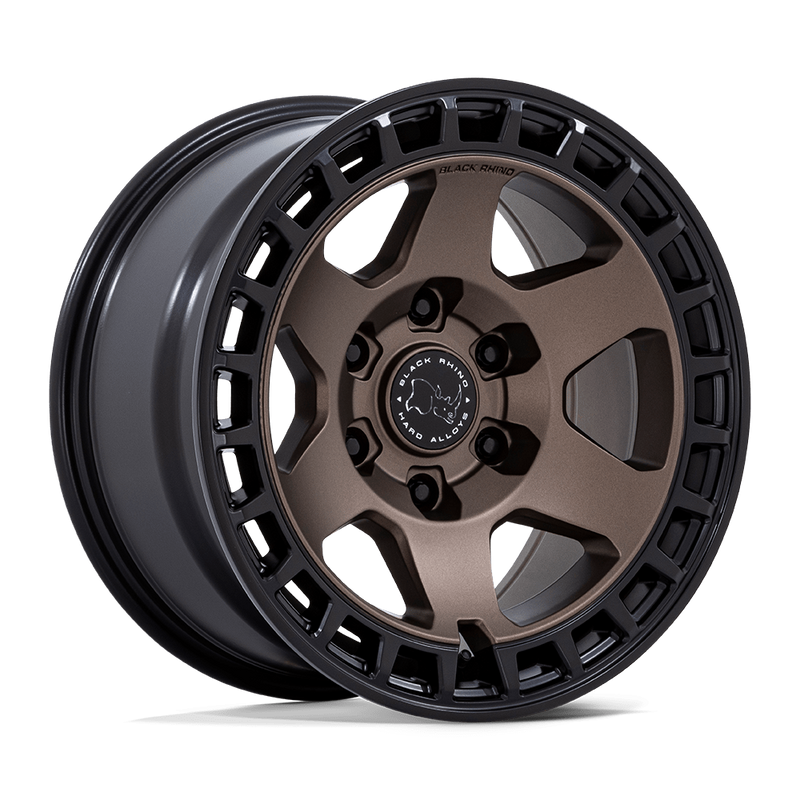

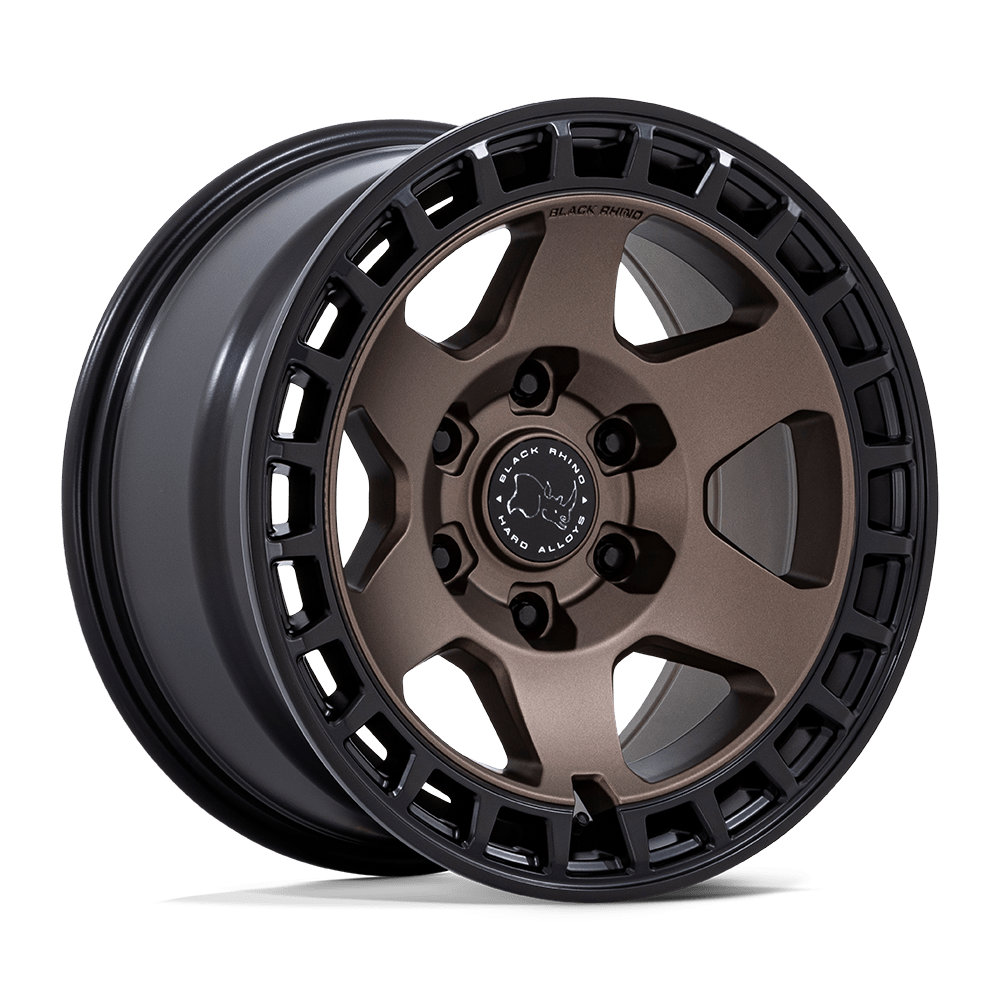

The Black Rhino Bahari BR022 has an origin story that sets it apart from the crowd. It started life as a forged concept at SEMA and earned its place in full production through years of refinement — not a shortcut in sight. Drawing visual cues from the aggressive stance of the RAM TRX, the Bahari is built for 4WD and truck owners who want a wheel that performs on serious terrain without looking like an afterthought on the street.
The six-spoke layout centres around a deep hub area that keeps lug cavities shielded from trail debris, while chip-deflecting chamfers along each spoke help the finish hold up when conditions get rough. The multi-contoured lip is engineered to absorb and localise rock damage at the outer edge — protecting the face of the wheel where it matters most. An oversized valve stem access hole means tyre pressure checks and adjustments are quick and hassle-free, even with a tyre mounted. The Burnt Bronze with Matte Black Lip finish delivers a warm, earthy two-tone contrast that looks right at home on a serious off-road build.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 5X127 | 4.36 | -10mm | 71.5 | 32.84 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 30.86 lbs | 2650 |
| 17X8.5 | 6X139.7 | 4.36 | -10mm | 106.1 | 32.40 lbs | 2650 |
| 18X8 | 6X139.7 | 6.27 | 45mm | 106.1 | 32.62 lbs | 2650 |
Key Features
- SEMA-concept origins — evolved from a forged show wheel into a production-ready off-road rim built for real-world punishment
- Six-spoke design with deep hub area — shields lug cavities from trail debris and gives the wheel its distinctive, aggressive profile
- Chip-deflecting spoke chamfers — engineered to deflect rocks and preserve the finish in harsh off-road conditions
- Multi-contoured lip profile — localises rock damage to the outer edge, keeping the face and structural integrity intact
- Oversized valve stem access — makes tyre pressure adjustments quick and easy, even with a tyre fitted
- Burnt Bronze with Matte Black Lip finish — warm, earthy bronze body with a contrasting matte black lip for a bold, trail-ready two-tone look
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you get the fitment right before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
Free delivery is not available on Wheels & Tyres.
| Wheels | Wheels | Rims, Wheels, Tyres | Price per wheel varies depending on wheel weight and shipping destination. Shipping costs for East coast of Australia start at approx. $20 per wheel. |
Free is not available on Wheels & Tyres.
FREIGHT COSTS CAN BE CALCULATED IN THE CART OR CHECKOUT
* Oversize, heavy or bulky items are excluded from free freight. Costs will vary depending on delivery location.
| Shipping Category | Description | Example | Estimate Costs |
| Standard | General items | Camping gear, lights, electrical |
$15 to FREE
|
| Oversize Items - 1 | Large items, low weight | Flares, large roof racks | $45 - $90 |
| Oversize Items - 2 | Medium size, heavy items | Winches, bash plates, lift kits | $50 - $100 |
| Oversize Items - 3 | Long / oversize items | Awnings, long cross bars | $50 - $200 |
| Oversize Items - 4 | Over 25kgs or very large | Large bike racks | $100 - $200 |
| Oversize Items - 5 | Large - delivery to commercial address only | Roller covers & lids | $50 - $100 |
| Wheels | Wheels | Rims, Wheels, Tyres | From. $20 per wheel |
| Towing | Towing | Towbars, hitches | From $40 per delivery, depending on product size and destination. |
| Protection | Protection | Bullbars, rear bars, side steps, nudge bars | From $100 per delivery, depending on product size and destination. |
#excludes remote or island locations. Some products are not available for delivery to NT, WA or TAS.
USA & New Zealand Freight Available
Rates as per Australia Post calculator, available in the Cart/Checkout.
Wheels & Tyres
Wheel & tyre freight charges vary depending on the quantity purchased. The online freight calculator at checkout will provide accurate price, dependent upon total weight of the goods purchased. Minimum freight is $20 for 1 wheel or tyre. Online wheel & tyres orders can only be purchased for QLD, NSW, VIC and ACT. For all other orders please email or call our team.
