Black Rhino Awol BR024 - Gloss White
Installation Available
Payment Options
- Description
- Vehicle Guide
- Wheel Offset Chart
- Delivery
- 🛡️ Fitment Advice

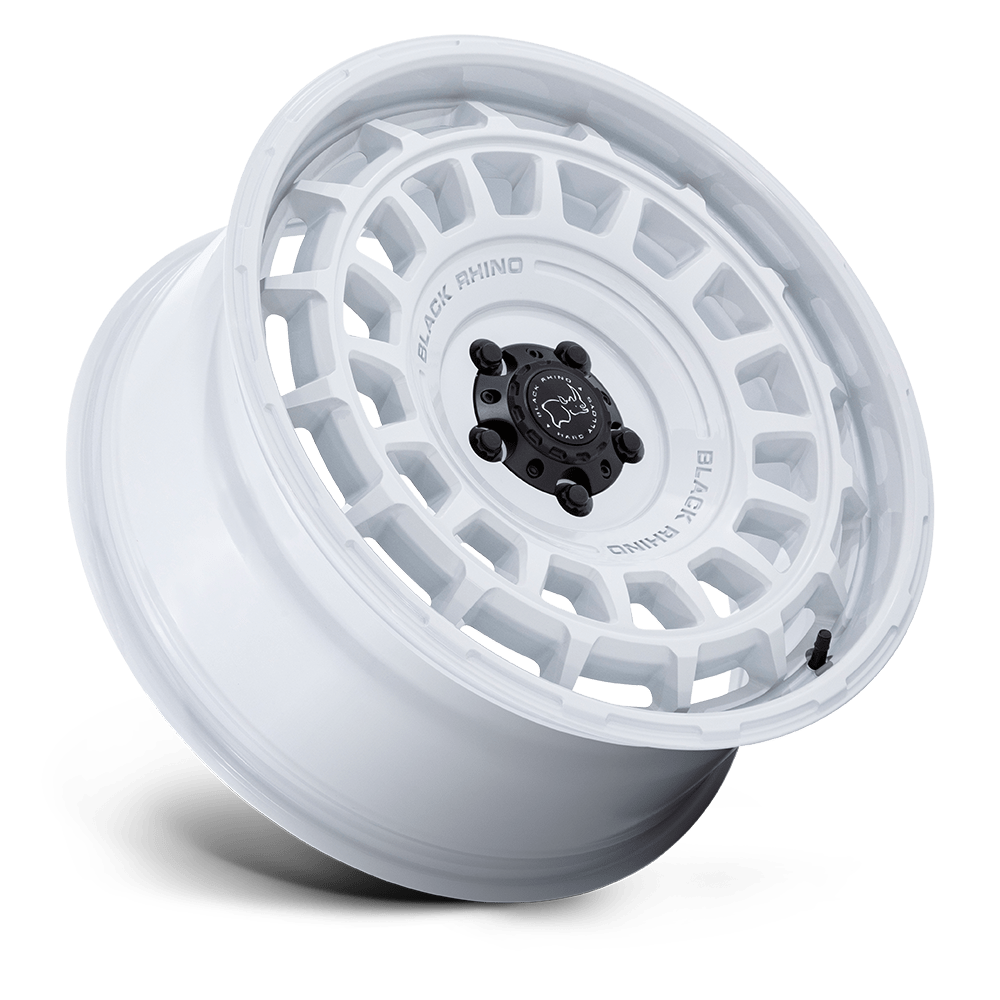

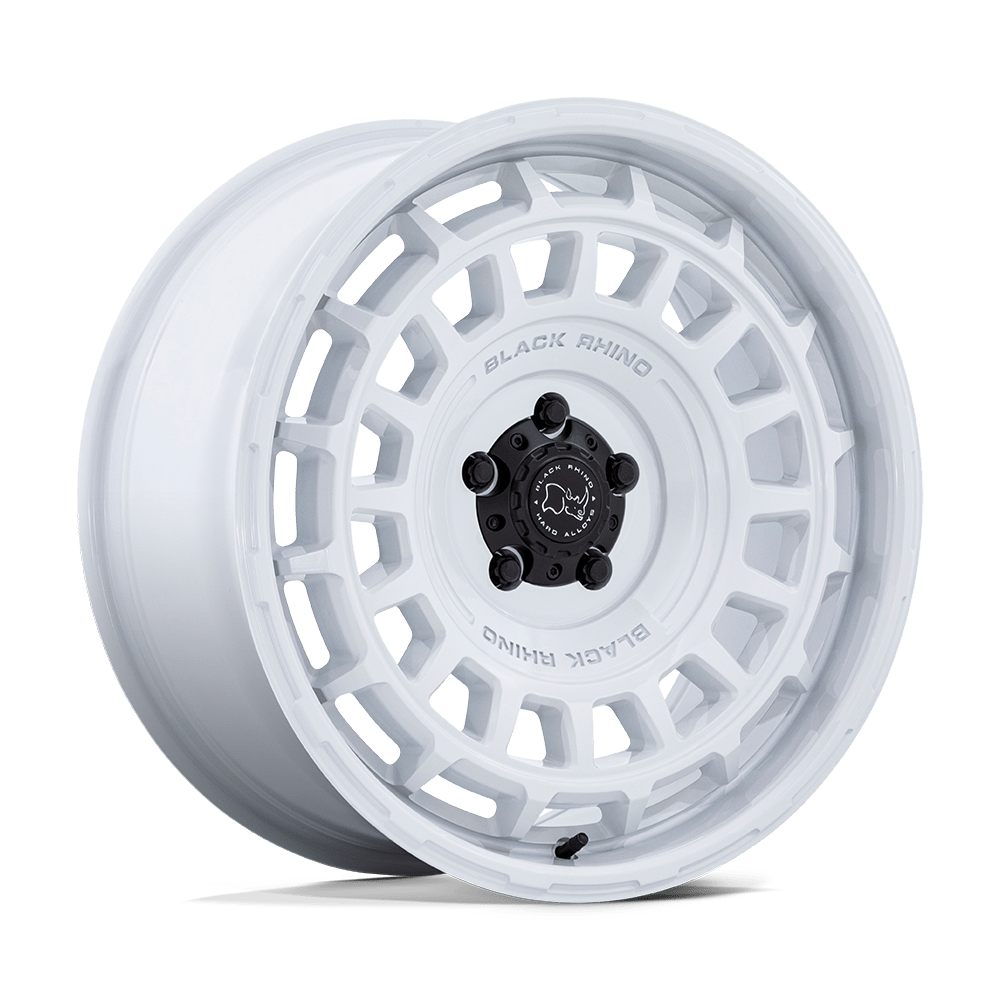

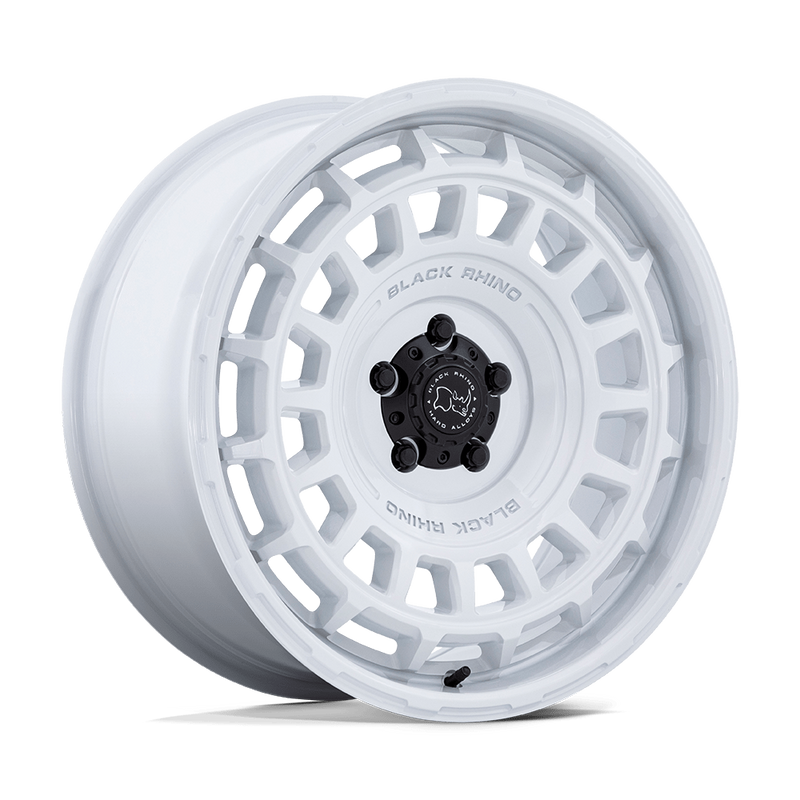

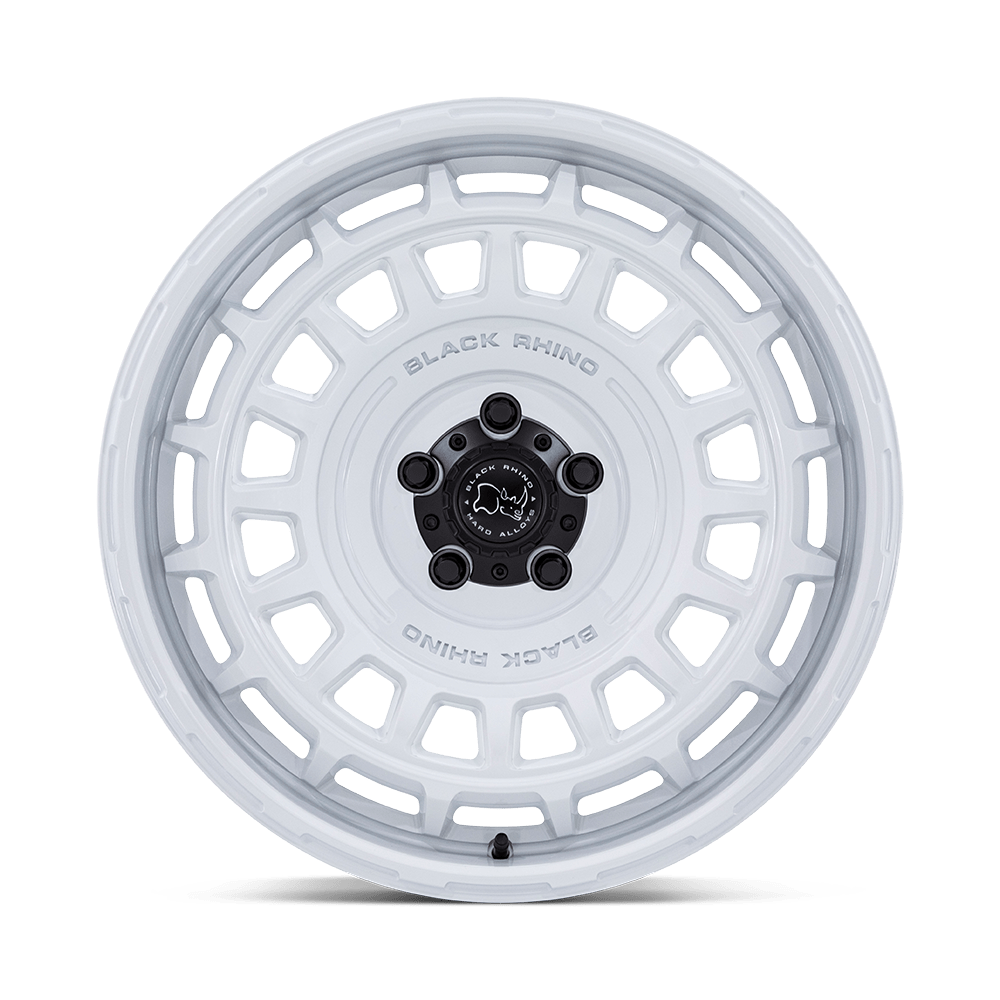

The Black Rhino Awol BR024 is a wheel that earns its name. Designed for 4WD builds that demand both presence and performance, the Awol combines a bold multi-spoke design with a broad fitment range that covers everything from Jeep Wranglers to Toyota Land Cruisers. Available in 17” and 20” sizes across 5-lug and 6-lug bolt patterns, with offsets ranging from -10mm to +25mm, the Awol gives you genuine flexibility whether you’re running a lifted rig or a stock setup. A 2,650 lb load rating means it’s built to handle the demands of a fully loaded 4WD without compromise.

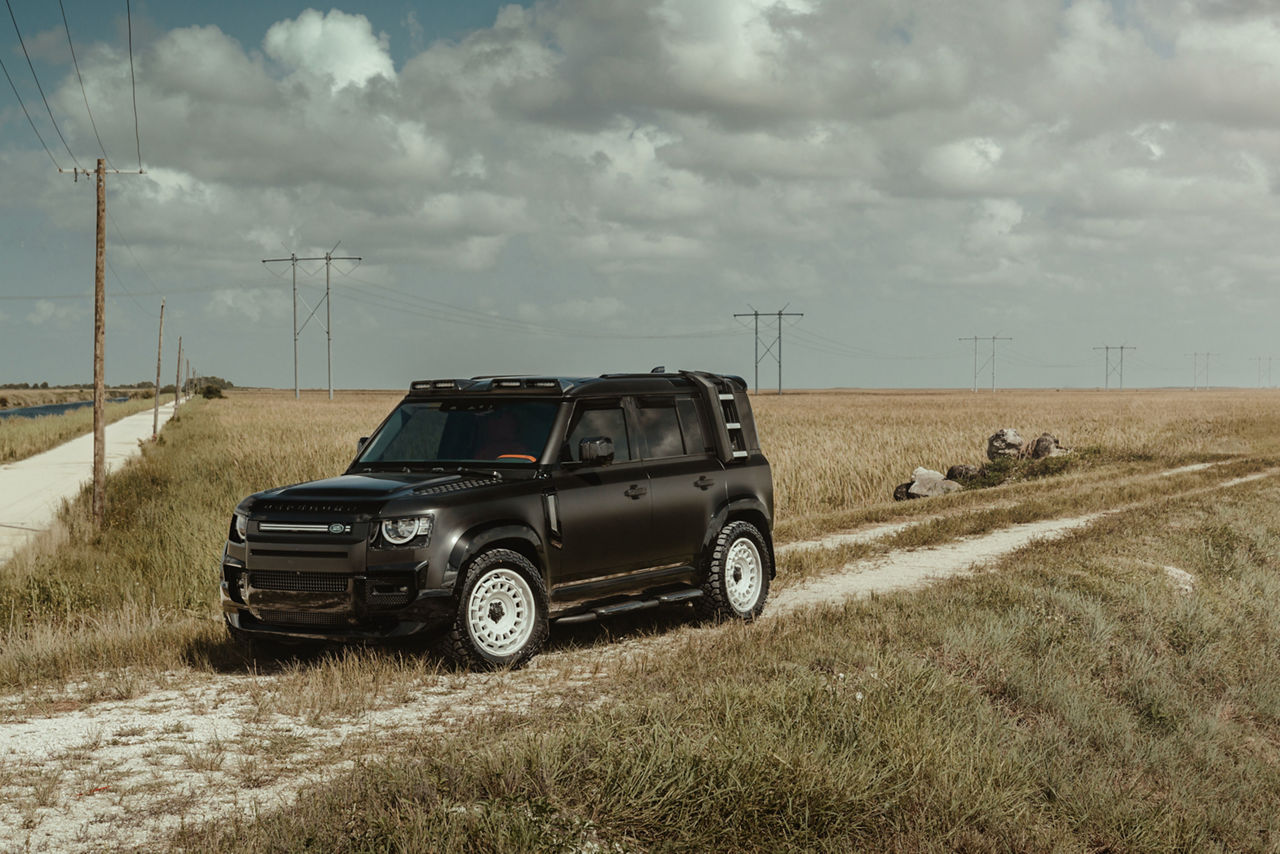

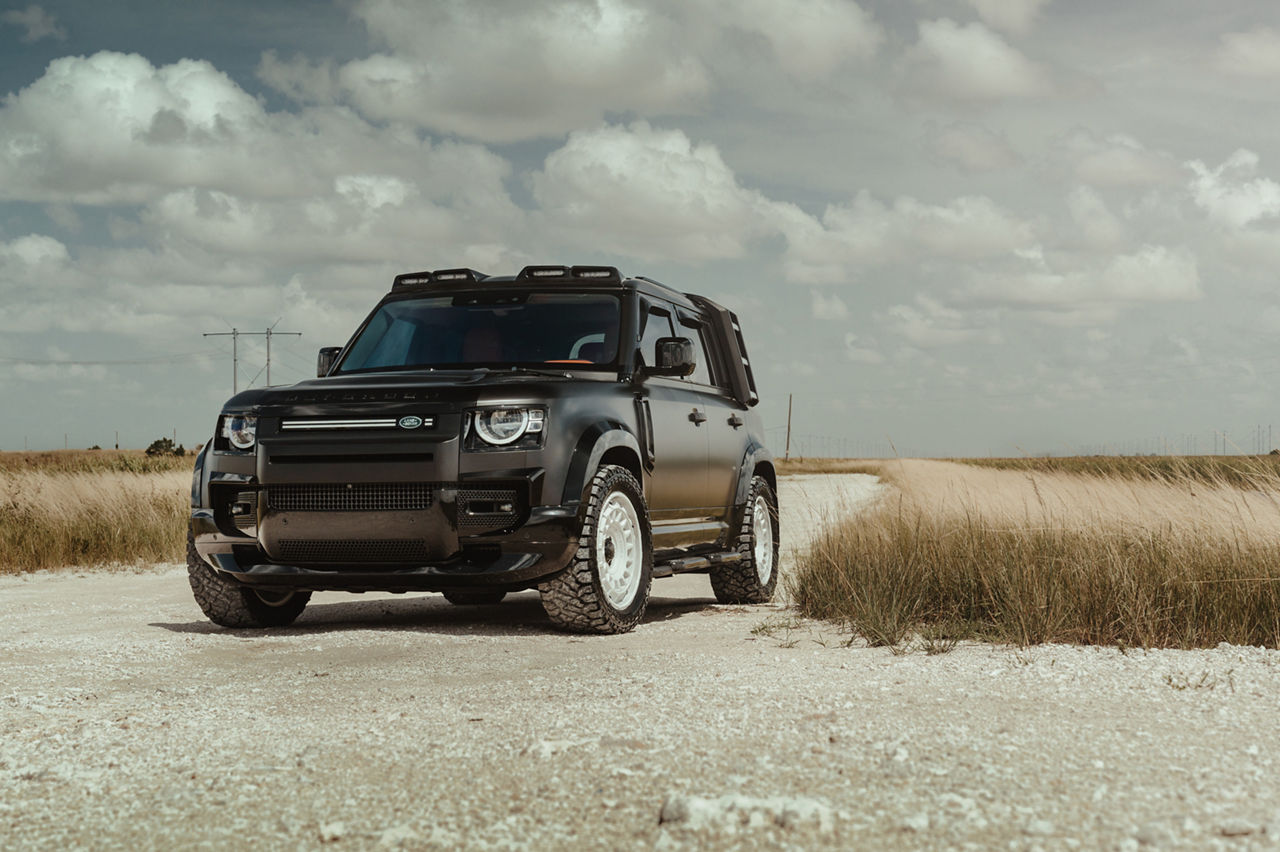

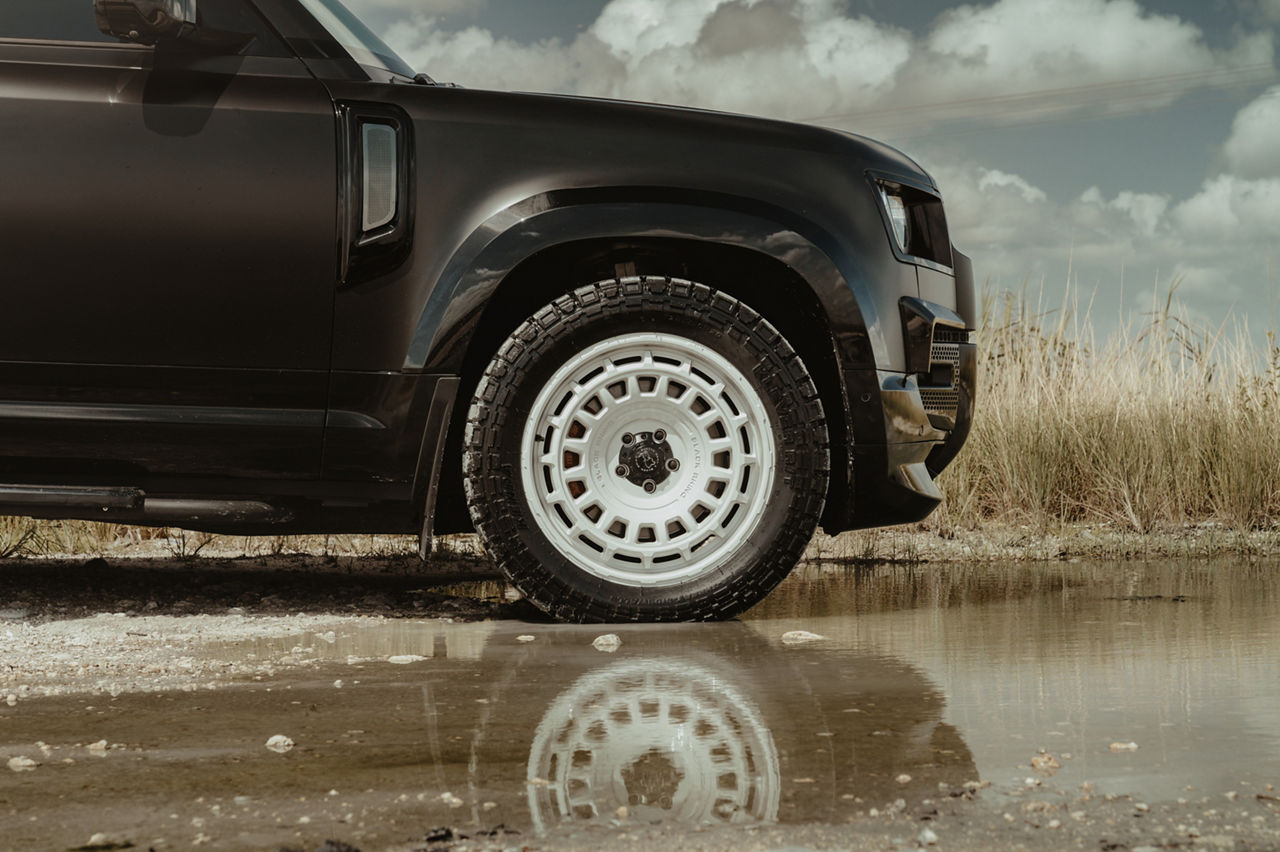

The Gloss White finish makes the Awol one of the most distinctive options in the Black Rhino lineup. Clean, bold, and impossible to ignore — gloss white on a multi-spoke wheel creates a striking contrast against dark tyres and body panels, and suits builds that want to make a statement rather than blend in. It’s a finish that holds up well in the field, and pairs particularly well with black, dark grey, or earth-tone vehicles where the white really pops. Whether you’re building a show rig or a daily driver, Gloss White on the Awol is a confident, purposeful choice.
Specifications
| Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load Rating |
|---|---|---|---|---|---|---|
| 17X8.5 | 6X139.7 | 4.36 | -10mm | 106.1 | 29.76 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.14 | 10mm | 106.1 | 27.55 lbs | 2650 |
| 17X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 27.33 lbs | 2650 |
| 20X8.5 | 5X120 | 5.73 | 25mm | 74.1 | 35.82 lbs | 2650 |
| 20X8.5 | 6X139.7 | 5.22 | 12mm | 106.1 | 36.46 lbs | 2650 |
| 20X8.5 | 6X139.7 | 5.73 | 25mm | 106.1 | 35.75 lbs | 2650 |
Key Features
- Bold multi-spoke design — strong, confident face that delivers a genuine visual upgrade for 4WDs and trucks without overcomplicating the build
- Gloss White finish — clean, bold, and striking against dark tyres and body panels — suits builds that want to make a statement rather than blend in
- Available in 17” and 20” — 6X139.7 bolt pattern in 17”, and 5X120 and 6X139.7 in 20”, to suit Toyota Land Cruiser, Nissan Patrol, Ford Ranger, and more
- Offset range from -10mm to +25mm — suits aggressive stances through to clean, tucked setups for both lifted and stock vehicles
- 2,650 lb load rating — built to handle the demands of a fully loaded 4WD or truck setup
- Broad vehicle compatibility — suits Toyota Land Cruiser, Nissan Patrol, Ford Ranger, Holden Colorado, and more across multiple bolt patterns
Expert Help — Australia Wide
Not sure which size or bolt pattern suits your vehicle? Our team is available via live online chat to help you nail the fitment before you buy. We deliver Australia wide with fast, tracked shipping, and offer flexible payment options including Afterpay, Zip, and major credit cards — so you can get the right wheels on your rig sooner.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCULATOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
Free delivery is not available on Wheels & Tyres.
| Wheels | Wheels | Rims, Wheels, Tyres | Price per wheel varies depending on wheel weight and shipping destination. Shipping costs for East coast of Australia start at approx. $20 per wheel. |
Free is not available on Wheels & Tyres.
FREIGHT COSTS CAN BE CALCULATED IN THE CART OR CHECKOUT
* Oversize, heavy or bulky items are excluded from free freight. Costs will vary depending on delivery location.
| Shipping Category | Description | Example | Estimate Costs |
| Standard | General items | Camping gear, lights, electrical |
$15 to FREE
|
| Oversize Items - 1 | Large items, low weight | Flares, large roof racks | $45 - $90 |
| Oversize Items - 2 | Medium size, heavy items | Winches, bash plates, lift kits | $50 - $100 |
| Oversize Items - 3 | Long / oversize items | Awnings, long cross bars | $50 - $200 |
| Oversize Items - 4 | Over 25kgs or very large | Large bike racks | $100 - $200 |
| Oversize Items - 5 | Large - delivery to commercial address only | Roller covers & lids | $50 - $100 |
| Wheels | Wheels | Rims, Wheels, Tyres | From. $20 per wheel |
| Towing | Towing | Towbars, hitches | From $40 per delivery, depending on product size and destination. |
| Protection | Protection | Bullbars, rear bars, side steps, nudge bars | From $100 per delivery, depending on product size and destination. |
#excludes remote or island locations. Some products are not available for delivery to NT, WA or TAS.
USA & New Zealand Freight Available
Rates as per Australia Post calculator, available in the Cart/Checkout.
Wheels & Tyres
Wheel & tyre freight charges vary depending on the quantity purchased. The online freight calculator at checkout will provide accurate price, dependent upon total weight of the goods purchased. Minimum freight is $20 for 1 wheel or tyre. Online wheel & tyres orders can only be purchased for QLD, NSW, VIC and ACT. For all other orders please email or call our team.
