ALTIQ™ GEN3 7" LED Spot Light Stealth Kit to suit Isuzu Dmax 2020 onwards
Checkout securley with
- Description
- 🛡️ Fitment Advice
ALTIQ™ GEN3 D-MAX 7" LED Spot Light Stealth Kit – Hidden OEM-Style Driving Light Upgrade
Maximum Driving Light Performance. Minimal Visual Impact.
Transform your Isuzu D-MAX with a stealth lighting system engineered to deliver exceptional long-range visibility while maintaining a clean, factory-inspired appearance. The ALTIQ™ GEN3 D-MAX 7" LED Spot Light Stealth Kit integrates two high-performance Rogue Mk3 7-inch driving lights discreetly behind the vehicle's grille, eliminating the need for a bull bar or exposed mounting brackets.
Designed specifically for the Gen3 D-MAX platform, this complete kit uses precision-engineered vehicle-specific brackets that mount directly to factory locations. The result is a seamless installation with no cutting, drilling, or permanent modifications required.
Purpose-Built for the Isuzu D-MAX
Every component has been developed specifically for the D-MAX, ensuring precise alignment and OEM-style integration. From the bespoke laser-cut mounting brackets to the dedicated high beam adapter and plug-and-play wiring harness, every part is designed to simplify installation while delivering a professional finish.
Compatible options are available for:
- August 2020–2023 Isuzu D-MAX
- 2024+ Isuzu D-MAX Facelift
Key Features
- Vehicle-specific stealth mounting system for Isuzu D-MAX
- No bull bar or exposed brackets required
- No drilling, cutting or permanent vehicle modifications
- Two ALTIQ™ Rogue Mk3 7" LED Driving Lights included
- Bespoke laser-cut mounting bracket system
- Plug-and-play Fast Fit wiring harness
- Vehicle-specific D-MAX high beam adapter
- Integrated Daytime Running Lights (DRLs)
- Panoramic flood covers included for adjustable beam characteristics
- Designed to maintain efficient airflow through the grille
- Premium OEM-inspired concealed installation
- 10-Year Australian Warranty

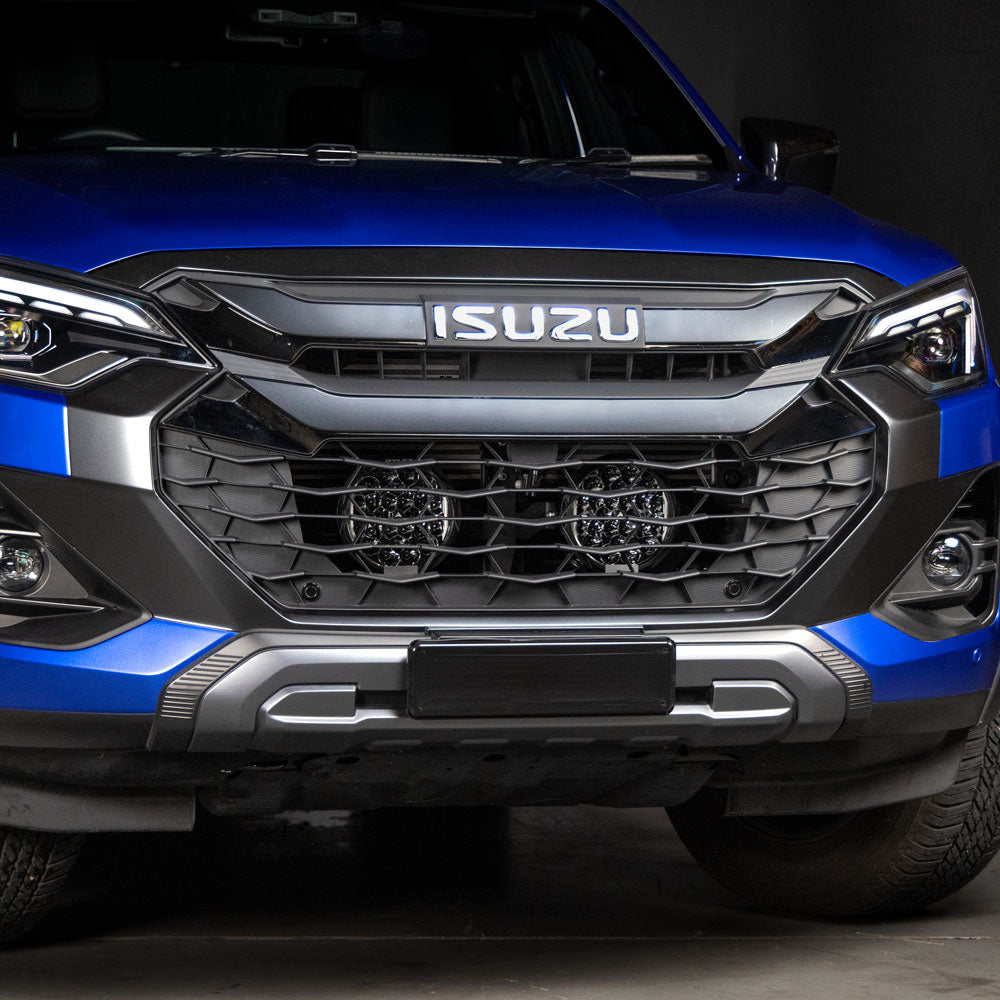

Hidden Installation. Outstanding Illumination.

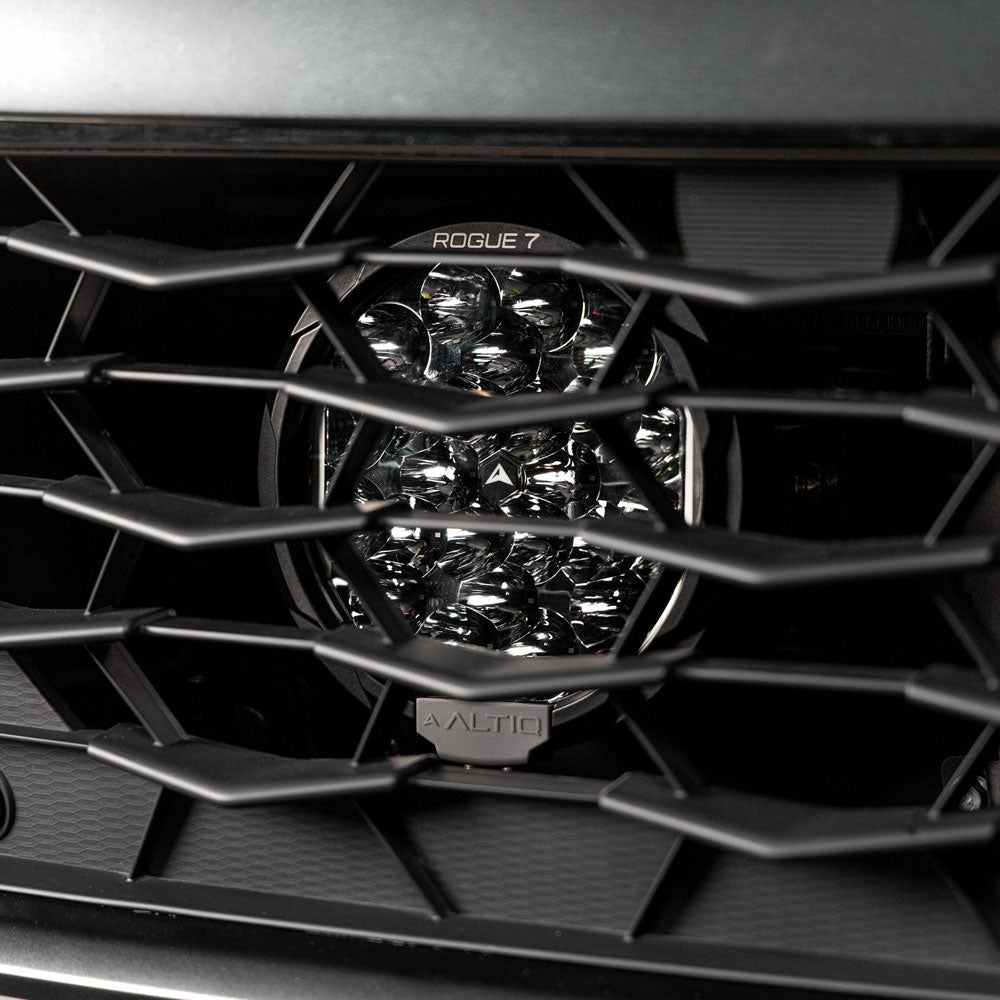

Mounted discreetly behind the factory grille, the Rogue Mk3 driving lights provide impressive long-distance projection together with broad beam coverage. Unlike traditional grille-mounted light bars, the dual 7-inch driving light configuration delivers exceptional lighting performance while preserving the clean appearance of the front end.

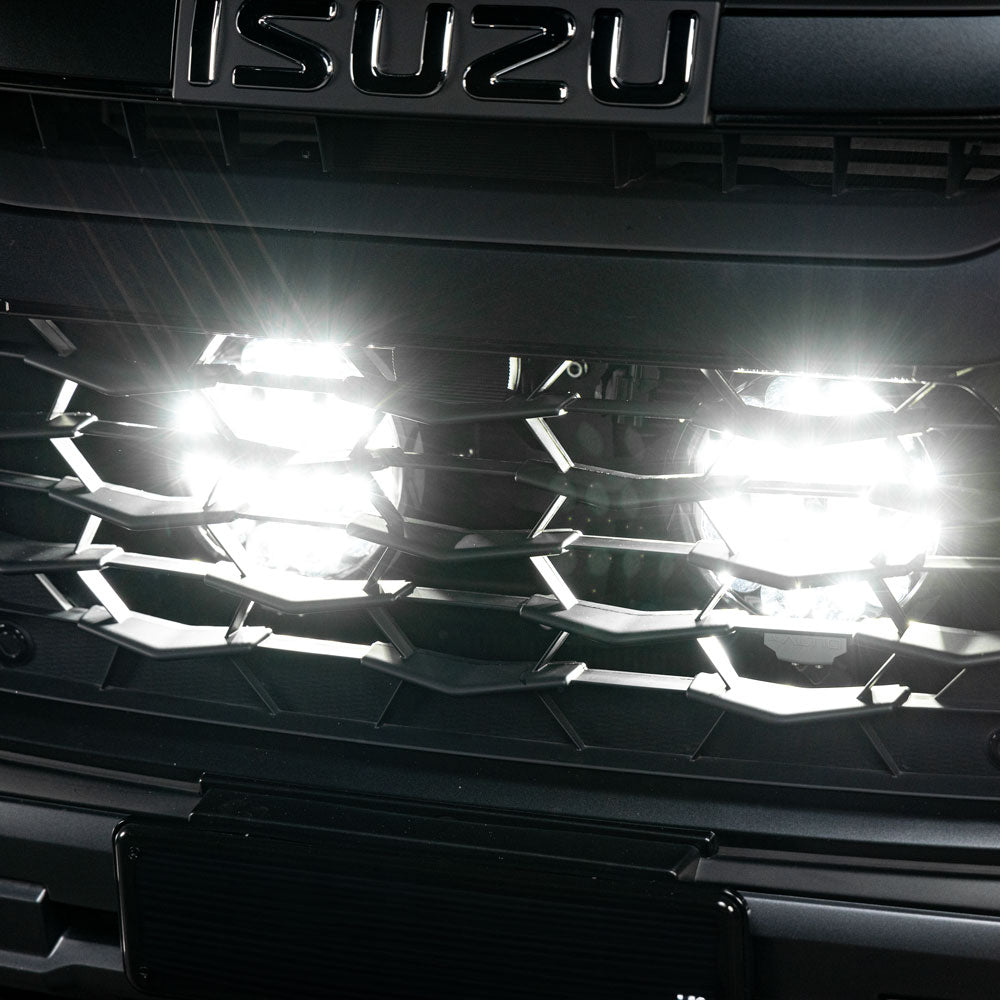

Integrated DRLs remain visible through the grille, creating a distinctive factory-plus look during daytime driving.
Tailor the Beam to Your Driving Conditions
The included Panoramic Flood Covers allow the beam pattern to be adjusted to suit different environments.
- Remove the covers for maximum long-range projection.
- Install the Panoramic Covers to create a broader flood beam for technical off-road tracks, rural roads and wider field illumination.
One lighting system offers two practical beam configurations without replacing the driving lights.
Premium Construction
Built for demanding Australian conditions, every component has been selected for durability and long-term reliability. The Rogue Mk3 driving lights feature a virtually unbreakable GE Lexan™ lens, premium DuPont Midnight Paint finish, marine-grade stainless steel hardware, and a Gore-Tex® breather valve to minimise internal condensation.
CISPR 25 Class 3 certification helps prevent interference with UHF radios and other communication equipment, while the IP68–IP69K waterproof rating provides protection against dust, water ingress and pressure washing.
What's Included
- 2 × ALTIQ™ Rogue Mk3 7" LED Driving Lights

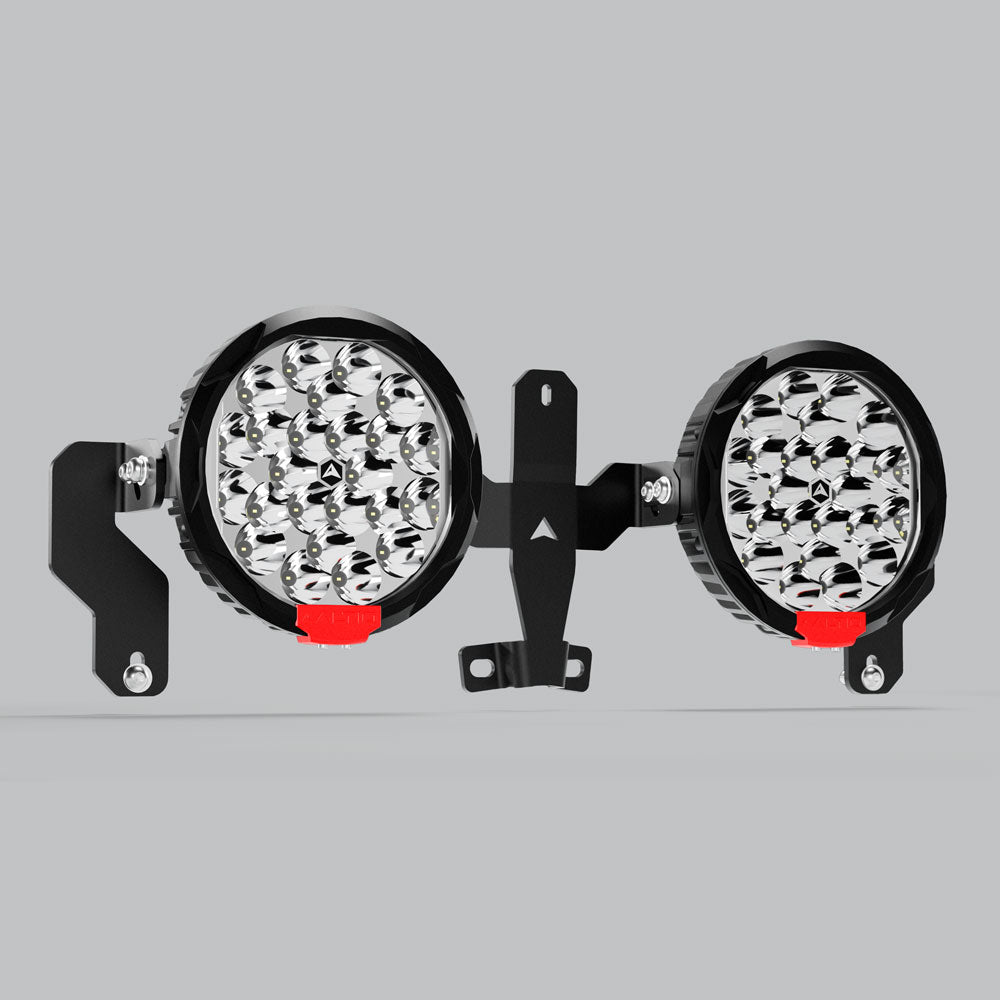

- 1 × Bespoke ALTIQ™ Stealth Bracket Kit
- 1 × ALTIQ™ Plug & Play Fast Fit Wiring Harness
- 1 × Isuzu D-MAX High Beam Adapter (model year specific)
- 2 × Panoramic Flood Covers
- Stainless steel mounting hardware
Technical Specifications
| Specification | Details |
|---|---|
| Lens | GE Lexan™ 3mm |
| LEDs | Osram BOOST Oslon – 7W each |
| DRL | Osram |
| Candela | 1,262,018 |
| Luminous Intensity | 255cd/m² |
| LED Thermal Resistance | 7.2 K/W |
| Power Draw | 130W per light (±5%) |
| Input Voltage | 10–30V DC |
| Lumens | Exceeds 26,000 (awaiting laboratory report) |
| Colour Temperature | 5700K @ 87+ CRI |
| Waterproof Rating | IP68–IP69K |
| Finish | DuPont Midnight Paint |
| Fasteners | 316L Marine Grade Stainless Steel with Torx Security Bolts |
| Wiring Harness | 14 Gauge Dual DT Output, compatible with negative and positive switched headlights |
| Lumen Maintenance | LM-80 – 50,000 Hours |
| Total Kit Weight | 4.5kg (including brackets and fasteners) |
| Warranty | 10 Years |
Engineered for Everyday Touring and Serious Off-Road Adventures
Whether you're travelling remote highways, tackling backcountry tracks or driving rural roads after dark, the ALTIQ™ GEN3 D-MAX 7" LED Spot Light Stealth Kit provides powerful forward lighting without compromising your vehicle's factory styling. With vehicle-specific engineering, premium materials and straightforward installation, it delivers a refined lighting upgrade designed exclusively for the modern Isuzu D-MAX platform.
