ALTIQ™ 32" LED Light Bar Kit to suit Jimny (2018+)
Checkout securley with
- Description
- Delivery
- 🛡️ Fitment Advice
ALTIQ™ Jimny (2018+) 32" LED Light Bar Kit – Vehicle-Specific Stealth Mounting System
Upgrade Your Night Driving Without Changing Your Jimny
Designed exclusively for the 2018+ Suzuki Jimny JB74, the ALTIQ™ 32" LED Light Bar Kit delivers a significant lighting upgrade while preserving the factory appearance of your vehicle. Unlike conventional light bar installations, this complete kit mounts directly to the factory mounting points, eliminating the need for a bull bar, rally bar, drilling, cutting, or permanent modifications.
Available with either a sleek Single Row or high-output Double Row light bar, the system is engineered to integrate cleanly behind the grille while providing exceptional forward illumination for touring, off-road adventures, rural driving, and low-light conditions.
Why Choose the ALTIQ™ Jimny Light Bar Kit?
If you're looking for a lighting solution that combines straightforward installation, vehicle-specific engineering, and outstanding performance, this kit offers everything required in one package. Every mounting bracket has been purpose-built for the Suzuki Jimny JB74, ensuring an accurate fit without relying on universal hardware or fabrication.
The included plug-and-play wiring harness and high beam adapter simplify installation while maintaining a clean, professional finish.
Key Features
- Designed specifically for Suzuki Jimny JB74 (2018+)
- No bull bar, rally bar, drilling, cutting, or permanent modifications required
- Mounts directly using factory mounting points
- Installation can be completed in under 15 minutes using basic tools
- Available with either a 32" Single Row or Double Row Hybrid LED Light Bar

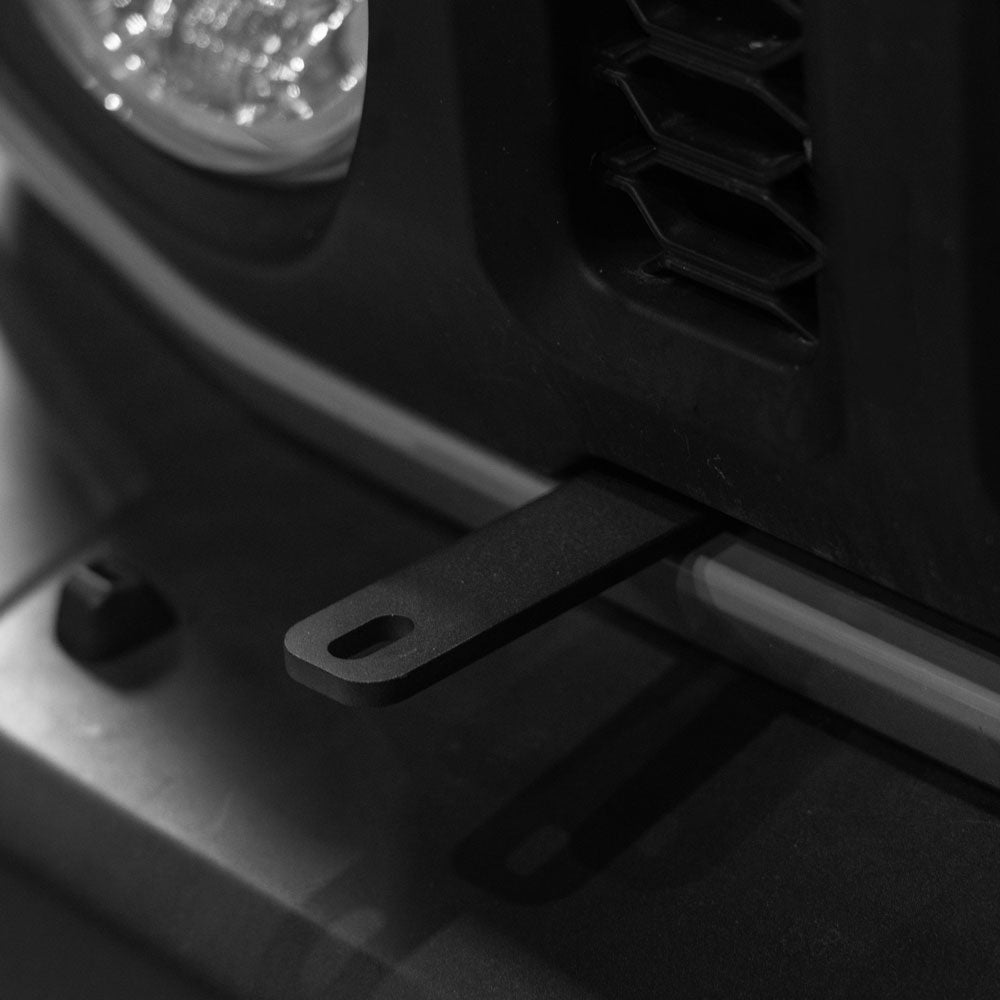

- Bespoke Jimny-specific mounting brackets
- Plug-and-play wiring harness included
- Vehicle-specific high beam piggyback adapter included
- Hybrid Tri-Optic beam pattern combining Spot, Combo and Flood lighting
- Engineered with GE Lexan 3mm lens
- DuPont Midnight Paint finish
- 316L marine-grade stainless steel fasteners
- Waterproof rating: IP68–IP69K
- Backed by a 10-Year Warranty
Performance
Compared with the factory high beams, the ALTIQ™ 32" Hybrid Double Row Light Bar delivers substantial improvements in usable light output.
Measured Performance
- Factory high beam: 1,014 Lux at 6 metres
- ALTIQ™ Hybrid Double Row: 11,900 Lux at 6 metres
1 Lux Distance
- Factory high beam: 207 metres
- ALTIQ™ 32" Hybrid Double Row LED Light Bar: 878 metres
What's Included
- 1 × ALTIQ™ Hybrid Light Bar (Single Row or Double Row)
- 2 × Rear under-mount light bar brackets
- 2 × Jimny-specific mounting brackets
- 1 × Fast Fit plug-and-play wiring harness
- 1 × High beam adapter for Suzuki Jimny 2018+
- Stainless steel mounting hardware
- Stainless steel Allen key set
Technical Specifications
| Specification | Single Row | Double Row |
|---|---|---|
| LUX Distance | 1 Lux @ 626m | 1 Lux @ 878m |
| Lumens | 7,380 | 14,850 |
| LEDs | 32 × Genuine 5W OSRAM P9 Chips | 60 × Genuine 5W OSRAM P9 Chips |
| Lens | GE Lexan 3mm | GE Lexan 3mm |
| Finish | DuPont Midnight Paint | DuPont Midnight Paint |
| Fasteners | 316L Marine Stainless Steel | 316L Marine Stainless Steel |
| Waterproof Rating | IP68–IP69K | IP68–IP69K |
| Input Voltage | 10–30V DC | 10–30V DC |
| Current Draw | 9.833A @ 12V | 11.33A @ 12V |
| Colour Temperature | 5700K @ 82+ CRI | 5700K @ 82+ CRI |
| Wiring Harness | 14 Gauge Dual DT Output, Negative and Positive Switched Headlight Compatible | 14 Gauge Dual DT Output, Negative and Positive Switched Headlight Compatible |
| Weight | 2.25kg (including brackets) | 3.20kg (including brackets) |
| Warranty | 10 Years | 10 Years |
Purpose-Built for the JB74 Platform
Every bracket in this kit has been engineered specifically for the Suzuki Jimny JB74 platform. Developed using dedicated vehicle measurements and precision design processes, the mounting system delivers a secure fit while maintaining a tidy, factory-style appearance behind the grille.
Whether you prefer the discreet profile of the Single Row light bar or the more commanding look of the Double Row version, both options are designed to integrate seamlessly with the vehicle while providing dependable lighting performance.
Vehicle Compatibility
- Suzuki Jimny JB74 (2018+)
