Airbag Man Coil Air Suspension Helper Kit for Land Rover Defender 110 and 130 1990-2016

Stop the rear of your Land Rover Defender from sagging when you hitch up a trailer or load up for a trip. The Airbag Man CR5028 coil air suspension helper kit fits inside your existing coil springs and lets you add support exactly when you need it, simply by inflating the airbags through the supplied valves.

Coil Spring Air Helper Kit for the Land Rover Defender 110 and 130 (1990 to 2016)

These polyurethane coil helper airbags sit inside the factory coil springs and work alongside them. Add air when the vehicle is loaded to bring it back to its correct ride height, then let air out for a comfortable unladen ride. It is the same concept as adjusting the pressure in your tyres.

Key Features

• Coil helper airbags that fit inside your existing coil springs
• Adjustable operating pressure from 5 PSI to 30 PSI
• No-drill airbag mounts (holes may be required for the inflation valves)
• Complete kit with airbags, hardware, nylon tubing, fittings and step-by-step instructions
• Airbag Limited Lifetime Manufacturer's Warranty

Benefits of Coil Airbags

• Eliminates spring sag under load and when towing
• Improves steering and braking by keeping the vehicle level
• Reduces body roll and helps prevent bottoming out
• Levels uneven loads front to rear and side to side
• Promotes more even tyre wear and less stress on suspension components

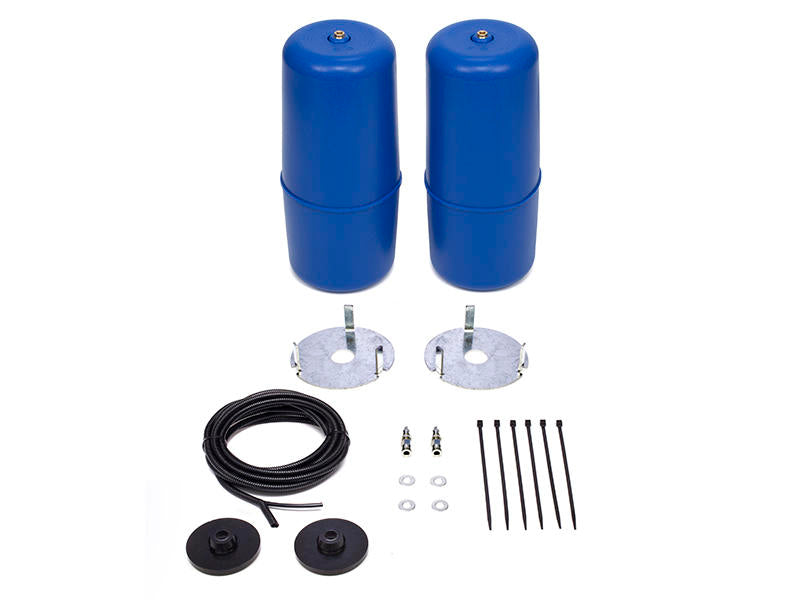

What's Included

The kit includes the airbags, mounting hardware, nylon air line tubing, fittings and detailed fitting instructions. The instruction manual and fitting guide can also be accessed on the Airbag Man website or by scanning the QR code on the packaging.

Vehicle Fitment

• Land Rover Defender 110, all models, 1990 to 2016 (hub centre to guard up to 570mm at driving height)
• Land Rover Defender 130, all models, 1990 to 2016 (bump stop gap up to 170mm at driving height)

Part number: CR5028

NOTE: Fitment to the Defender 130 requires removal of the inner coil. Vehicles raised 50mm or more require a different kit.

Image is a representation only. Due to ongoing product transitions, your kit may vary slightly from the image shown.
