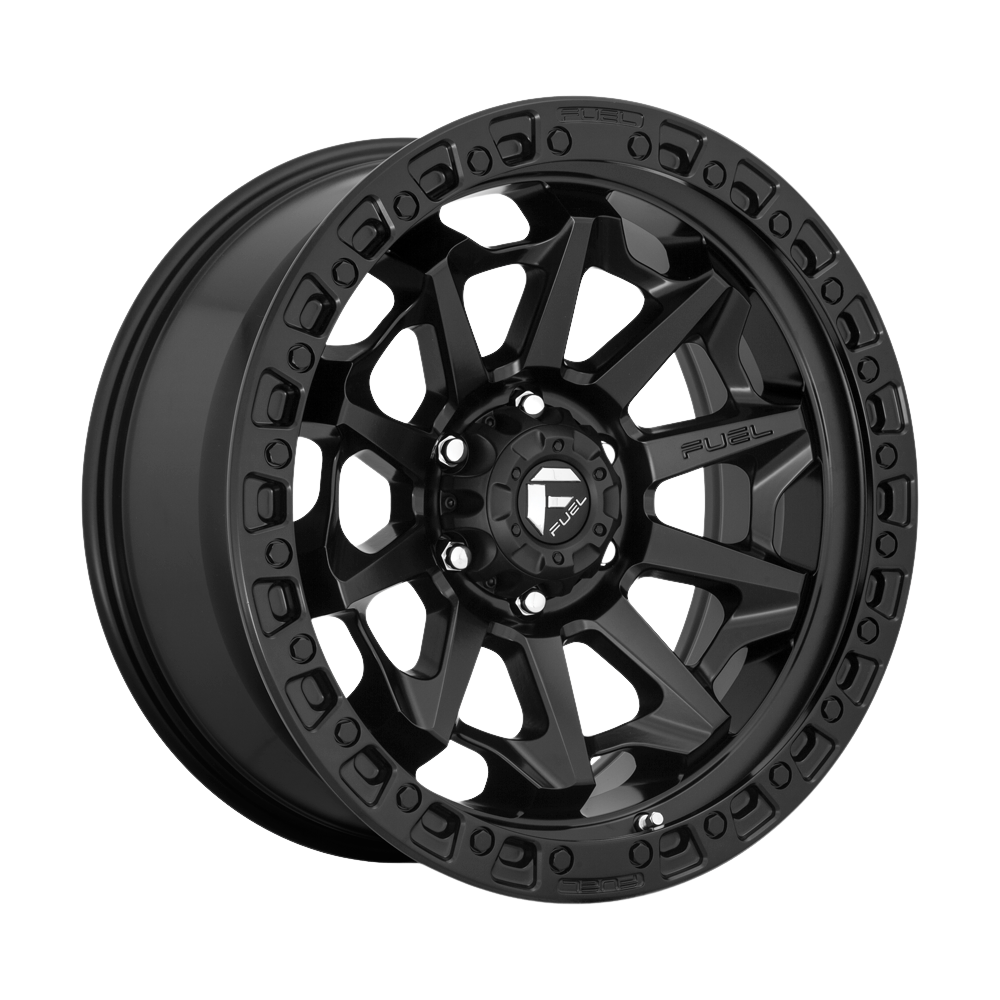

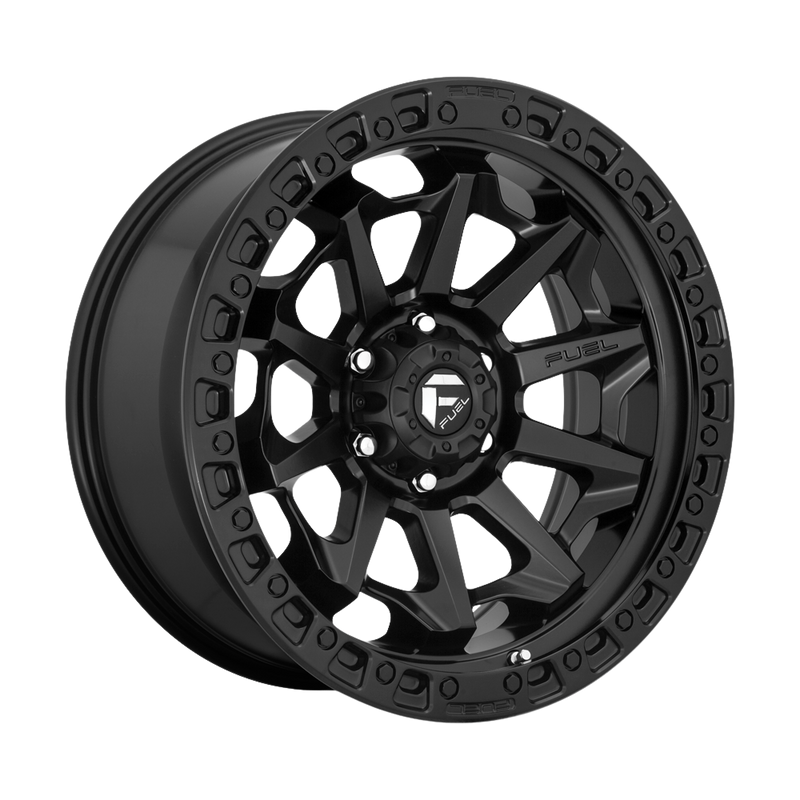

Super tough Fuel Offroad Covert wheels in matt black finish. Perfect for most 4x4 utes and trucks, including Ford Rangers, Mitsubishi Tritons, Toyota Hilux's and more.
Don't know your size? Ask our team in the online chat below.
| Part# | Model | Finish | Size | Bolt Pattern | Backspace | Offset | Bore | Weight | Load | Lip Size | Cap |
| D69415806537 | D694 COVERT | MATTE BLACK | 15X8 | 5X114.3 | 3.75 | -19mm | 72.56 | 25.80 lbs | 2500 | 1.73 | 1001-57B |
| D69415808537 | D694 COVERT | MATTE BLACK | 15X8 | 5X139.7 | 3.75 | -19mm | 108 | 25.80 lbs | 2500 | 1.73 | 1004-95MB |
| D69415808337 | D694 COVERT | MATTE BLACK | 15X8 | 6X139.7 | 3.75 | -19mm | 108 | 25.80 lbs | 2500 | 1.73 | 1001-58B |
| D69416808545 | D694 COVERT | MATTE BLACK | 16X8 | 5X139.7 | 4.54 | 01mm | 108 | 37.99 lbs | 2500 | 1.76 | 1004-95MB |
| D69416808445 | D694 COVERT | MATTE BLACK | 16X8 | 6X139.7 | 4.54 | 01mm | 106.1 | 37.99 lbs | 2300 | 1.76 | 1001-58B |
| D69417858752 | D694 COVERT | MATTE BLACK | 17X8.5 | 6X114.3 | 5.3 | 14mm | 66.06 | 32.60 lbs | 2500 | 1.85 | 1003-44B |
| D69417859452 | D694 COVERT | MATTE BLACK | 17X8.5 | 6X120 | 5.3 | 14mm | 67.06 | 32.60 lbs | 2500 | 1.85 | 1003-44B |
| D69417858952 | D694 COVERT | MATTE BLACK | 17X8.5 | 6X135 | 5.3 | 14mm | 87.1 | 32.60 lbs | 2500 | 1.85 | 1001-58B |
| D69417858452 | D694 COVERT | MATTE BLACK | 17X8.5 | 6X139.7 | 5.3 | 14mm | 106.1 | 32.60 lbs | 2500 | 1.85 | 1001-58B |
| D69417858447 | D694 COVERT | MATTE BLACK | 17X8.5 | 6X139.7 | 4.75 | 00mm | 106.1 | 33.30 lbs | 2500 | 1.85 | 1001-58B |
| D69417907550 | D694 COVERT | MATTE BLACK | 17X9 | 5X127 | 5.04 | 01mm | 71.5 | 32.00 lbs | 2500 | 1.86 | 1002-33MB |
| D69417907545 | D694 COVERT | MATTE BLACK | 17X9 | 5X127 | 4.53 | -12mm | 71.5 | 31.00 lbs | 2500 | 1.86 | 1002-33MB |
| D69417905650 | D694 COVERT | MATTE BLACK | 17X9 | 5X150 | 5.04 | 01mm | 110.1 | 32.00 lbs | 2500 | 1.86 | 1001-56B |
| D69417905645 | D694 COVERT | MATTE BLACK | 17X9 | 5X150 | 4.53 | -12mm | 110.1 | 31.00 lbs | 2500 | 1.86 | 1001-56B |
| D69417908950 | D694 COVERT | MATTE BLACK | 17X9 | 6X135 | 5.04 | 01mm | 87.1 | 32.00 lbs | 2500 | 1.86 | 1001-58B |
| D69417908945 | D694 COVERT | MATTE BLACK | 17X9 | 6X135 | 4.53 | -12mm | 87.1 | 31.00 lbs | 2500 | 1.86 | 1001-58B |
| D69417908450 | D694 COVERT | MATTE BLACK | 17X9 | 6X139.7 | 5.04 | 01mm | 106.1 | 32.00 lbs | 2500 | 1.86 | 1001-58B |
| D69417908445 | D694 COVERT | MATTE BLACK | 17X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 31.00 lbs | 2500 | 1.86 | 1001-58B |
| D69417908250 | D694 COVERT | MATTE BLACK | 17X9 | 8X165.1 | 5.04 | 1mm | 125.1 | 36.30 lbs | 3700 | 1.84 | 1001-59B |
| D69417901750 | D694 COVERT | MATTE BLACK | 17X9 | 8X170 | 5.04 | 1mm | 125.1 | 36.30 lbs | 3700 | 1.84 | 1001-60B |
| D69417901850 | D694 COVERT | MATTE BLACK | 17X9 | 8X180 | 5.04 | 1mm | 124.2 | 36.30 lbs | 3700 | 1.84 | 1003-21B |
| D69418907545 | D694 COVERT | MATTE BLACK | 18X9 | 5X127 | 4.53 | -12mm | 71.5 | 36.08 lbs | 2500 | 1.86 | 1002-33MB |
| D69418907557 | D694 COVERT | MATTE BLACK | 18X9 | 5X127 | 5.79 | 20mm | 71.5 | 34.10 lbs | 2500 | 1.84 | 1002-33MB |
| D69418907550 | D694 COVERT | MATTE BLACK | 18X9 | 5X127 | 5.04 | 01mm | 71.5 | 36.08 lbs | 2500 | 1.86 | 1002-33MB |
| D6941890B550 | D694 COVERT | MATTE BLACK | 18X9 | 5X139.7 | 5.04 | 01mm | 87.1 | 36.08 lbs | 2500 | 1.86 | 1001-61B |
| D6941890B557 | D694 COVERT | MATTE BLACK | 18X9 | 5X139.7 | 5.79 | 20mm | 87.1 | 34.10 lbs | 2500 | 1.84 | 1001-61B |
| D69418905650 | D694 COVERT | MATTE BLACK | 18X9 | 5X150 | 5.04 | 01mm | 110.1 | 36.08 lbs | 2500 | 1.86 | 1001-56B |
| D69418905657 | D694 COVERT | MATTE BLACK | 18X9 | 5X150 | 5.79 | 20mm | 110.1 | 34.10 lbs | 2500 | 1.84 | 1001-56B |
| D69418908950 | D694 COVERT | MATTE BLACK | 18X9 | 6X135 | 5.04 | 01mm | 87.1 | 36.08 lbs | 2500 | 1.86 | 1001-58B |
| D69418908957 | D694 COVERT | MATTE BLACK | 18X9 | 6X135 | 5.79 | 20mm | 87.1 | 34.10 lbs | 2500 | 1.84 | 1001-58B |
| D69418908945 | D694 COVERT | MATTE BLACK | 18X9 | 6X135 | 4.53 | -12mm | 87.1 | 36.08 lbs | 2500 | 1.86 | 1001-58B |
| D69418908445 | D694 COVERT | MATTE BLACK | 18X9 | 6X139.7 | 4.53 | -12mm | 106.1 | 36.08 lbs | 2500 | 1.86 | 1001-58B |
| D69418908450 | D694 COVERT | MATTE BLACK | 18X9 | 6X139.7 | 5.04 | 01mm | 106.1 | 36.08 lbs | 2500 | 1.86 | 1001-58B |
| D69418908457 | D694 COVERT | MATTE BLACK | 18X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 34.10 lbs | 2500 | 1.84 | 1001-58B |
| D69418908257 | D694 COVERT | MATTE BLACK | 18X9 | 8X165.1 | 5.79 | 20mm | 125.1 | 39.60 lbs | 3700 | 1.88 | 1001-59B |
| D69418908245 | D694 COVERT | MATTE BLACK | 18X9 | 8X165.1 | 4.53 | -12mm | 125.1 | 38.40 lbs | 3700 | 1.85 | 1001-59B |
| D69418908250 | D694 COVERT | MATTE BLACK | 18X9 | 8X165.1 | 5.04 | 1mm | 125.1 | 38.40 lbs | 3700 | 1.85 | 1001-59B |
| D69418901757 | D694 COVERT | MATTE BLACK | 18X9 | 8X170 | 5.79 | 20mm | 125.1 | 39.60 lbs | 3700 | 1.88 | 1001-60B |
| D69418901745 | D694 COVERT | MATTE BLACK | 18X9 | 8X170 | 4.53 | -12mm | 125.1 | 38.40 lbs | 3700 | 1.85 | 1001-60B |
| D69418901750 | D694 COVERT | MATTE BLACK | 18X9 | 8X170 | 5.04 | 1mm | 125.1 | 38.40 lbs | 3700 | 1.85 | 1001-60B |
| D69418901857 | D694 COVERT | MATTE BLACK | 18X9 | 8X180 | 5.79 | 20mm | 124.2 | 39.60 lbs | 3700 | 1.88 | 1003-21B |
| D69418901850 | D694 COVERT | MATTE BLACK | 18X9 | 8X180 | 5.04 | 1mm | 124.2 | 38.40 lbs | 3700 | 1.85 | 1001-59B |
| D69420907550 | D694 COVERT | MATTE BLACK | 20X9 | 5X127 | 5.04 | 01mm | 71.5 | 41.00 lbs | 2500 | 1.86 | 1002-33MB |
| D69420907557 | D694 COVERT | MATTE BLACK | 20X9 | 5X127 | 5.79 | 20mm | 71.5 | 40.48 lbs | 2500 | 1.88 | 1002-33MB |
| D6942090B457 | D694 COVERT | MATTE BLACK | 20X9 | 5X139.7 | 5.79 | 20mm | 78.1 | 40.48 lbs | 2500 | 1.88 | 1001-61B |
| D69420905657 | D694 COVERT | MATTE BLACK | 20X9 | 5X150 | 5.79 | 20mm | 110.1 | 40.48 lbs | 2500 | 1.88 | 1001-56B |
| D69420905650 | D694 COVERT | MATTE BLACK | 20X9 | 5X150 | 5.04 | 01mm | 110.1 | 41.00 lbs | 2500 | 1.86 | 1001-56B |
| D69420908957 | D694 COVERT | MATTE BLACK | 20X9 | 6X135 | 5.79 | 20mm | 87.1 | 40.48 lbs | 2500 | 1.88 | 1001-58B |
| D69420908950 | D694 COVERT | MATTE BLACK | 20X9 | 6X135 | 5.04 | 01mm | 87.1 | 41.00 lbs | 2500 | 1.86 | 1001-58B |
| D69420908450 | D694 COVERT | MATTE BLACK | 20X9 | 6X139.7 | 5.04 | 01mm | 106.1 | 41.00 lbs | 2500 | 1.86 | 1001-58B |
| D69420908457 | D694 COVERT | MATTE BLACK | 20X9 | 6X139.7 | 5.79 | 20mm | 106.1 | 40.48 lbs | 2500 | 1.88 | 1001-58B |
| D69420908250 | D694 COVERT | MATTE BLACK | 20X9 | 8X165.1 | 5.04 | 1mm | 125.1 | 43.34 lbs | 3700 | 1.84 | 1001-59B |
| D69420908257 | D694 COVERT | MATTE BLACK | 20X9 | 8X165.1 | 5.79 | 20mm | 125.1 | 43.67 lbs | 3700 | 1.89 | 1001-59B |
| D69420901757 | D694 COVERT | MATTE BLACK | 20X9 | 8X170 | 5.79 | 20mm | 125.1 | 43.67 lbs | 3700 | 1.89 | 1001-60B |
| D69420901750 | D694 COVERT | MATTE BLACK | 20X9 | 8X170 | 5.04 | 1mm | 125.1 | 43.34 lbs | 3700 | 1.84 | 1001-60B |
| D69420901850 | D694 COVERT | MATTE BLACK | 20X9 | 8X180 | 5.04 | 1mm | 124.2 | 43.34 lbs | 3700 | 1.84 | 1003-21B |
| D69420901857 | D694 COVERT | MATTE BLACK | 20X9 | 8X180 | 5.79 | 20mm | 124.2 | 43.67 lbs | 3700 | 1.89 | 1003-21B |
| D69420007547 | D694 COVERT | MATTE BLACK | 20X10 | 5X127 | 4.79 | -18mm | 71.5 | 41.36 lbs | 2500 | 2.46 | 1002-33MB |
| D6942000B547 | D694 COVERT | MATTE BLACK | 20X10 | 5X139.7 | 4.79 | -18mm | 87.1 | 41.36 lbs | 2500 | 2.46 | 1001-61B |
| D69420008947 | D694 COVERT | MATTE BLACK | 20X10 | 6X135 | 4.79 | -18mm | 87.1 | 41.36 lbs | 2500 | 2.46 | 1001-58B |
| D69420008447 | D694 COVERT | MATTE BLACK | 20X10 | 6X139.7 | 4.79 | -18mm | 106.1 | 41.36 lbs | 2500 | 2.46 | 1001-58B |
| D69420008247 | D694 COVERT | MATTE BLACK | 20X10 | 8X165.1 | 4.79 | -18mm | 125.1 | 45.43 lbs | 3700 | 2.46 | 1001-59B |
| D69420001747 | D694 COVERT | MATTE BLACK | 20X10 | 8X170 | 4.79 | -18mm | 125.1 | 45.43 lbs | 3700 | 2.46 | 1001-60B |
| D69420001847 | D694 COVERT | MATTE BLACK | 20X10 | 8X180 | 4.79 | -18mm | 124.2 | 45.43 lbs | 3700 | 2.46 |
1003-21B |
Brixton 4x4 stock a great range of wheels for your 4x4 and SUV vehicles. Checkout our most popular brand wheels, Method Race Wheels, King Offroad Wheels & Fuel Wheels.
Need some other accessories for your offroad 4x4 vehicle visit our 4x4 Accessories page or speak to one of our team via online chat.
This is to be taken as a guide only. We have listed below a few popular vehicle makes with wheel sizes & offsets.
THESE WHEELS MAY FIT OTHER VEHICLES. YOUR VEHICLE MAY ALSO BE ABLE TO FIT OTHER SIZES.
Talk with our online chat if you have quesitons about sizing.
Enter your registration number and state when you place your order and our team will ensure the correct wheel is shipped to fit your vehicle.
| VEHICLE | POPULAR SIZES | POPULAR OFFSET |
| Ford Ranger PX-PXIII No Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 35mm |
| Ford Ranger PX-PXIII With Flares (2011 - 2022) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Ford Ranger Next Gen No Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +30 to 55mm |
| Ford Ranger Next Gen With Flares (2022+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +20 to 30mm |
| Isuzu D-Max (2012 - 2020) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Isuzu D-Max (2021+) |
18x8, 18x8.5, 18x9, 20x9 | +10 to 25mm |
| Mazda BT50 (2011 - 2020) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Mazda BT50 (2020+) |
17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 19x8.5 | +30 to 33mm |
| Mitsubishi Triton MQ (2015 - 2018) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 35mm |
| Mitsubishi Triton MR (2018+) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +18 to 35mm |
| Nissan Navara D22 Series 1 (2000 - 2015) |
16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5 | +30 to 40mm |
| Nissan Navara D23 Series 3 - Cab Chassis (2015+) |
16x7 | +30 to 45mm |
| Nissan Navara D23 Series 3 - Dual Cab (2015+) |
16x7, 16x8, 17x7, 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +30 to 35mm |
| Toyota Hilux N70 KUN Facelift No Flares (2011 - 2015) |
15x6.5, 16x7 | +30 to 40mm |
| Toyota Hilux N80 GUN Revo (2015 - 2022) |
18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +15 to 30mm |
| Toyota LandCruiser 200 Series | 17x8, 17x8.5, 17x9, 18x8, 18x8.5, 18x9 | +35mm |
| Toyota LandCruiser 300 Series | 17x18x8, 18x8.5, 18x9, 20x8.5, 20x9 | +35 to 40mm |
| Volkswagen Amarok (2011+) |
16x8,17x8, 17x8.5, 18x8, 18x8.5 | +30 to 40mm |
Wheel Offset is the clearance between the inside of the wheel and the strut housing. It will also show how far the outside of the wheel edge will extend or retract. If you reduce the inner clearance too much or push the wheel out too far, the tire might rub or not fit at all. This calculator is for information purposes only and we do not guarantee fitment based on this calculator alone.
You can also try using this free online WHEEL CALCUALTOR.
Our team are also available on online chat during business hours to assist in choosing the correct size wheel for your vehicle.
Checkout our range online or chat with our team via online chat if you need help choosing the right size.
Our range includes Ford Ranger wheel rims, Toyota Hilux wheel rims, VW Amarok wheel rims, Mazda BT50 wheel rims, Isuzu Dmax & MUX wheel rims, and many more.
